wireless video Monitor camera parking system /IR Reverse Rearview Camera with 4.3 TFT LCD monitor+video 4 sensor radar parking

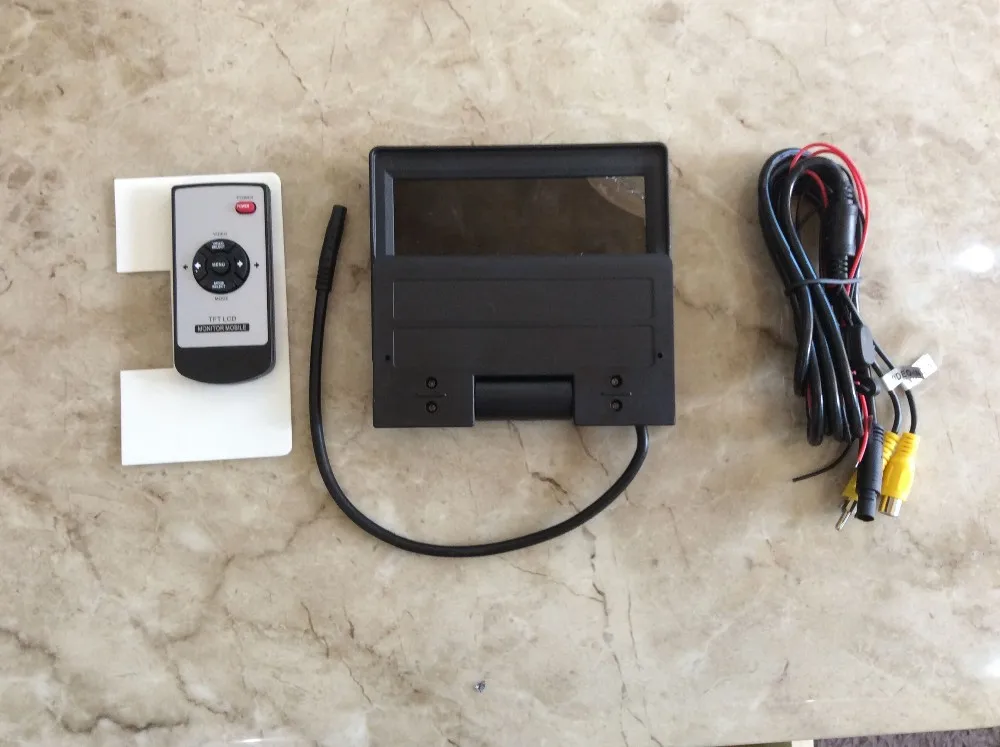

what you will get?
>1 monitor(auto electrical flip monitor)
>2 camera(HD led camera)
>3 wireless parking sensor with 4 sensor

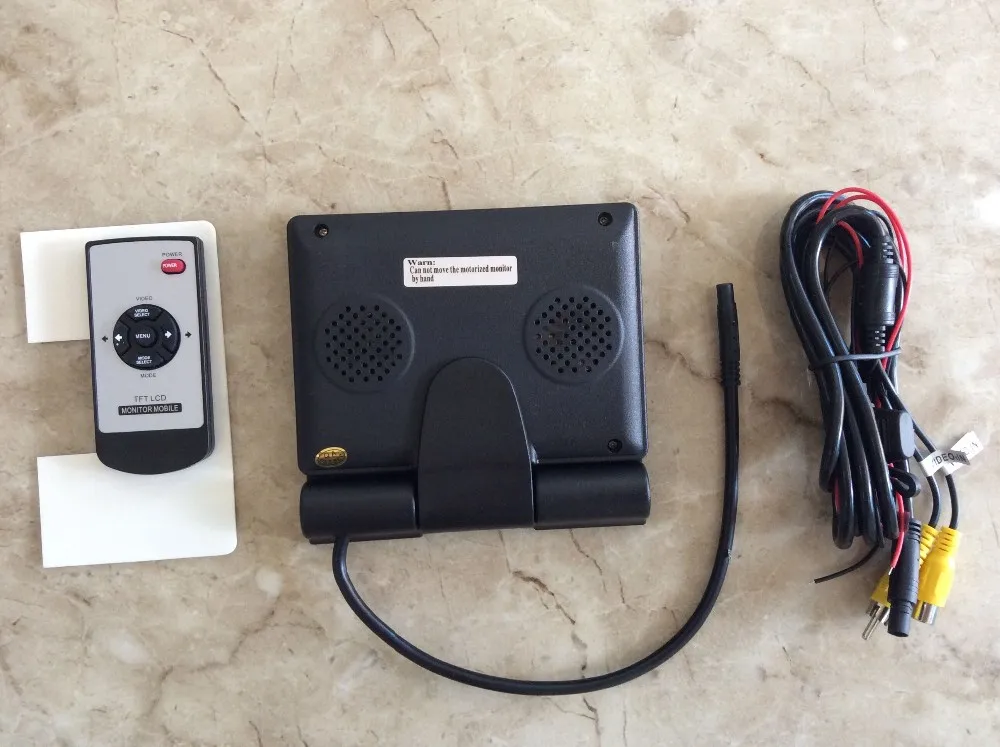

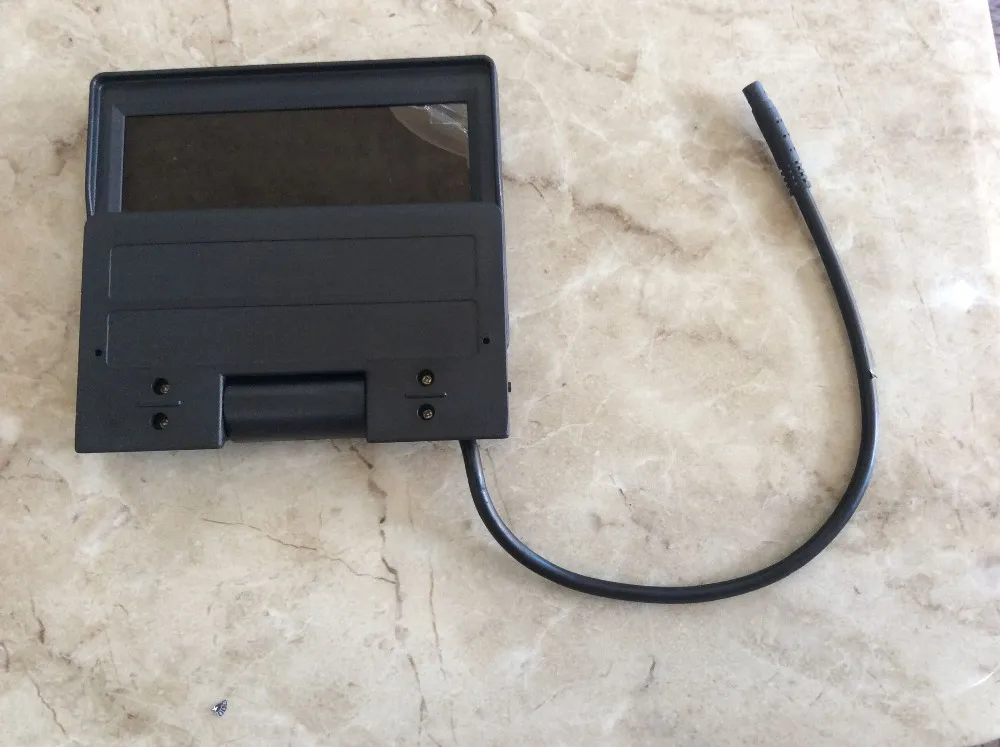

Monitor
On-dash 5 inch Car Parking Monitor can be installed in any car due to universal stand. It\'s compatible with any Rearview Camera with RCA Video interface. It also has the second Video-in for other source connection (Car DVR or other). Simple and reliable device for your convenient parking.

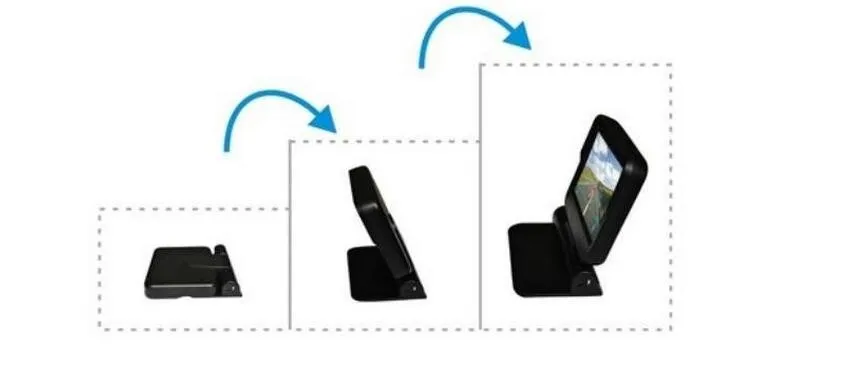

Automatic opening / closing of the screen occurs when you turn on / off the rear view camera.

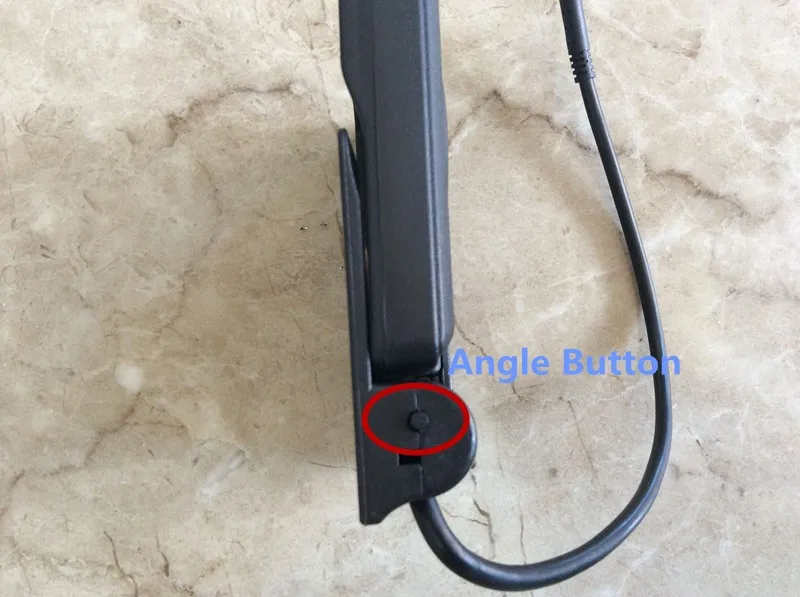

Setup button tilt angle with memory function.
Setting off delay (0/10/20/30 seconds).

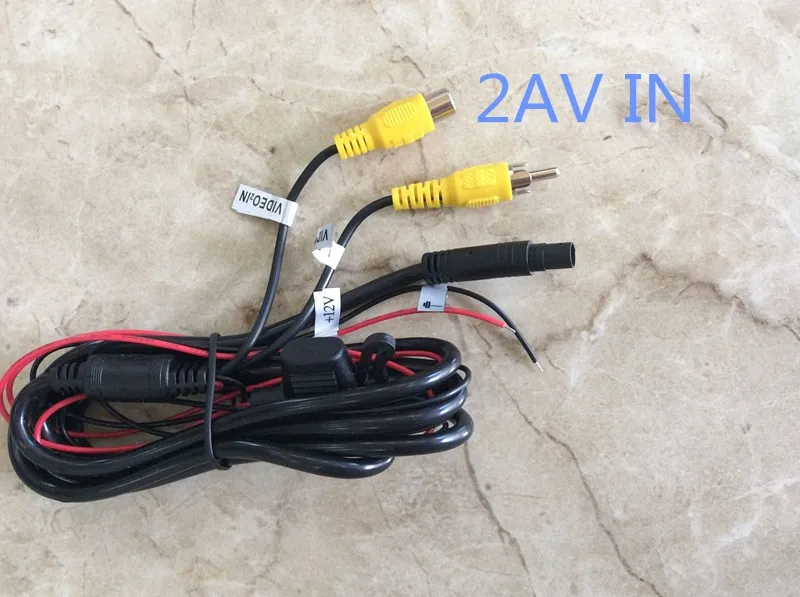

Interfaces: Video2 IN to connect a rear view camera. Video1 IN for other video sources (video recorder, DVD, etc.).
Universal mounting 3M double sided tape on the dashboard.
Ideal for use with any parking camera rear view.
Featurer :

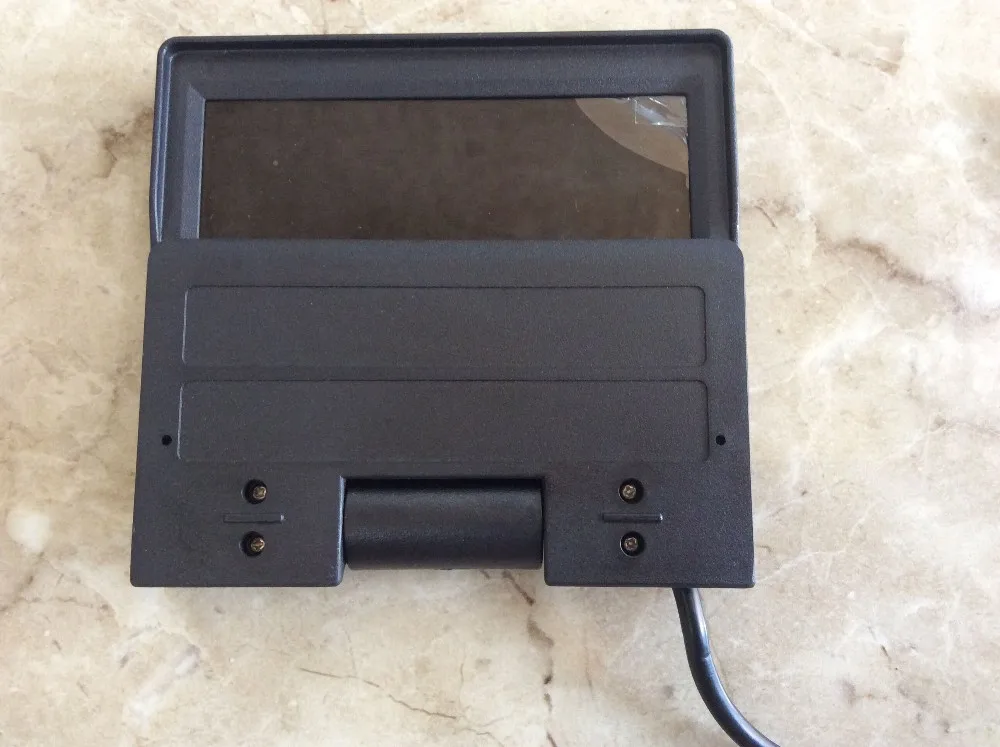

5" Car motorized monitor
1. 5" motorized monitor, flip up mount or roof mount available
2. Slim and creative design, with mechanism to avoid hand move damage
3. Resolution: 800*RGB*480
4. Dual video inputs, AV2 is priority
5. PAL & NTSC auto-switching
6. Automatic activation when you select reverse gear
7. Motorize the display open and close by video signal detection
8. Power supply: DC12V (Heavy duty version available for option)
9. Power memory functions; supports reverse flip down delay 30 seconds

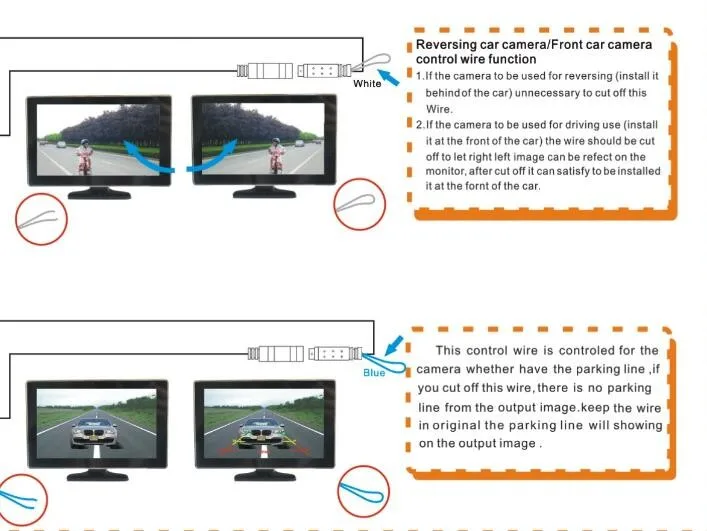

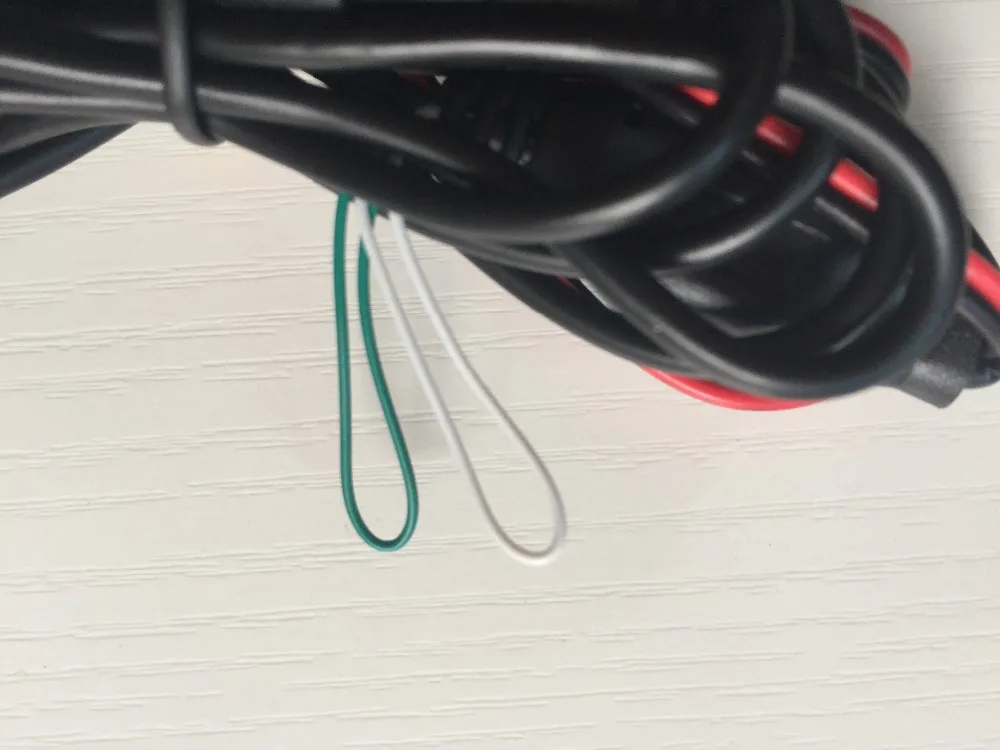

10. Guide line on/off feature

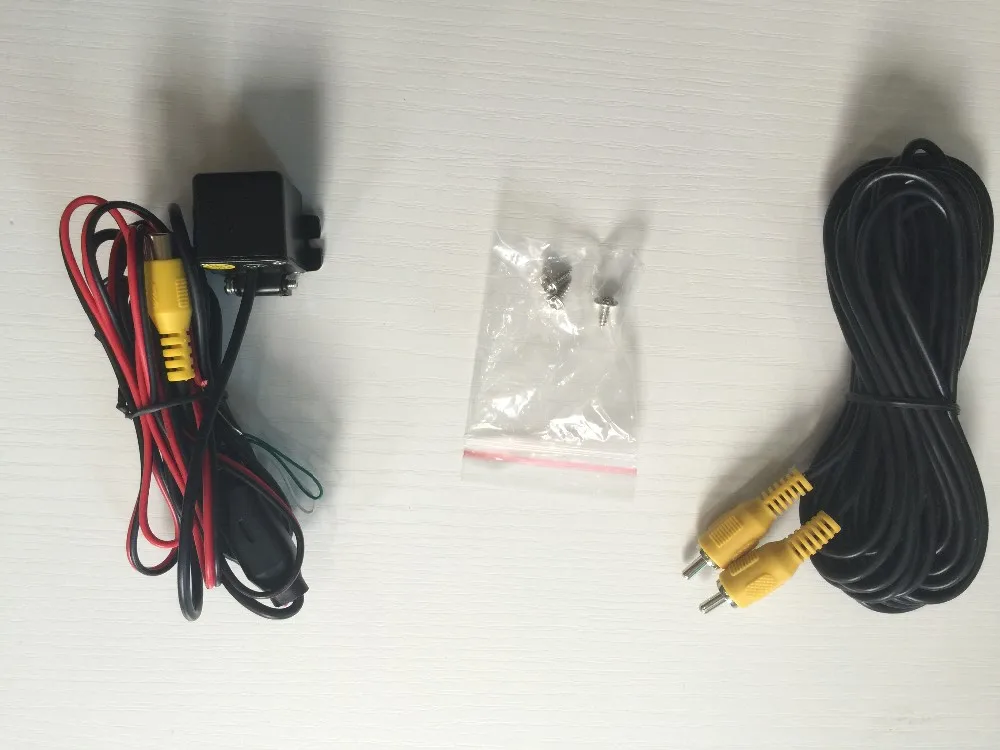

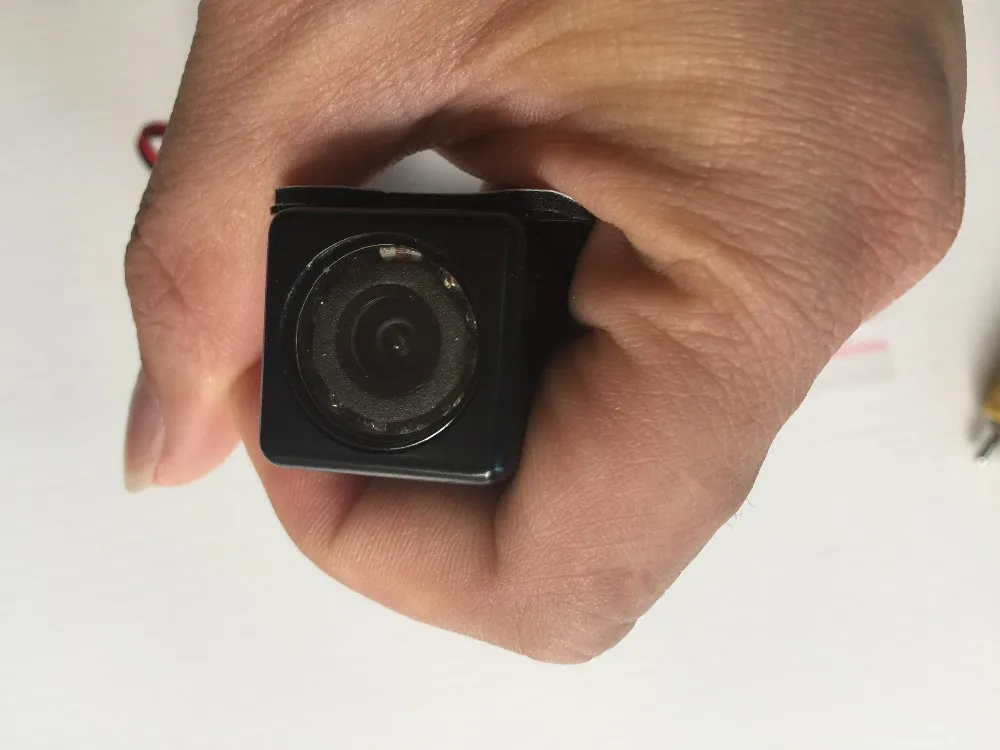

Camera





Image Sensor | 1/4 " Color CMOS PC1030 |
TV system | PAL/NTSC |
Horizontal Resolution | 420 TV lines |
Effective pixels | 648*488 pixels |
Sensing Area | 4.08 mm *3.12 mm |
Night vision+Waterproof+Parking line | YES |
Video cable length | 6 Meter |
Shutter Speed | 1/60-1/5000 |
Video Out | 1.0 VP-P,75 OHM |
Gamma | 0.45 |
AGC/BLC | Auto |
Lens Viewing Angle | 135 degrees |
Waterproof Level | IP67~68 |
Minimum illumination | 0.1 Lux/F=1.2(0 Lux with IR on) |
Power Supply | DC 12V |
wireless Packing sensor
