HDMI Game Capture Card USB 3.0 HD Video 1080P 60FPS, Live Streaming Game Recorder Device Compatible with PS4, Xbox One,Wii U e

HDMI Game Capture Card USB 3.0 HD Video 1080P 60FPS, Live Streaming Game Recorder Device Compatible with PS4, Xbox One,Wii U e
  • Продавецwww.flimmer.com
  • Список ценUS $73.08piece
  • Продажная ценаUS $73.08piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (233)

Oписание продукта

RM5047170688937199


Product Features:


SDI and HDMI input, 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually.

Directly save HD video to USB flash or HDD or SD Card (these accessories are not included)

With SDI and HDMI input and output pass through.

With remote control, you can operate with remote. Also with a  remote expand cable, so can set the device inside a metal case and can remote control it at same time.

Remarks: to the video source selection,can get functions only through remote control,and to the snapshot function,also can get functions with remote control and when you prevideo video only,only at recording.


Specifications:


Support Live Streaming to upload to YOUTUBE for Windows for OBS STUDIO,Cannot use for other systems

1. SDI and HDMI input, 1080P recording with one click, no PC required.
2. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc.
3. Remote control with ScreenShot button.
4. Passthrough function, you can continue to play or watch while recording.

NOTE: please note that you can NOT play recorder videos on this device, you can ONLY record to your storage device (USB key, hard drive), to play the recorded files, you need to take your storage media out of the device to a computer or media player.



Package Include:

1 x Ezcap 286 HD Video Capture in set

The remote contorl battery is not included
NO Retail Package,we will pack very safely .



A (5)




QQ20170224113121

QQ20170224113008

QQ20170224112910

QQ20170224112857

QQ20170224113002

QQ20170224113142 -






Attention:  if you need use our software (in CD) to edit the video, pls refer to following picture,
pls don\'t print the wrong license number.
such as : Some customers entered U as V, Z as 2, 1 as L, B as 8, 5 as S etc.


1





2522194543_869224906

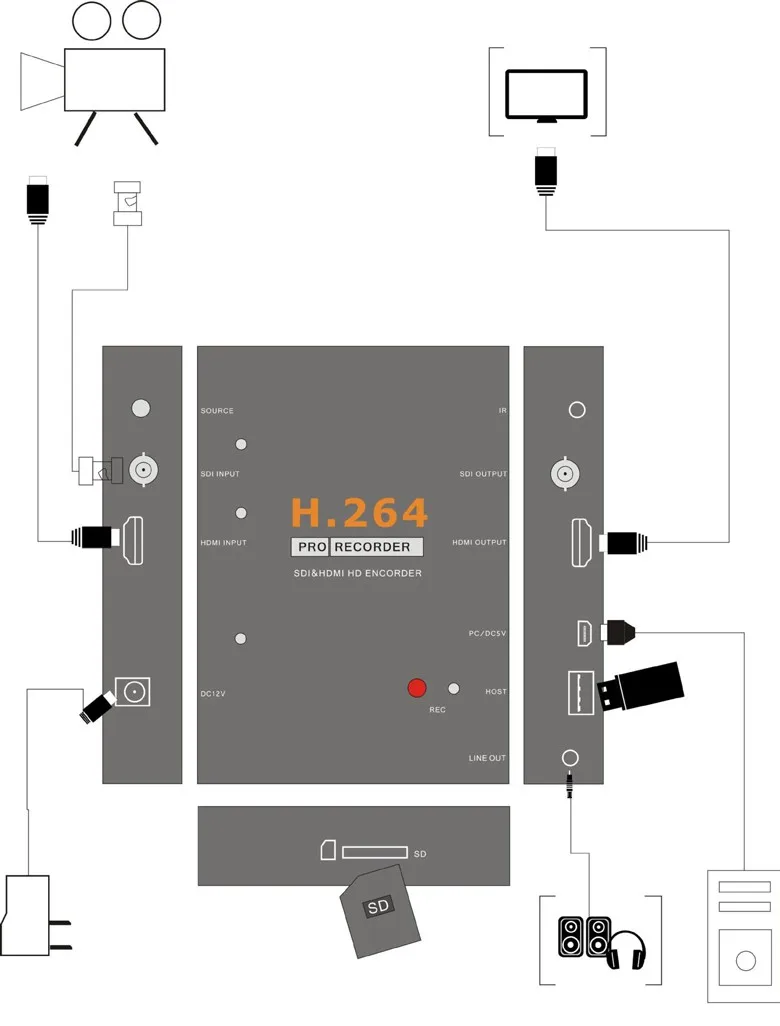

Connections
Interface USB 2.0 Host
Video Input HDMI, SDI
Audio Input

HDMI, SDI

Input : Embedded Audio

Output : Embedded Audio and Analog audio

Video Output Digital: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)

Applicable Connections with Game Consoles
HDMI Industry HD camera, HD Medical endoscope, TV, gameplay, etc
SDI HD camera, HD Medical endoscope
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec  Hardware MPEG4 encoder
User Interface Record button, 720p/1080p switch button, source change button.
LED indicator for working status.
3.5mm expand port for remote controller


Package Contents
Deviceezcap286 HD Video Capture
Others DC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage Media USB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
ResolutionInput / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record Format Video: MP4, Audio: AAC Stereo
Record Quality Max: 18Mbps@1080P 30fps
Record File Max: 2GB / Per File, With RTC (Real Time Clock)
Record Place Max: 140MB / Minute, 8.4GB / Hour
Power Supply USB DC 12V / 3A

Applications
SoftwareArcsoft Showbiz
Video Editing Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating System Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPU Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics Card

VGA card with support for DirectX 10.0c or above
