1080P Aptina AR0331 H.264 MJPEG UVC Windows Linux Android Mac Plug Play Driverless CS Mount 5 50mm Varifocal lens WDR USB Camera

1080P Aptina AR0331 H.264 MJPEG UVC Windows Linux Android Mac Plug Play Driverless CS Mount 5 50mm Varifocal lens WDR USB Camera
  • Продавецwww.flimmer.com
  • Список ценUS $96.90piece
  • Продажная ценаUS $96.90piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (721)

Oписание продукта



WDR 3mp /2mp H.264/MJPEG/YUY2 USB2.0 Aptina AR0331 wide angle 2.9mm lens USB 2.0  cmos board webcam usb camera module WDR



Package includes:



1) 1PC 2mp H.264 usb wdr camera with 2.9mm lens

2) 1PC 1m usb cable



Advantage of usb camera:

1)The HD 1080P USB CMOS board camera module is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.

2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.



Main Specifications

Model ELP-USB3MP01H-L29

Sensor AR0331

Lens Size 1/3 inch

Pixel Size 2.2um X2.2um

Max. Resolution 1920(H)X1080(V)

Compression format H264 /MJPEG / YUV2(YUYV)

Resolution & frame H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps

MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@

30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps

YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@

5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps

S/N Ratio 39dB

Dynamic Range Up to 100 dB

Responsivity 2.0 V/lux-sec

Mini illumination 0. 05lux

Shutter Type Electronic rolling shutter and GRR

Connecting Port type USB2.0 High Speed

Free Drive Protocol USB Video Class(UVC)

Support OTG Protocol USB2.0 OTG

AEC Support

AEB Support

AGC Support

Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Lens Parameter Standard 2.9mm, optional 3.7mm/FOV(D)80 Degree No distortion LENS

Digital audio High quality digital MIC, support single, dual channel

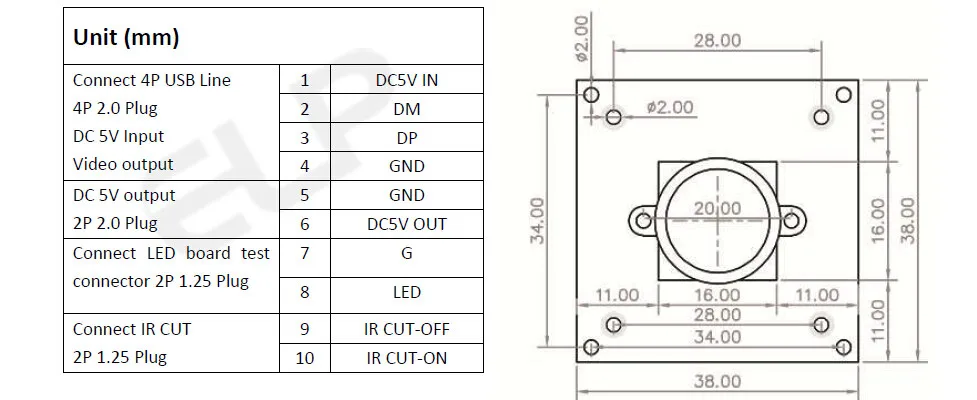

IR CUT Connector Support 2P-1.25mm socket

LED board power connector Support 2P-2.0mm socket

Power supply USB BUS POWER 4P-2.0mm socket

Power supply DC5V

Operating Voltage 140mA~200mA

Working current -10- 70 degree

Working temperature -20-85degree

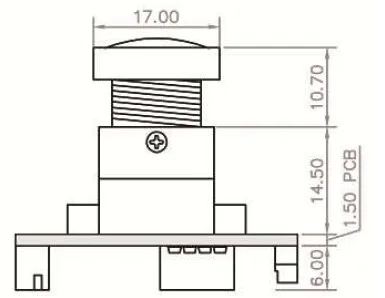

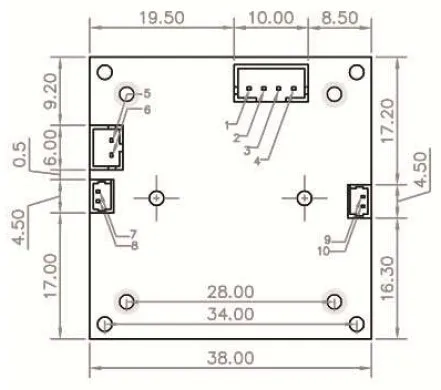

Board size /Weight 38X38mm/ about 30g

Cable Standard 1M / optional 2M,3M,5M

Operating system request Win7 Win8 Win10 Win11

Linux 2.6 or above

Android 4.0 or above

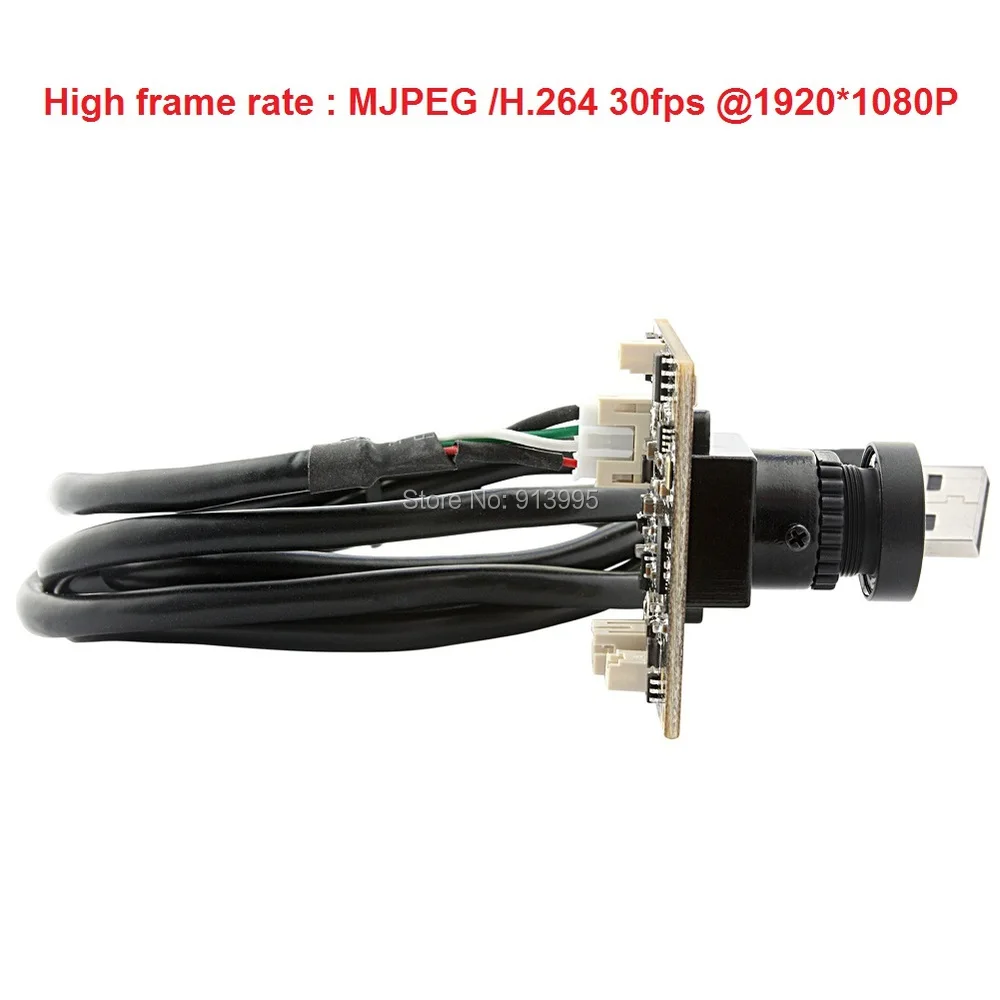

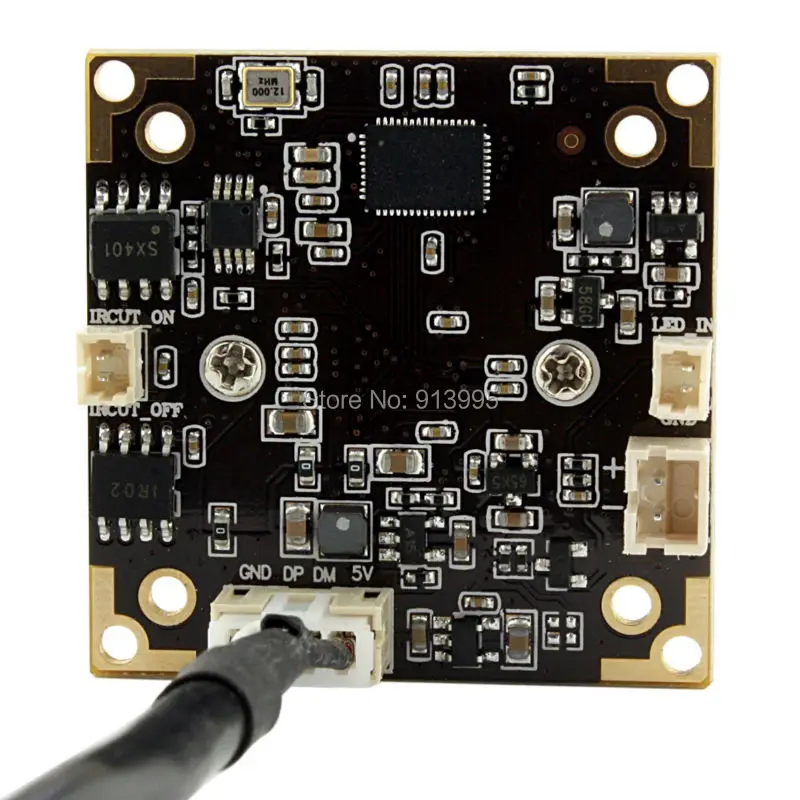

Products display:

IMG_3224IMG_3208IMG_3221IMG_3230IMG_3215IMG_3213IMG_3217IMG_3218





L29L29-1L29-2







2MP usb camera paper picture:

2MP USB Camera equiped with 45 degree lens and 2048x1536 resolution OV5640 01



Outdoor true and undistorted color image:



2MP USB Camera outdoor resolution



Specially designed Packing for usb cameras:

usb packing
