Oписание продукта

Welcome to Our Store, Customer First!

Description:

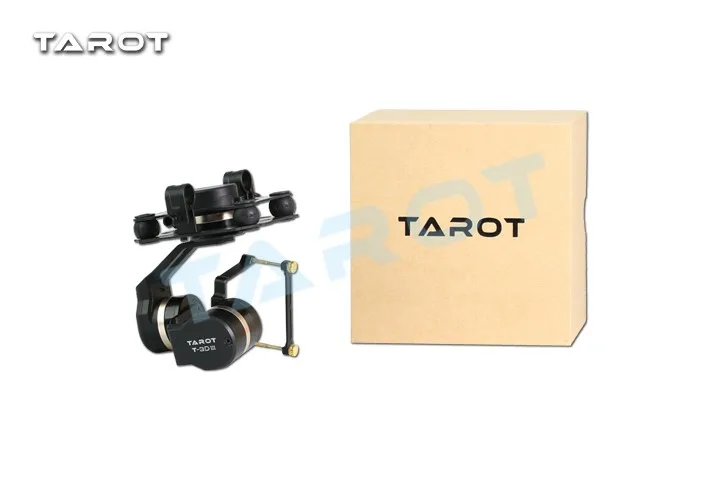

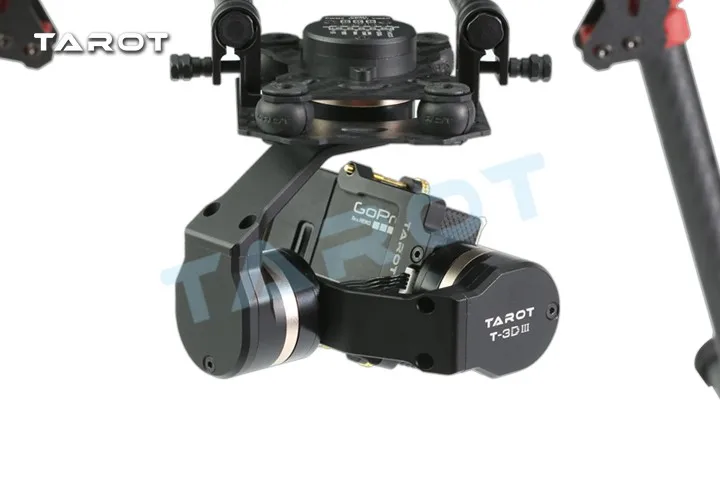

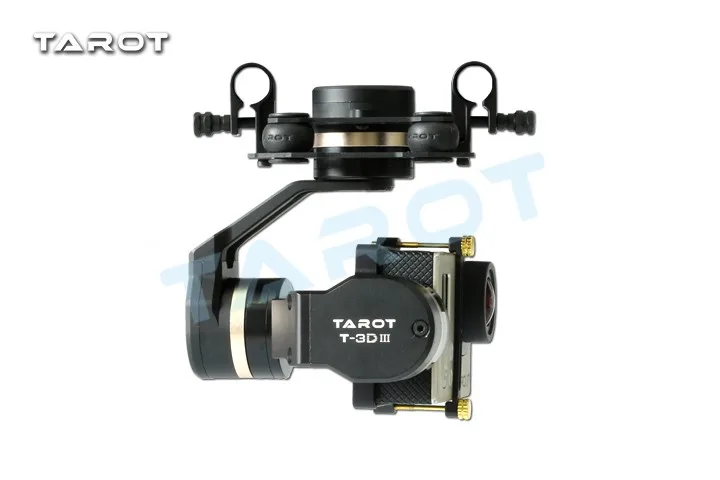

  • Tarot GOPRO 3D III metal three-axis head designed for GOPRO HERO 3/3 + / 4 camera customized, integrated TAROT series PTZ all high-end technology, with full CNC processed, bringing lightweight and high stability, helping to output nice image. Tarot GOPRO 3DIII metal 3-axis gimbal is with built-in TAROT servo driven module, supports AL/PF/FPV mode.
  • Mechanical / electronic specifications
  • Applicable Camera Type: GOPRO HERO 3/3 + / 4
  • Input Power: 3S-6S Li (11V-26V)
  • Operating Current: 30mA ( 25V) / 50mA ( 12V)
  • Stall Current: 350mA ( 25V) / 700mA ( 12V)
  • Attitude control accuracy: ± 0.02 degrees
  • Maximum controllable speed
  • The direction of rotation (PAN): ± 200 ° / s
  • Pitch direction (TILT): ± 200 ° / s
  • Roll direction (ROLL): ± 200 ° / s
  • The controllable range of rotation
  • The direction of rotation (PAN): ± 330 °
  • Pitch direction (TILT): -135 ° to + 45 °
  • Roll direction (ROLL): ± 48 °
  • S-Bus / PPM / DSM receiver supports
  • Working temperature: -20 ¢J ~ + 50 ¢J
  • Maximum dimensions (LWH): 60 mm * 75 mm * 100mm
  • Assistant Software Installation Requirements
  • Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
  • China patent number : 2014201546579
specification:
​NO have camera!
  • 3-axis metal gimbal 160 g x1
  • PTZ control module (36x25x11MM) x1
  • 8P main controller-gimbal cable x1
  • 5V output, the receiver and video cable x1
  • USB module (27x21x7MM) x1
  • Flight control cable x1
  • Manual x1
  • Box x1
  •

43bo1511.5ys

05770179-c564-4012-8199-6282d29a0b41

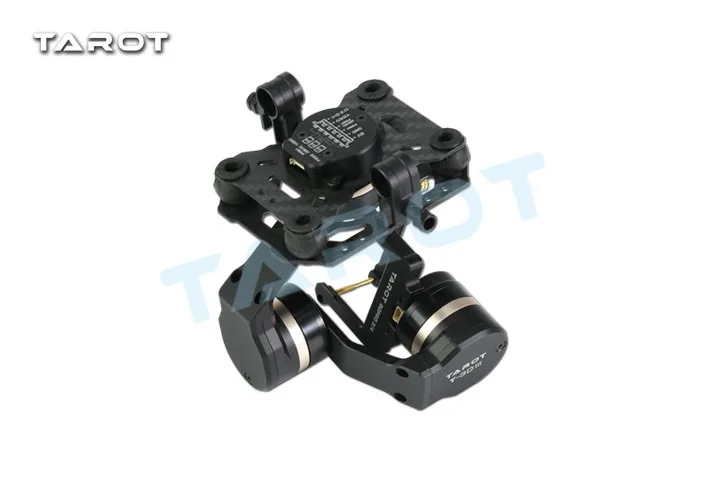

Designed based on T-3D gimbal

bdb85171-5822-4a39-a162-419037af5a46

0a594e7b-13d5-49a0-8294-32149c95671d

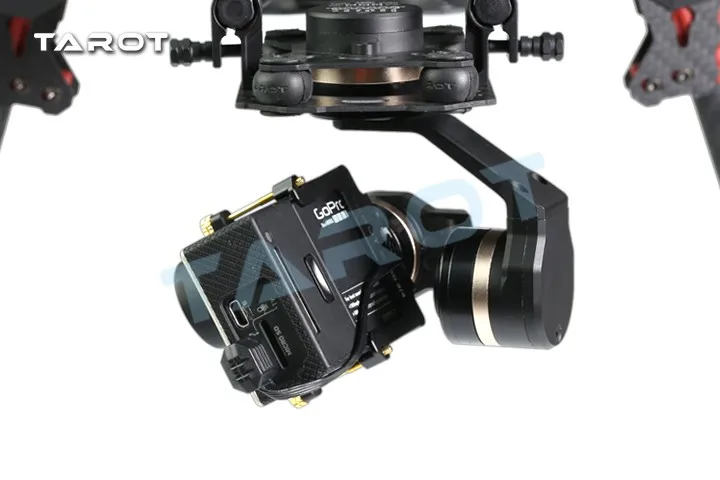

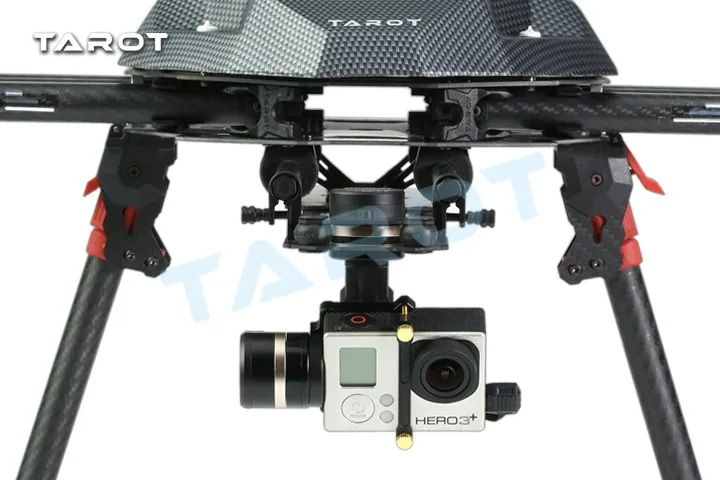

Developed for GoPro. Quick installation

1387ee03-2e20-46dc-b24f-97fe2f7d8788

Accurate control for vivid image

75177eb3-7e30-418f-89a1-2af3904ba7c8

Each axis speed is controllable

9ee52179-7ccb-4633-a5e5-3506a4179f15

Supports AL/PF/FPV mode

7adfc3e3-34c2-4514-802c-ae7d9a106a6b

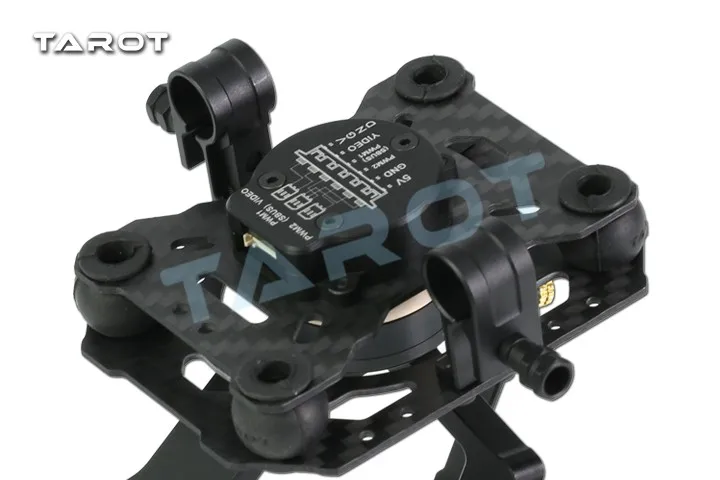

With built-in TAROT servo driven module

4209589d-2781-4b31-85bf-7e806a8b5b41
