CNC Router Simple 100KHz 5 Axis Mach3 USB Motion Control Card Breakout Board


Package included:

1 x 5 axis Mach3 USB motion controller
1 x USB Cable
1 x CD (Mach3Version3.043.066.exe, English Manual, dll)

Description:

  • NVUM5_SPv1.1 is the 5 axis Mach3 USB motion controller. (We also have NVUM3, NVUM4, NVUM6)
  • It supports Mach3 software and standard MPG.
  • This motion controller adopts the ARM design framework. The ARM design includes communication, codeanalytic, underlying algorithm and pulse generation. Rational design, reliablecontrol, convenient operation.
  • This manual introduces operation, connection and usage schedule of our professional motion controller for engraving machine. Through a lot of the drawing the users can learn quickly how to use this motion controller.

Specification:

1. Support USB;
2. 12 ports photoelectric isolated input interface for ordinary digital data;
3. 10 ports photoelectric isolated output interface for ordinary digital data;
4. 1 port 0-10V spindle speed analog output interface (can change to PWM output); can support 5 axis stepper systems, 200 KHz pulse output for every axis;
5. ARM motion control chip;
6. Main device is 12V-32VDC power supply input; current should higher than 0.5A;
7. Compatible with MPG input, support the digital display MPG from our company

Appearance & Size:

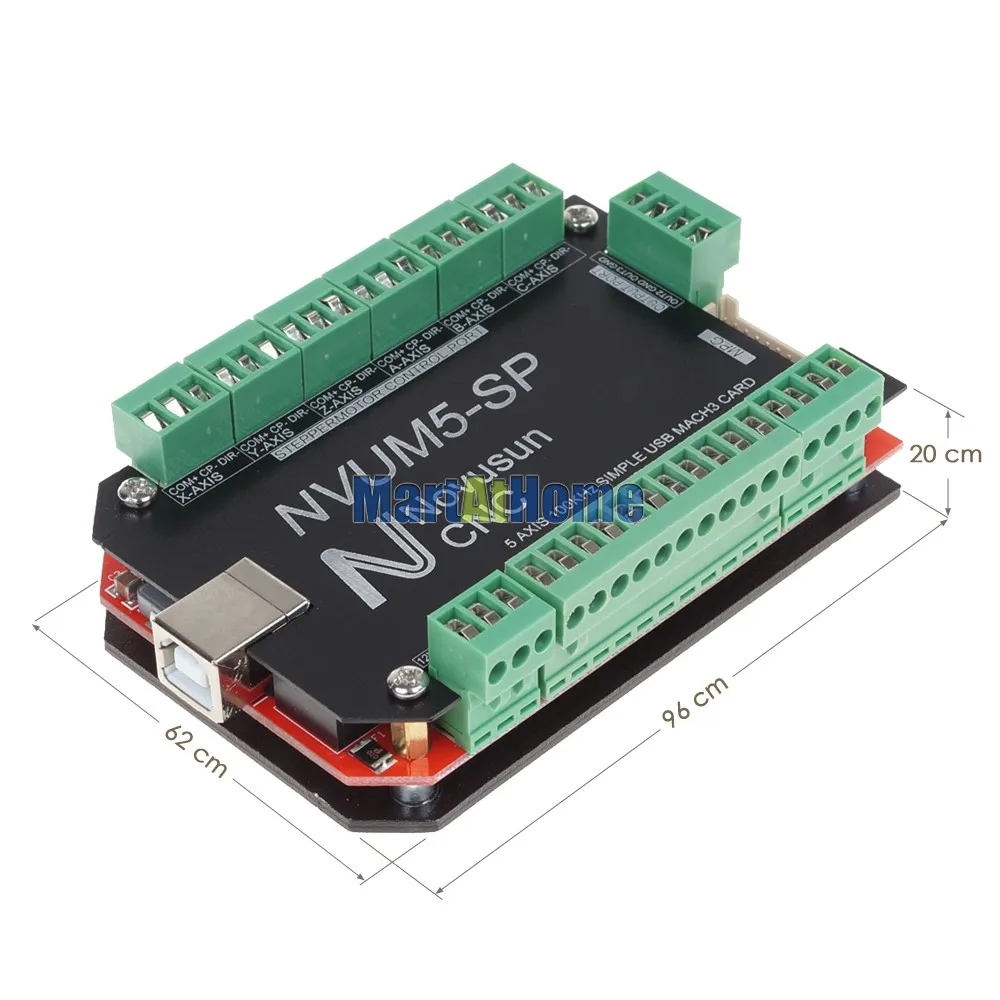

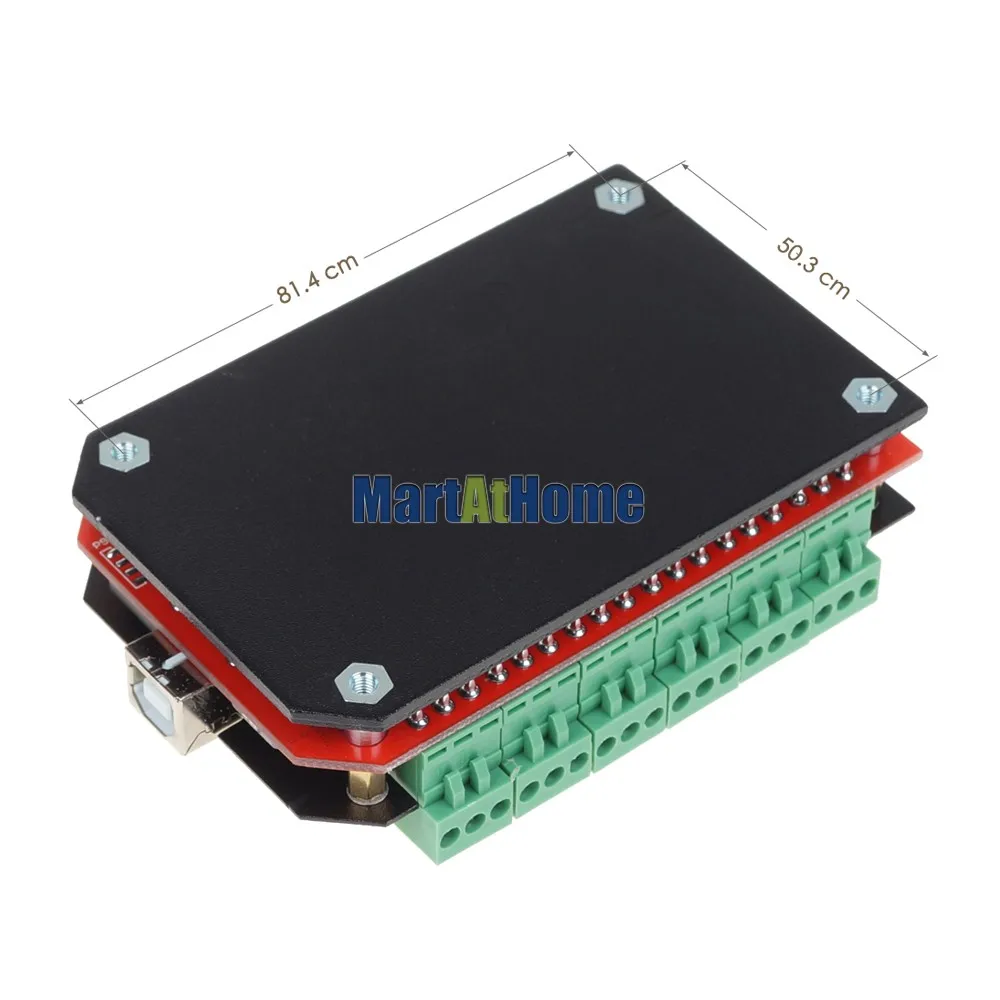

NVUM5_SPv1.1 motion controller is with the sealed shell structure, there are 4 pieces of setting holes at the bottom. We can fix 4 pieces of 4mm diameter holes at the cabinet and install the controller into the cabinet. The controller appearance as the follow figures show:
  • The products overall size is 163.1mm*80.8mm*27.8mm;
  • The bottom install size is 101.4mm*39.5mm


Substantial explanation

When operate the NVUM5_SP, where will be a lot of English abbreviation, now we list all of them for your kindly references:
1. FRO: Feeding adjust: During the operating process, the F value  already set, and need to adjust the current feeding speed, then we can adjust FRO value to realize it.
2. SRO: Spindle speed adjust: During the operating process, the S value already set, and need to adjust the current spindle speed, and then we can adjust SRO value to realize it:
3. Current Speed S#=setting S*SRO.
4. SRJ: speed adjust manually
During the operating process, as the manual speed already set, and we need to adjust the current speed, and impossible to fix the value during it is working, then we can revise the SRJ value to realize it.
Current manual speed FS#=Setting manual speed*SRJ.
5. F: Feedingspeed, the unit is mm/min. For example F=200, means every minute feeding
6. 2000mm.
7. S: Spindle Speed. Unit is rad/min. For example S=20000, means 20000 revolution/Minute.
8. X axis Coordinate
9. Y axis Coordinate
10. Z axis Coordinate
11. A axis Coordinate
12. B axis Coordinate
13. C axis Coordinate
14. Ready: ReadyMode. In the mode we can do any operation, include processing or values modification or starting 2nd mode.
15. Reset: Reset mode. In this mode, it should stop every operation.
16. “Step”: Manual Step Mode. Every axis can donduct the manual step operation at this mode.
17. MPG: MPG mode. Every axis can conduct the MPG operation at this mode.
