NEW 60 LED Rotating Flashing Amber Beacon Flexible Tractor Warning Light Traffic Light Roadway Safety

NEW 60 LED Rotating Flashing Amber Beacon Flexible Tractor Warning Light Traffic Light Roadway Safety
  • Продавецwww.flimmer.com
  • Список ценUS $22.80piece
  • Продажная ценаUS $22.80piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (310)

Oписание продукта



Please remark us the working voltage when you order

12V/24Vdc or 100-240Vac

or we will delivery 100-240 ones

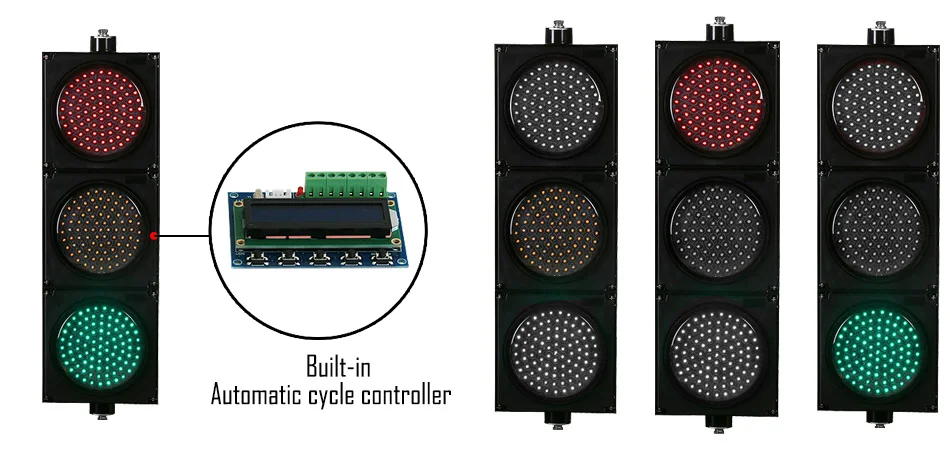

Product name: 300mm Built-in Traffic Controller LED Traffic Signal Light

Features:
  • High brightness LED light source
  • Low energy consumption
  • Long life cycle - more than 80,000 working hours
  • UV-resistant polycarbonate housing
  • Modular design - easy installation and maintenance
  • 100-240VAC universal voltage power input
  • 12-24VDC voltage power input optional
  • Compliance with CE, RoHS, EN12368, ISO9001



Specification:

  • Working voltage:    100-240VAC or 12-24VDC
  • Working temperature:    -50~+70
  • View angle:    L/R 30 degree
  • IP grade:    IP54
  • view distance:    400m
  • Diameter:    300mm
  • Quantity:    168 pcs
  • Wavelength:    500-505 nm Green / 620-630nm Red / 590-595nm Yellow
  • Power consumption:    <12W

Controller setting manual:



1. Long Press “Menu” button for over 3 seconds ,when release ,the screen will go into System setting interface.



2. Screen display : Timer Set:out01

Using the button of “Left” and “Right”,choose the number need to be set

Using the button of “Add “,Decrease “ setting the time for different output light

Each output can be 0-255 seconds



3. Press button of “Menu”,, switch to Flash Set:out01

The flashing time can be set ,the setting process is same as step 2. , if no need flashing ,it can be set as :000



  4. Press button of “Menu” turn to output 2 and 3 ,same as above for setting

3

Dimension:

300-3



Detail pictures:

300mm Auto cycle1



Dimension:

100mm-JD4-G-1_32

Factory pictures:

100mm-JD4-G-1_36HTB1reitXjLuK1Rjy0Fhq6xpdFXakHTB1AEXghgTqK1RjSZPhq6xfOFXawHTB1Zg8dXzzuK1RjSspeq6ziHVXaBHTB1SFNdXyYrK1Rjy0Fdq6ACvVXa7
