LED Solar Warning Light / car burst flash warning lights / traffic and road safety warning lights Marine Safety Beacon Light

LED Solar Warning Light / car burst flash warning lights / traffic and road safety warning lights Marine Safety Beacon Light
  • Продавецwww.flimmer.com
  • Список ценUS $23.99piece
  • Продажная ценаUS $23.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (342)

Oписание продукта

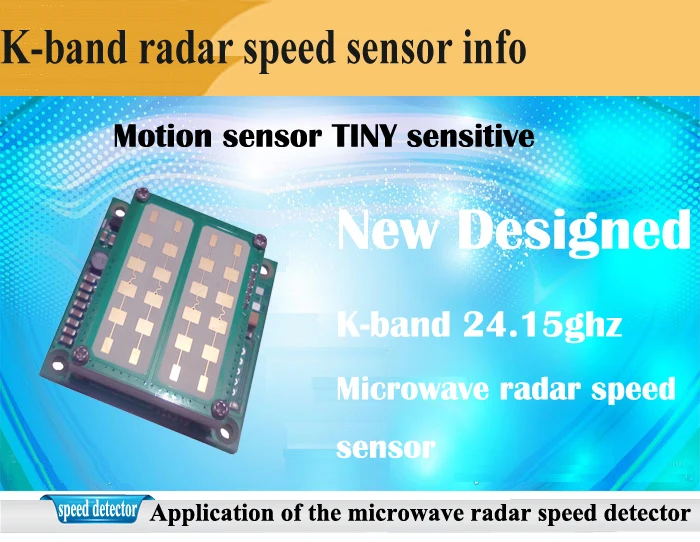

     Traffic light led lights 24ghz k band FSK/CW radar speed detector widely used in vehicle speed inspection industry, it is k-band microwave radar, volume miniaturization is only 5x5x2.2cm, easy installation and simple working environment.

     Various power supply DC 9-24V, low power consumption, high precision sensitivity target detect, can detect moving vehicle  both large vehicle and cars from far more than 100meter away.
It is able to distinguish the moving direction come/go/turn of cars in lanes as the speed inspection function working.


Typical application
of Traffic light led lights 24ghz k band FSK/CW radar speed detector:


vehicle overspeed led speed warning display in roadway and highway.

security intrusion detection.




02-


Traffic light led lights 24ghz k band FSK/CW radar speed detector



 application photos in urban street as follow:






03

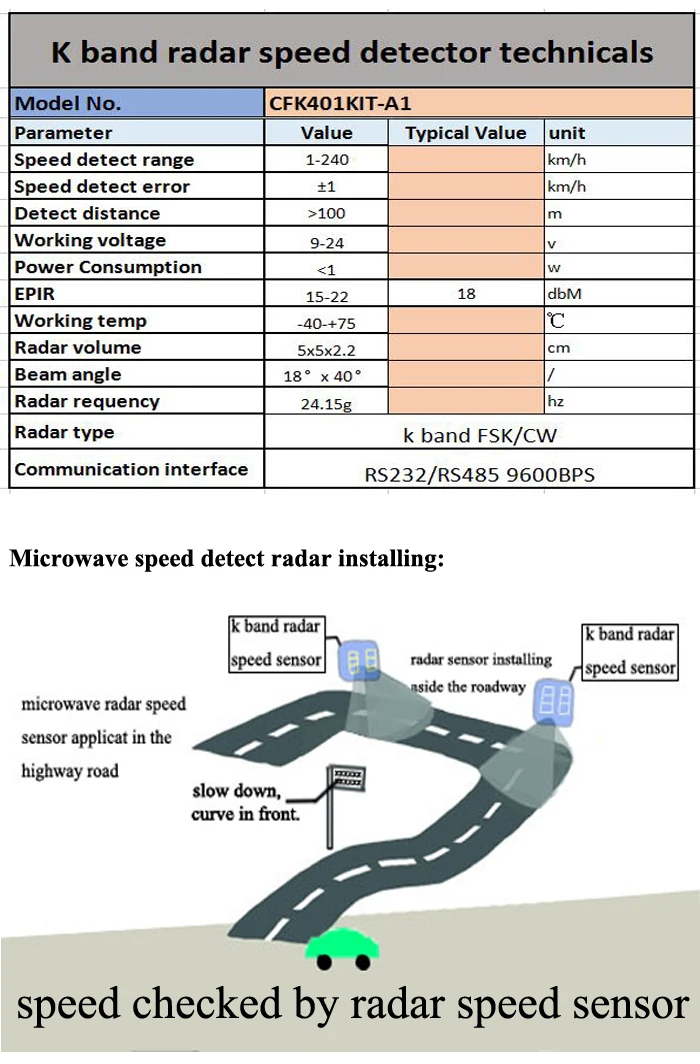

Traffic light led lights 24ghz k band FSK/CW radar speed detector functions:


     Moving target (come/go) direction recognition. The direction distinguish will not work when there are more than two moving targets.

     The range of speed measurement value: 1km/h - 240km/h, the speed measurement error ≤ ±1km/h, that invalid as it is null angle between moving direction and radar beam azimuth.



04



PIN foot definition:

1: V-----power input (positive pole) VIN DC 9-24V

2: G-----power input ground (negative pole)

3: G-----RS232 ground

4: R-----RS232 receive

5: T-----RS232 send

6: G-----RS485 ground

7: B-----RS485 signal B

8: A-----RS485 signal A
