2.2KW milling cnc machine 6040 ER11 collet cnc engraving machine wood router 1500W VFD water cooling spindle

2.2KW milling cnc machine 6040 ER11 collet cnc engraving machine wood router 1500W VFD water cooling spindle
  • Продавецwww.flimmer.com
  • Список ценUS $1161.11piece
  • Продажная ценаUS $1161.11piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (559)

Oписание продукта



Linear guideway Router Engraver 1500W CNC 3040L Parallel Port 3Axis Metal Engraving Milling Machine



Introduction

The CNC 3040 Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts.

Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the CNC 3040 is a great fit.

We look forward, CNC 3040F will become your good helper

In addition, it can be upgraded to be installed a rotational axis.

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warrant



Technical Parameters

CNC 3040L parallel 3axis engraving machine part parameters:

Voltage

  220V

Spindle motor

  1500W / 80mm / Water cooling

Maximum operating frequency

  400HZ

Radial runout

  0.01mm

Collet type

 ER11,1/8"(3.175mm) Collet

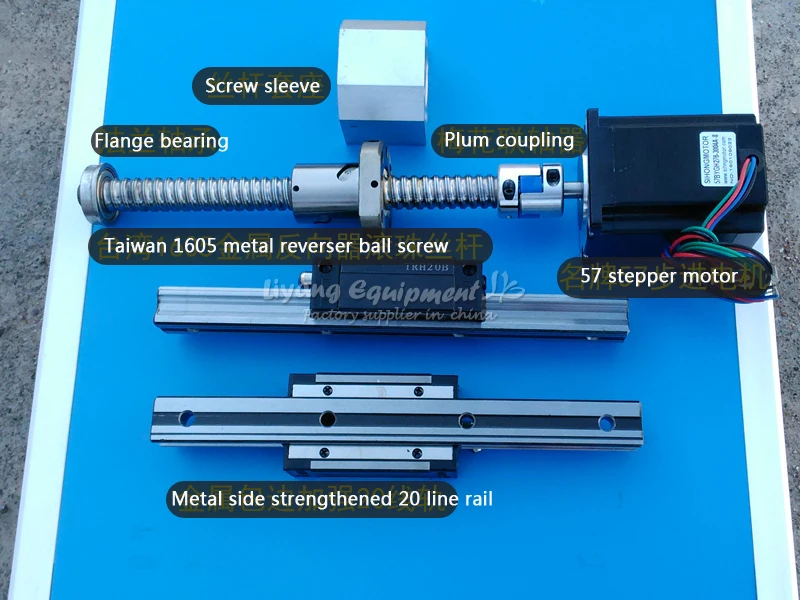

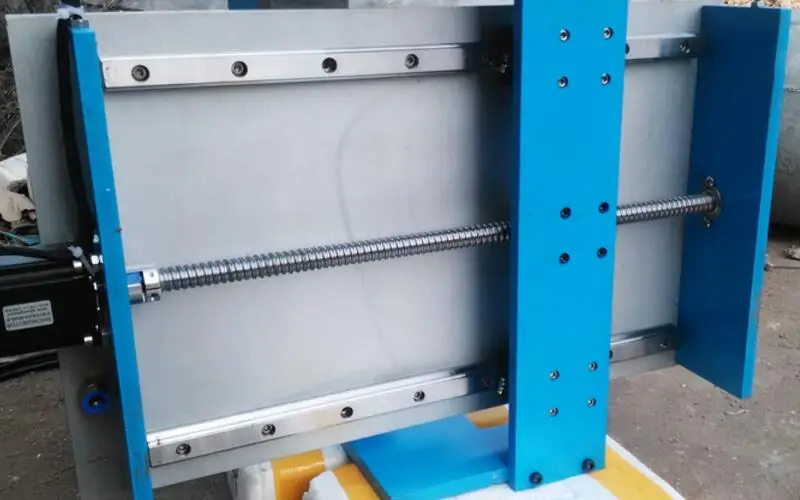

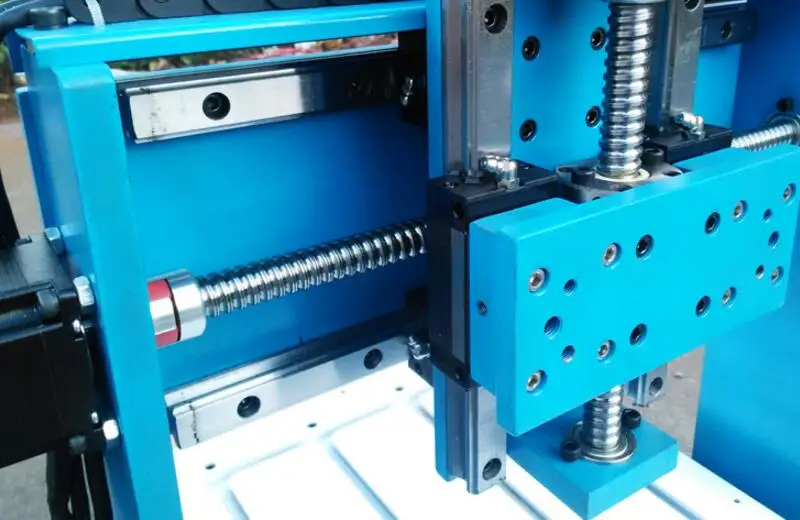

Track type

  Square line rail track(linear guideway) three-axis is 20 mm square wire track, high precision, high strength, top configuration.

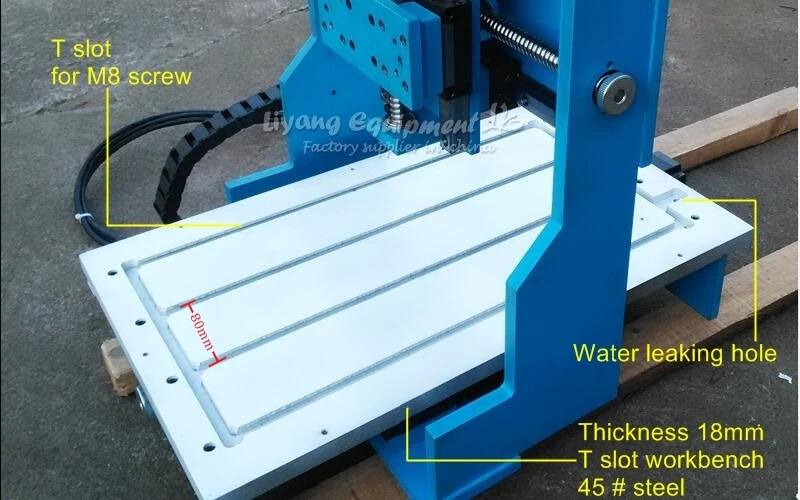

Table

  18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm.

Work table size

  330*540mm

Working stroke

  260*380*120mm

Type of screw

  Ball screw 1605

Weight

  95KG

Package size

  550*660*600mm

Stepper motor and drive

 two-phase hybrid stepping motor ,1.8A/PHASE,40N.cm, 8 segments drive.

Maximum operating speed

 4000mm/min (Engraving speed : 300-3000mm/min)

Communication interface

 Parallel port

Software Compatability

 Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code

 G code/

nc/.ncc/.tab/.txt

Can add the 4th axis



The information as below:



Rotation Axis (4th axis) specs:

(For optional , not included in 3axis Machine !)

For three-jaw Chuck, fourth axis and thimbles, precision worm gear reducer 20:1 rotation, adding to the three shafts used on machines, Chuck type model 80, the biggest blessing to 63 mm diameter, maximum turning diameter 140 mm, 57 stepper motor with worm gearbox, torque, suitable for machining hard products, is high-rotation axis. Round three-dimension carving a maximum diameter of 14 cm, model 3040, 28 cm in length, 4060 model 50 cm, 6090 model 80 cm



Packing list:

1× CNC 3040 engraving machine

1× Control box

1× Parallel port cable 25pin

1× Power cable

1× Tool box and tools

3× Axis motors

2× Water pump

1× Mach3 handwheel

1× CD of manual and software MACH3

buyerCEcompanyCNC 3040L 3axis (1)CNC 3040L 3axis (2)CNC 3040L 3axis (0)CNC 3040L 3axis (1)CNC 3040L 3axis (2)CNC 3040L 3axis (3)CNC 3040L 3axis (4)CNC 3040L 3axis (5)CNC 3040L 3axis (6)CNC 3040L 3axis (7)CNC 3040L 3axis (8)CNC 3040L 3axis (9)


CNC Youtube Video Followed:
if you want to get more video links and manual,software of this machine,please feel free to contact us.

Engraving wood      https://www.youtube.com/watch?v=_iEEWJJTNNk&feature=youtu.be
Engraving circuit board      https://www.youtube.com/watch?v=i-8tM9fRxso&feature=youtu.be
Engraving Aluminum plate     https://www.youtube.com/watch?v=4mNdD3NVAOQ&feature=youtu.be
Engraving Metal plate     https://www.youtube.com/watch?v=o8ruK9dQ8NM&feature=youtu.be
Engraving MDF     https://youtu.be/GCNziTZ0jvU
Buddha engrave on metal     https://www.youtube.com/watch?v=hdJb7L3eETY&feature=youtu.be
5Axis Engraving     https://www.youtube.com/watch?v=TU1_IuhiO8o&feature=youtu.be
Engraving Stainless steel     https://youtu.be/ZxWWaYl55i8



Buyer Notice:

1.  Please be sure that the address you give is correct.If the address is incorrect, the parcel fail to delivery and is sent back to the seller ,the buyer should pay for the first and returning shipping fees.

The machine will sent out in about 2-7days after you place the order,because we need to test the machine and prepare shipping documents!(Except Holiday)
-  It-em shipped from China Mainland by EMS,UPS,DHL,TNT,Fedex,SF.
- Delivery time depends on destination and other factors, it may takes up to 5-15 business days.
- If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.(The buyer from Brazil and Argentina should provide the VAT number when you order.)
if some customer refuse to pick up the machine, we will not refund the payment!



2. About Russia,Belarus and UKraine "Seller\'s Shipping Method",Free tax. The goods will be transported to the city of the buyer(The capital of Ukraine and the capital of Belarus), and the buyer will be required to extract the goods. Shipping time about 40-55 days.



3. The Other country Seller\'s Shipping Method means by sea to basic sea port of your country not to your door, It is CIF term, if ship by sea we can provide the B/L, invoice, packing list and send you with free courier cost, if need other documents, buyer should pay, we can assit you to arrange.buyer should pay surcharge of harbour, handling charges and clear custom and pay import duty. Hope buyers can check the total cost before place the order.

When the machine arrive the harbour as we confirmed before shipping, please pick up the machine from the warehouse in the harbour soon, if some customer refuse to pick up the machine from the warehouse, we will not refund the payment!
