Hot Sales ZTE F660 GPON ONT  4 LAN + 2 Voice + WIFI+USB GPON 3.0 version Optical Network Terminal English version

Product Description

ZTE GPON ONU ZXA10 F660 FTTO or FTTH ONT with 4 LAN + 2 Voice + WIFI+USB.

English Firmware, English QIG, English LED mark, Support SIP VOIP protocol, With

DHCP function, Support multiple users.

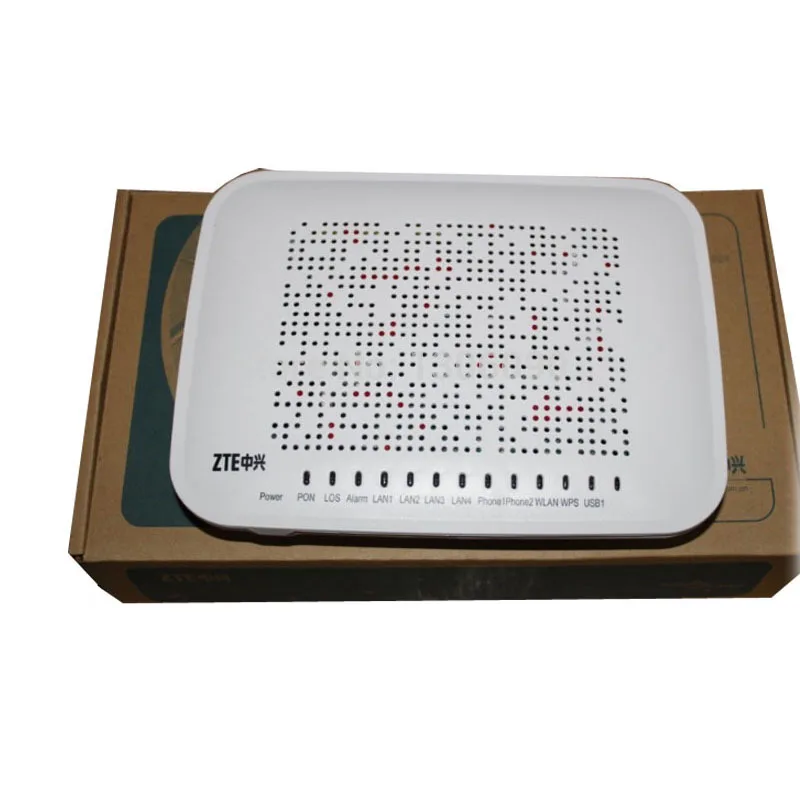

ZXA10 F660 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit)
used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home
network. It provides subscriber with rich, colorful, individualized, convenient and comfortable
triple-play services including voice, video (IPTV) and high speed internet access. It also
supports IEEE 802.11b/g/n that allows subscriber to enjoy internet via wifi. It has a small,
smart appearance and green, energy-saving advantage. Using OMCI protocol, O&M cost
can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis
and performance statistic functions.


GPON Compliance

ITU-T G.984.x GPON standards
1.244Gbps burst mode upstream, 2.488Gbps downstream
Upstream 1310nm, Downstream 1490nm
Output optical power: Min 0.5dBm,Max +5dBm
Receiver sensitivity: Better than -28dBm

Frequency: 2.4 GHz

IEEE 802.11b/g/n
128 bits WEP data
WPA/WPA2 (Wi-Fi Protected Acces) Security
WPS (Wireless Protected Setup)
WMM(Wi-Fi Multi Media)
Max 4 Broadcast/hide SSIDs
Max 128 users one SSID

SIP/ H.248/ MGCP

DTMF Dialing / DTMF Digits
5-REN, balanced ring, 55V RMS
Codec: G.711 (μ-law and A-law), G.726, G.729, G.723.1
32 ms echo cancellation
IN-BAND method
DTMF encoding by RFC 2833
T.38/T.30 FAX
Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing

File sharing

USB Fast Recovery
Profile quick backup
USB 2.0, full speed, high speed

IPv6 / IPv4 Dual Stack

Static routing, and dynamic routing in RIPV1/V2
PPPoE Client/Pass Through
DNS Client/Server
IGMP v1/ v2/ v3
IGMP proxy/snooping

Traffic filtering based on UNI port, VLAN ID, 802.1p,UNI+802.1p or VLAN+802.1p

DOS attack defending
MAC address filtering
BUM(Broadcast, Unicast, Multicast) attack protection
Limit MAC address per UNI port or per ONT
Broadcast packages rate limit
Broadcast storm suppression

Rate limitation

Classifying upstream traffic into VLANs with various Ethernet priorities
Marking Ethernet priority based on DSCP value
Ingress rate limit/ Egress shaping

TR-069 remote management

Local WEB and telnet management
Local built-in diagnostic Function
Logs and statistics
Loop back function
OMCI management

Hardware Specifications
WAN: One SC/APC port for GPON

LAN: Four RJ-45 ports for Gigabit Ethernet interfaces
FXS: Two RJ-11 ports for VoIP
USB: Two USB 2.0 host interfaces
Wi-Fi: 802.11b/g/n(2X2)
BATTERY: One RJ-45(reverse) port for UPS monitor
Button: - WLAN ON/OFF - WPS - Reset - Power ON/OFF
LED Status indicators : Power, PON, LOS, ALARM, LAN1, LAN2, LAN3, LAN4, POTS1, POTS2, WLAN, WPS, USB, BATTERY

Electrical Characteristics
Power input: 12 VDC 1.5 A

Power consumption: Less than 11W

Physical Characteristics
Net weight: 380g

Size: 199 (W) x 150 (D) x 35(H) mm

Environmental Characteristics
Operating temperature: -5°C ~ 45°C (23°F ~ 113°F)

Humidity: 5% ~ 95% (non-condensing)



Technical items


   Fiber port

1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps


Tx 1310nm, Rx 1490nm

Fiber interface


RX sensitivity

<-28dBm (1490nm)


IEEE802.11b/g/n,300Mbps, a built-in antenna


1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface


Throughput can reach 900Mbps or more



DC power

12V 1A, external AC-DC power adapter


Reset, power




Working temperature: -5-+55℃  working humidity:10-90%(non-condensation)


Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)



  Net weight
