Oписание продукта

1.Introduction:

With the development of technology, laptop are more and more popular in our daily life now.  At the same time, a lot of brands of laptop computers occured. There are also a lot of models in a brand of laptop computer, they are slim model, super less power model, big screen model and the model which are with strong function. Because of the different powers, there must be different power adapters correspondingly. In order to let laptop computer distinguish power adapters which with different output powers and to avoid damaging notebook by using other brands notebook power adapters, manufacturer usually put recognization chips into notebook power adapters. When the power adapter DC connectors plug into notebook, first notebook can recognize the power adapter. If it doesn\'t recognize the DC connector, it will not open the inner supply power circuit. This admeasuring apparatus can truly imitate the process how a computer recognize a power adapter. This achieve a situation that an admeasuring apparatus can measure all poower adapters of all brands of notebook computers. Thus can save manufacturer\'s  producing      cost and outlets\' sales cost largely.

2.Power adapter parameter range:

current measurement range 0-7.5A

voltage measurement range 0-30V

current accuracy 0.1%

voltage accuracy 0.1%

DC9V  supply power voltage DC9V

ID recognition range of Apple laptop adapter: 45w 60w 85w

ID recognition range of Dell laptop adapter: 65w 90w 130w

HP laptop adapter voltage recognition



3.attention

1. Positive pole and negative pole must not be connected incorrectly. If doing so, it would cause damagement.

2. The input current and voltage should under the allowable range, or it will cause damagement.

No load test:

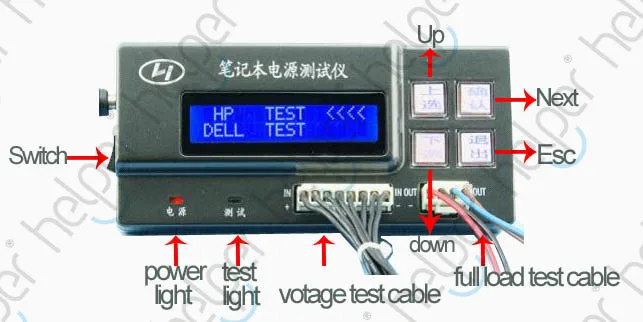

4.Principal machine basic function introduction



aeProduct.getSubject()

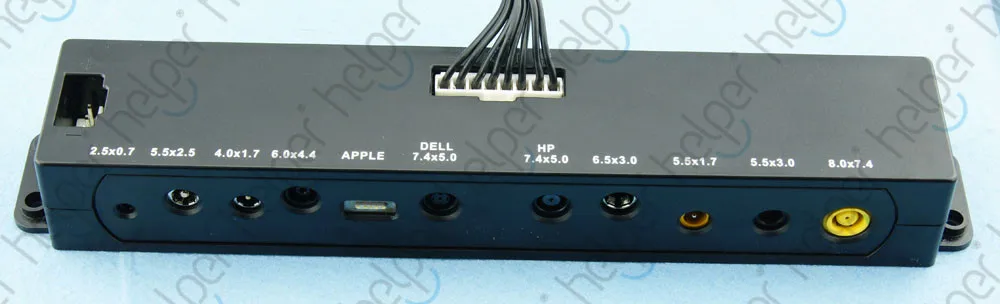

connector fitness board introduction

aeProduct.getSubject()aeProduct.getSubject()





HP adapter measurement

Dell adapter measurement

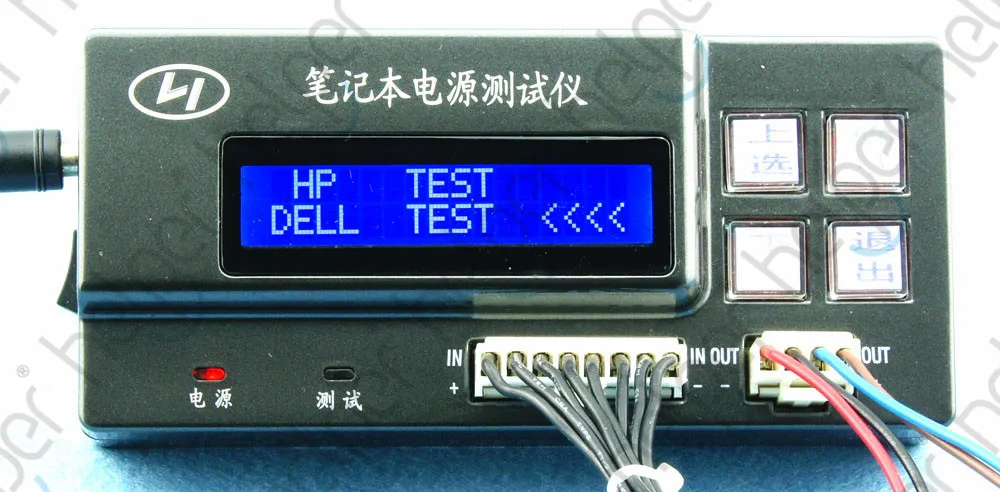

Choose "DELL TEST" key in the manu, and press "ENTER" key to go into Dell power adapter measurement model.

aeProduct.getSubject()

If  it recognizes the power adapter successfully, it will show "DELL-90W" just like the picture bellow. (Just like this, if the adapter\'s power is 65w., it will show "DELL-65W". If 130w, "DELL-130W".)

aeProduct.getSubject()

If it fails the recognition, it will show "DELL-NC" just like the picture bellow.

aeProduct.getSubject()



Apple adapter measurement

Choose "APPLE TEST" key in the manu, and press "ENTER" key to go into Apple power adapter measurement model.

aeProduct.getSubject()

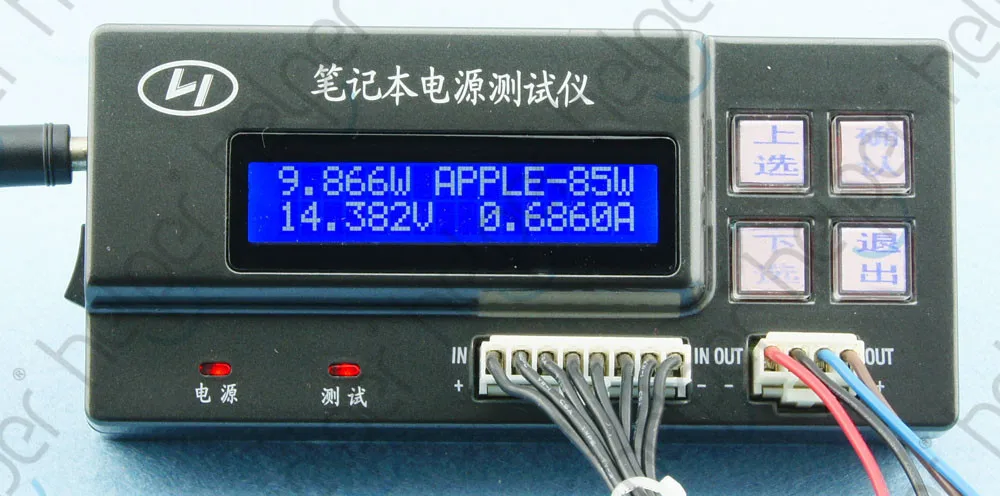

If  it recognizes the power adapter successfully, it will show "APPLE-85W" just like the picture bellow. (Just like this, if the adapter\'s power is 45w., it will show "APPLE-45W". If 60w, "APPLE-60W".)

aeProduct.getSubject()

If it fails the recognition, it will show "APPLE-NC" just like the picture bellow.

aeProduct.getSubject()



FULL LOAD TEST is after the no-load test. If no-load test is failed, it\'s not need to check the full-load test.

How to adjust the current?

HP adapter measurement



Dell adapter measurement

Choose "DELL TEST" key in the manu, and press "ENTER" key to go into Dell power adapter measurement model.

If  it recognizes the power adapter successfully, it will show "DELL-90W" just like the picture bellow. (Just like this, if the adapter\'s power is 65w., it will show "DELL-65W". If 130w, "DELL-130W".)

If it fails the recognition, it will show "DELL-NC" just like the picture bellow

Apple adapter measurement

Choose "APPLE TEST" key in the manu, and press "ENTER" key to go into Apple power adapter measurement model.



aeProduct.getSubject()

If  it recognizes the power adapter successfully, it will show "APPLE-85W" just like the picture bellow. (Just like this, if the adapter\'s power is 45w., it will show "APPLE-45W". If 60w, "APPLE-60W".)



aeProduct.getSubject()

If it fails the recognition, it will show "APPLE-NC" just like the picture bellow.

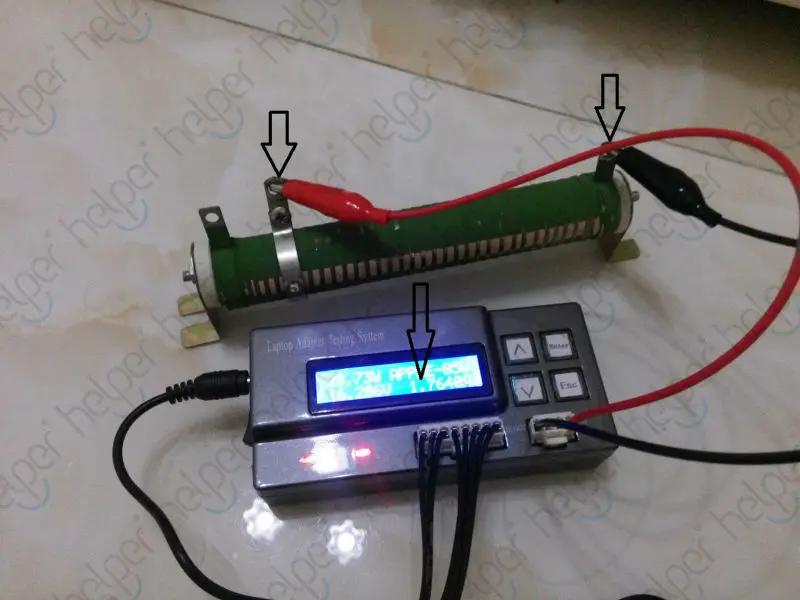

The resistance is as following. PLS use the heat proof glove before using the resistance. The resistance will be hot when U use it to test the current.

aeProduct.getSubject()





aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()

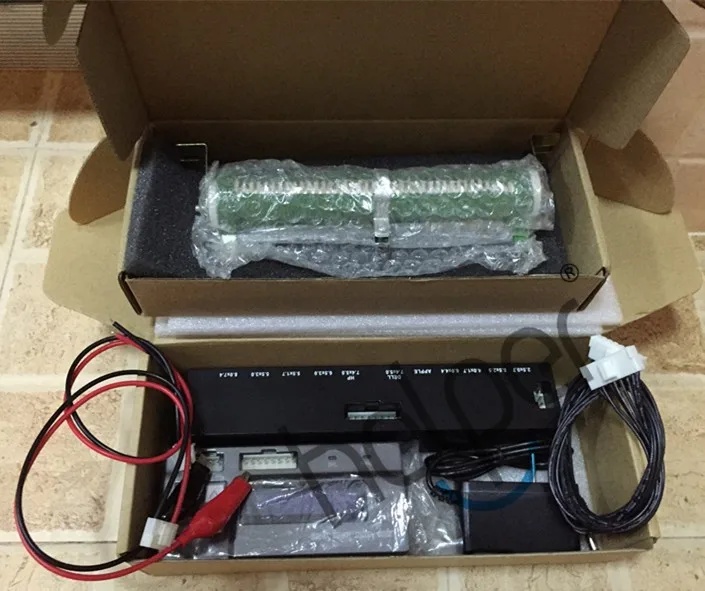

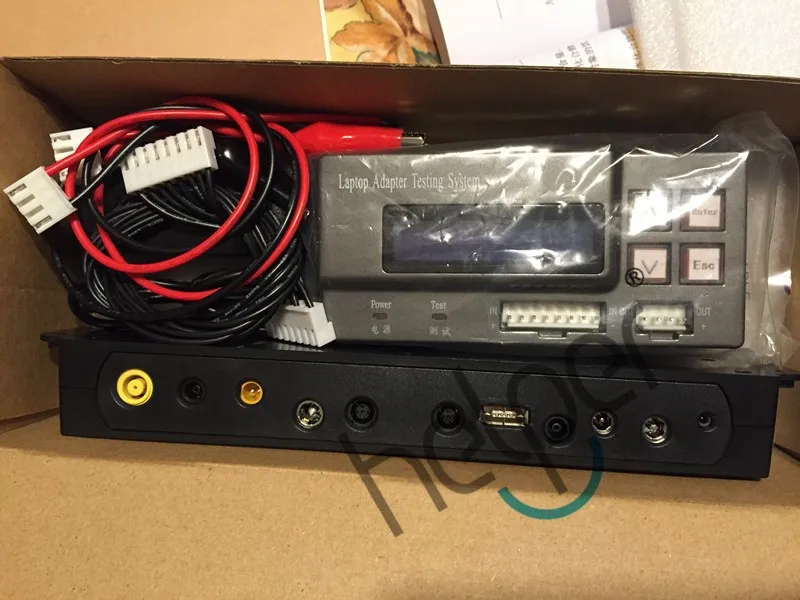

Package

aeProduct.getSubject()aeProduct.getSubject()

We provide the highest quality laptop power adapters for the lowest price with the highest level of service. . All laptop adapter chargers are New and passed strict quality assurance procedures such as CE, ,RoHS,UL,FCC and ISO9001/9002/14001 certifications.

( only 5% factory care the quality as well as our factory in China)

Good supplier and wish to expand the market.

Price: not lowest,but have a good value and just at your wish.

Find us can save your time and money.





aeProduct.getSubject()

certification: CE, CCC, Rohs,FCC.
Protection
1 Short Circuit Protection
2 overcurrent protection
3 Overvoltage Protection
Product Features
1.full output current;
2.high output voltage accuracy;
3.the output voltage ripple is small;
4.the original standard design, 100% compatible with original power supply;
5.compact and lightweight, easy carrying, has passed series of safety certification, safe and secure.
6.The product does not contain (and not exceed the prescribed limits) European limit / disable of cadmium, chromium, lead, mercury, PBB, PBDE six toxic substances.
