Wireless Door Lock Fingerprint/Password/Smart Card Access Control System

Wireless Door Lock Fingerprint/Password/Smart Card Access Control System
  • Продавецwww.flimmer.com
  • Список ценUS $151.05piece
  • Продажная ценаUS $151.05piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (754)

Oписание продукта

Advantages:

1. Strictly follow the national security product standard .Suitable for the entrances and exits of office, factory, hotel, school, etc.

2. Adopting RS485 or TCP/IP carries out networking. USB flash drive upload/ download is available.

3. Fingerprint / Card / Password / Fingerprint + Card / Fingerprint + Password / Card + Password /Fingerprint +Card+ Password identification modes are all available.

4. RIMS software for managing the user information and attendance records.







Specification:



Model

F211

TFT

2.4 inch TFT (320*240) Color Screen

Fingerprint Sensor Resolution

500DPI

Rotational Angle

Total Rotational Angle

FRR

less than 1%

FAR

less than 0.00001%

Identification Time

less than 1 S

Query Record

Available

Operating Mode

Off-line/On-line

Authentication Mode

1:1 1:N

Identification Mode

Fingerprint/ID Card/Password

Fingerprint Capacity

800

Log Capacity

50,000 events

Communication

TCP/IP, RS485

USB flash drive upload/download

Available

Language

Chinese, English, Persian, Thai, Portuguese, Vietnamese

Voice prompt

Available

capacity notification

Alarm when log capacity is full

Bell

Built-in timing bell

Lock Output

Normal Open / Normal Closed

Door Open Button

Can connect the common button, or the wireless remote controlled button

Doorbell Output

Can connect the doorbell

Access Control Interface

Wiegand, Input/ Output

Alarm

One alarm signal

Power

DC 12V/1A

Operating environment

Operating Temp: 0-50 Degree, Humidity:80%

Size of the Terminal

100(L)*100(W)*40(H)mm



Image:

04050708

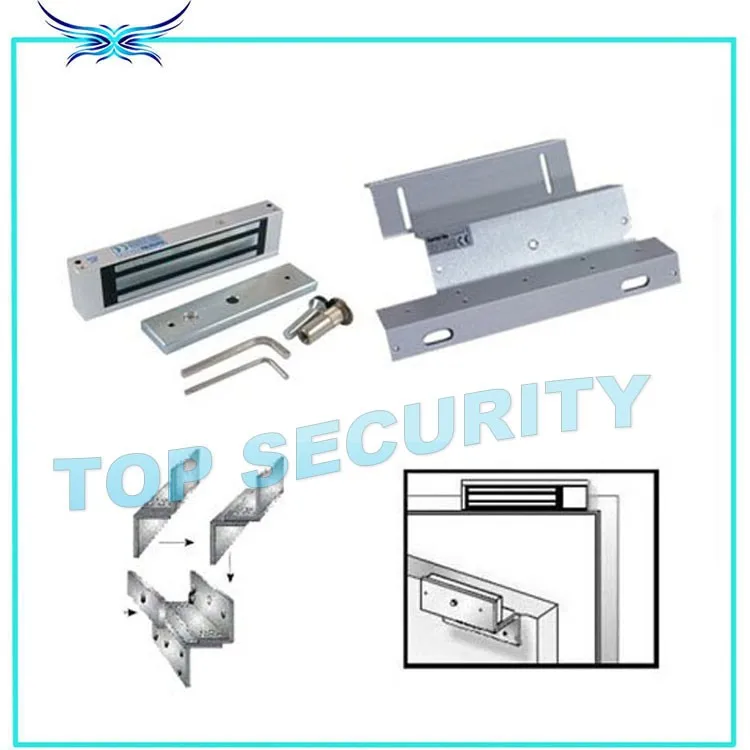

EM Lock:
Features:
Use magnetic power to lock the door, 280kgs (600lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.

Specifications:
Holding force: 280kgs
Voltage: DC 12V
Current: 380-450mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Lock size: 25 * 4.6 * 2.5cm
Plate size: 18 * 3.8 * 1.6cm
Package weight: 2KG

C07C005

B08B03
Exit Button:



B03B05




Power supply:
100% Brand New.
Size: Approx. 212 x 172 x 70mm(L x W x H)
Weight: 1.1kg
Input voltage: 110~240v
Input Frequency: 50~60Hz
Output voltage: DC 12V
Output Current: 5A
Output voltage trim range: ±10%~ ±15%
Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
Hold time: full load typically 20ms
Operating temperature: -20~ ±35 degree
Overload protection: All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks
