LSZ Four channel mini car VCR 2CH HD Mobile DVR AHD mdvr bus monitor host

LSZ Four channel mini car VCR 2CH HD Mobile DVR AHD mdvr bus monitor host
  • Продавецwww.flimmer.com
  • Список ценUS $53.77piece
  • Продажная ценаUS $53.77piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (865)

Oписание продукта

2Ch Vehicle car Video Recorder Car/Bus mini Mobile Car Video DVR I/O Alarm Motion Detect Max Upto 128GB SD Card with camera

The Mobile SD video recorder is a compact, full-featured recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.







DSC04005



F.A.Q.

Q: DVR can not read SD card.

A: Please use 2GB to 128GB genuine SD card.



Q: No images on TV after turn on the DVR.

A: Please check the cable is correctly connected. Yellow connector should connect with

video input port on TV.



Q: No sounds when playing video.

A:Please check the cable is correctly connected. Red connector should connect with audio

input port on TV.

B: The camera connected with DVR should be with audio feature.



Q: No recorded files in SD card after system records.

1. Please check if the SD card works with DVR normally;

2. Please use 1GB to 128GB genuine SD card.



Q: DVR system crashes when it is on.

A:1. You can not take out or insert SD card when it is on;

2. Please make sure it is a genuine SD card.



Q: DVR doesn’t record video when motion detected.

A: 1. Please set “Recording mode” to “Motion Detection”

2. Set “Sensitivity”, Speed” and Noise Margin according to the suggestions on

page 13-14.



Q: Remote control is not working.

A:1. Check whether remote battery is flat: connect DVR with camera and monitor, press any

buttons on remote, with remote LED facing the camera to see whether there is a spark

in the monitor; if not, please replace a new battery;

2. Remote control only works in open space.



This is a 128GB SD card DVR works with two camera has 25f/s(PAL) or 30f/s(NTSC) Real time video inout,and 640X480(VGA) resolution. The wide power range 9V-30V support any vehicle used.



Products\\\' Features:

> 2 channel video input and recording at the same time

> Frame rate:5FPS/15FPS/30FPS

> Video resolution 640X480(VGA)

> Mpeg-4 compression, video format ASF

> Max. 128GB SDHC card used (Micro sd card optional)

> 9V-30V power input available

> Recording mode: Power up, motion detection, manual

> support 2 channel audio input & 1 channel output

> key of lock for dvr

> Recording mode: Power up, motion detection, manual

> Alarm I/O function available

Specification



Project

Specification

Feature

System

Lanuage

Chinese/English

Operate System

Linux

Video

Video Input

2 Channel Video Input ,1.0Vp-p,75

Video Output

1 Channel RCA Video Output ,1.0Vp-p,75

Video System

NTSC/PAL

Audio

Audio Input

2 Channel Audio Input

Audio Output

1 Channel RCA Audio Output

Audio Format

PCM/16Kbz

Video resolution

VGA(640*480)

Expansion Interface

Storage

Support SD Card up to 128G

Frame rate

2 Channel 5FPS/15FPS/30FPS



Alarm Input

2-level input

Alarm output

1-level output

IR-EXT

Yes

Power

Power input

DC 9V ~ 30V

Power Output

2 Channel DC12V 1.5A

Working consumption

2.0W



Size

10x8x2.8cm

Weight

0.25kg

Operating Temperature

-20degree~ +80degree





Package

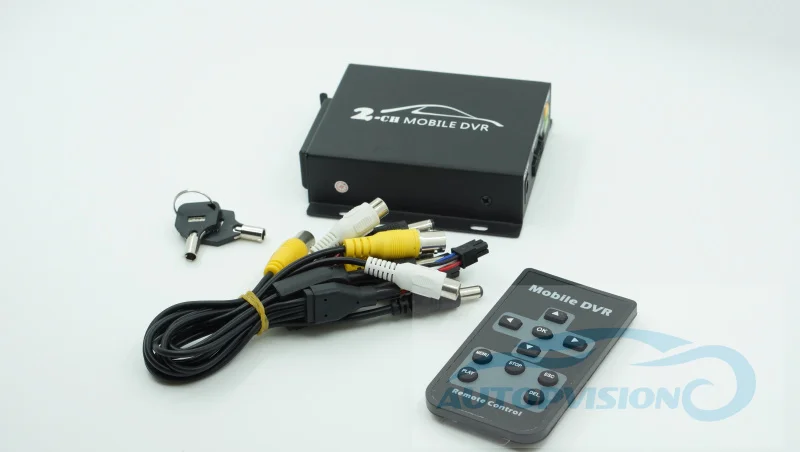

1x 2ch Mini DVR(sd card not included)

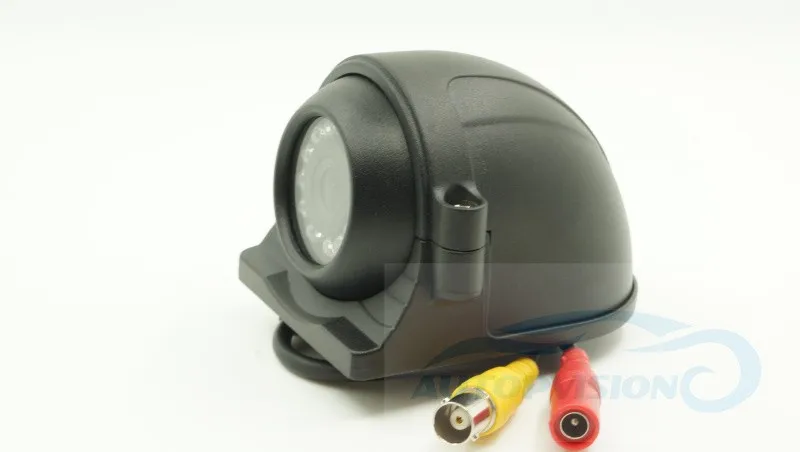

2x SONY 480TVL Webcam
1x 5M Extend Cable
1x 10M Extend Cable
1x Power cable
1x Remote control
2x AV/dc cable
1x CD
