HDMI Extender 1080P HDMI To RJ45 Single Network Cable Signal Extender CAT5/6 Ethernet Lan Transmitter Receiver Sender Adapter

HDMI Extender 1080P HDMI To RJ45 Single Network Cable Signal Extender CAT5/6 Ethernet Lan Transmitter Receiver Sender Adapter
  • Продавецwww.flimmer.com
  • Список ценUS $21.99piece
  • Продажная ценаUS $21.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (953)

Oписание продукта

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (1)

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5/Cat5e/Cat6 120m With Audio Extractor HDMI Over IP



Noted:The HSV891-IR support 1 pcs of Sender to 253 pcs of receivers over switch.
This item only includes 1 sender and 2 receivers.
You can buy more Receiver here:


 Introduction

This       HDMI LAN Extender with IR        product not only can work as other normal HDMI extender by CAT5/6
cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
HSV891-IR HDMI LAN Extender with IR  supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices.
HSV891-IR HDMI LAN Extender with IR  also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.

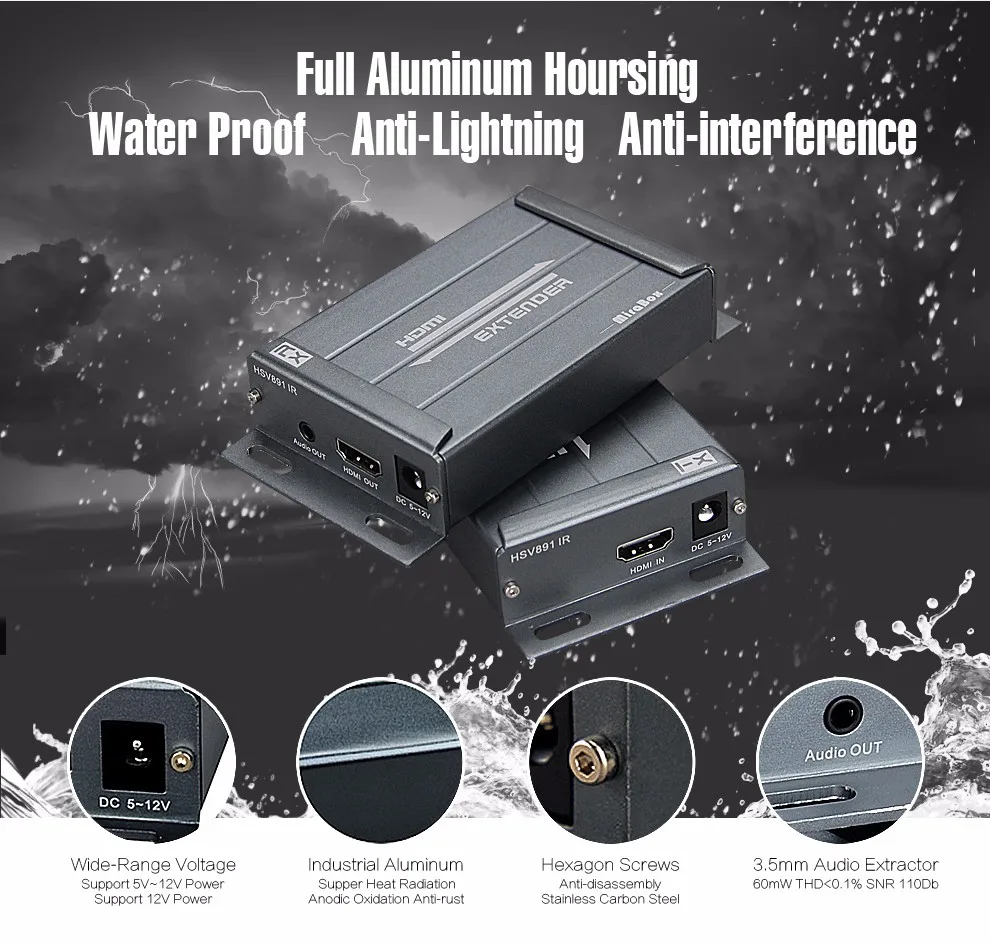

HSV891-IR HDMI LAN Extender with IR  have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.

Noted:

1. COST-EFFECTIVE SOLUTION- Extend HDMI audio/video signals over a cost effective CAT5/5e/6/6e cable up to 525ft, Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, run a CAT5/5e/6/6e cable from the Transmitter to Receiver, then connect your HDTV/projectors from a remote location to the Receiver with an HDMI cable; An HDMI cable is required and sold separately.

2. HDMI Splitter + Extender, Over Router or IP Switch, Support Multi-receiver upto 253pcs- The connection like: hdmi source---HSV891IR Sender---CAT5/5e/6/6e cable---switch---CAT5/5e/6/6e cable---Multi-HSV891 IR Receivers---Monitor, HDTV, Projector, or other HDMI screen.

3. Build-in 3.5mm R/L Audio Extractor- Solve Monitor Without Speaker / Poor Sound Quality; Resolution Supported- 1080p@50Hz / 1080p@60Hz / 1080p@24Hz / 1080i@50Hz / 1080i@60Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz

4. IR REMOTE CONTROL(20~60KHZ)- Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5/5e/6/6E cable for convenience

5.  EASY INSTALLATION - Just Plug and Play, No driver required; Surface mountable metal housing with included brackets allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference * Note: A good quality CAT5/5e/6/6E cable is essential in delivering quality content; CAT6/6E is recommended for better performance

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (5)

Specification

Power Supply: DC 5~12V/1A
IR Frequency Range: 20KHz~60KHz
Working Temperature: -10°C ~ 60°C

Link Connection: UTP/STP Cat5/Cat5e/Cat6 Rj45 Ethernet
3.5mm Audio Output:  60mW THD<0.1% SNR 110dB
Power Consumption: 3W(max)each

Working Mode:
*Point to Point mode
*Broadcast mode( Point to MultiPoint)
*Cascade mode

Transfer Distance:
Point to Point Mode:
CAT5  100meters
CAT5e 120meters
CAT6  150meters

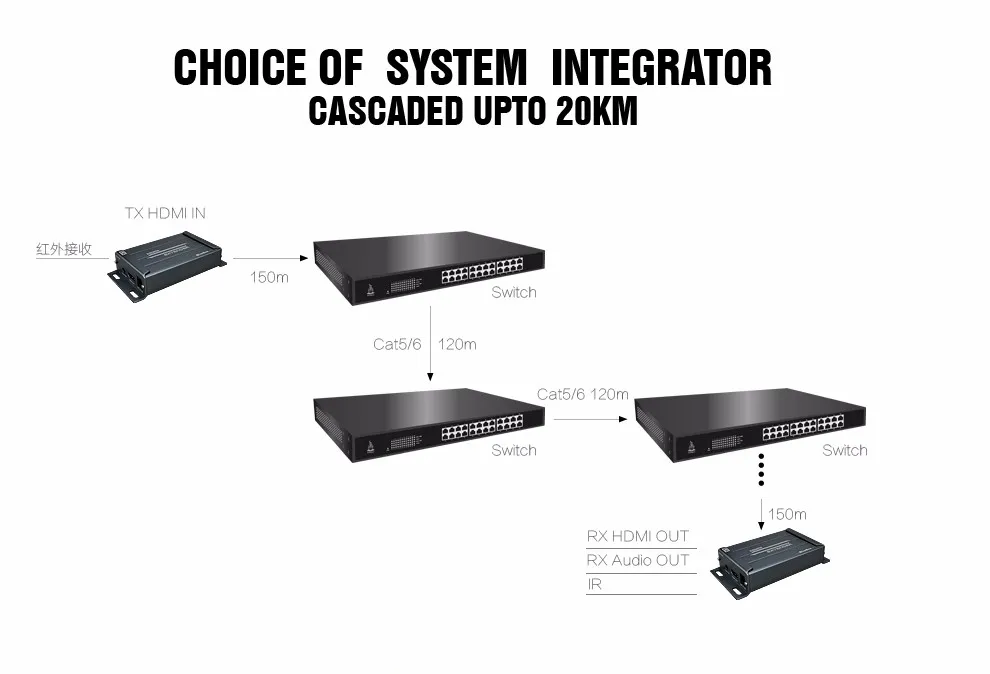

Cascade Mode:
20Km maximum

Relative Humidity:20% ~ 90% RH(Non-condensing)

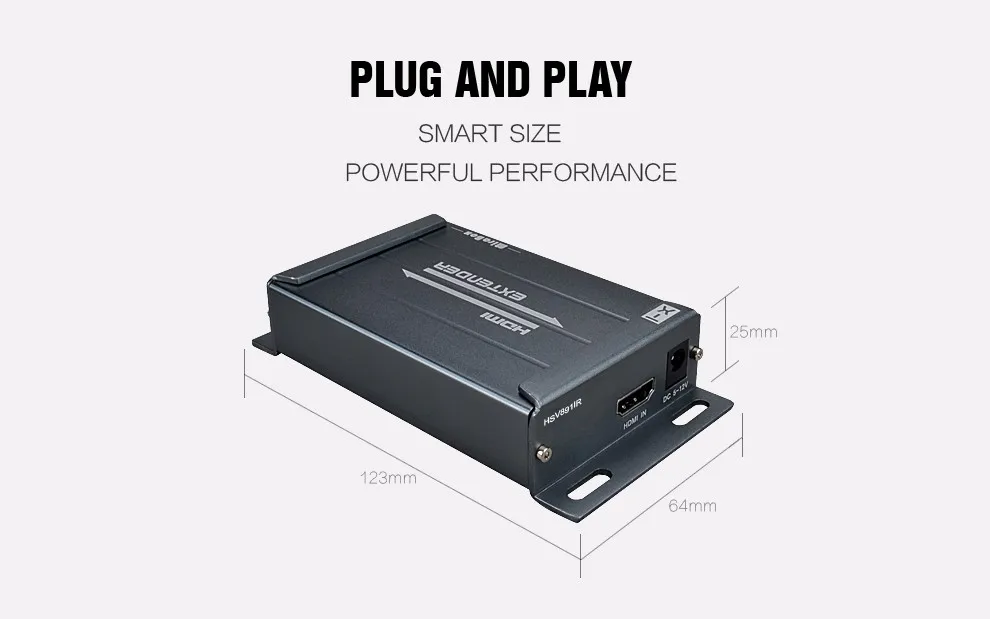

Dimensions:123x64x25mm
Weight:110g each

Package contents:

1)  Transmitter *1  & Receiver *2, IR Blaster*1+IR Receiver*2
2) User Manunal   *1
3) Power adapter  *3

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (17)

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (18)HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (21)

(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (2)(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (4)(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (5)(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (6)(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (7)

(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (8)

(1 Sender and 2 Receivers) 1080P HDMI Over IP Extender IR With Audio Extractor By Rj45 Cat5Cat5eCat6 120m HDMI Extender IR (9)

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (12)HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (13)

HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (2)HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (3)HSV891-IR (1 Sender and 2 Receivers) 1080P HDMI Extender IR Over Rj45 Cat5 Cat5e Cat6 120m With Audio Extractor HDMI Over IP (4)
