CCTV 5 50mm Varifocal Lens 8Megapixel High Definition SONY (1/3.2'' ) IMX179 Super Mini HD 8MP Industrial Camera USB

CCTV 5 50mm Varifocal Lens 8Megapixel High Definition SONY (1/3.2'' ) IMX179 Super Mini HD 8MP Industrial Camera USB
  • Продавецwww.flimmer.com
  • Список ценUS $74.46piece
  • Продажная ценаUS $74.46piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (556)

Oписание продукта

WDR camera 1080P H.264/MJPEG/YUY2 Aptina AR0331  3.7mm lens mini cctv low light 0.05 lux usb camera board for andorid, linux



Package includes:



1) 1PC 2mp H.264 usb wdr camera with 3.7mm lens

2) 1PC 1m usb cable



Advantage of usb camera:

1)The HD 1080P USB CMOS board camera module is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.

2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.



Main Specifications

Model ELP-USB3MP01H-L37

Sensor AR0331

Lens Size 1/3 inch

Pixel Size 2.2um X2.2um

Max. Resolution 1920(H)X1080(V)

Compression format H264 /MJPEG / YUV2(YUYV)

Resolution & frame H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps

MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@

30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps

YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@

5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps

S/N Ratio 39dB

Dynamic Range Up to 100 dB

Responsivity 2.0 V/lux-sec

Mini illumination 0. 05lux

Shutter Type Electronic rolling shutter and GRR

Connecting Port type USB2.0 High Speed

Free Drive Protocol USB Video Class(UVC)

Support OTG Protocol USB2.0 OTG

AEC Support

AEB Support

AGC Support

Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Lens Parameter Standard 2.9mm, optional 3.7mm/FOV(D)80 Degree No distortion LENS

Digital audio High quality digital MIC, support single, dual channel

IR CUT Connector Support 2P-1.25mm socket

LED board power connector Support 2P-2.0mm socket

Power supply USB BUS POWER 4P-2.0mm socket

Power supply DC5V

Operating Voltage 140mA~200mA

Working current -10- 70 degree

Working temperature -20-85degree

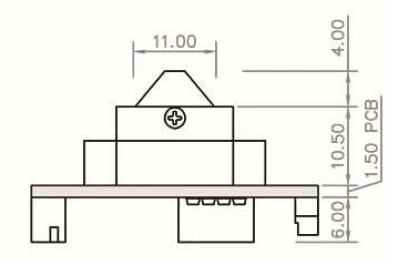

Board size /Weight 38X38mm/ about 30g

Cable Standard 1M / optional 2M,3M,5M

Operating system request Win7 Win8 Win10 Win11

Linux 2.6 or above

Android 4.0 or above

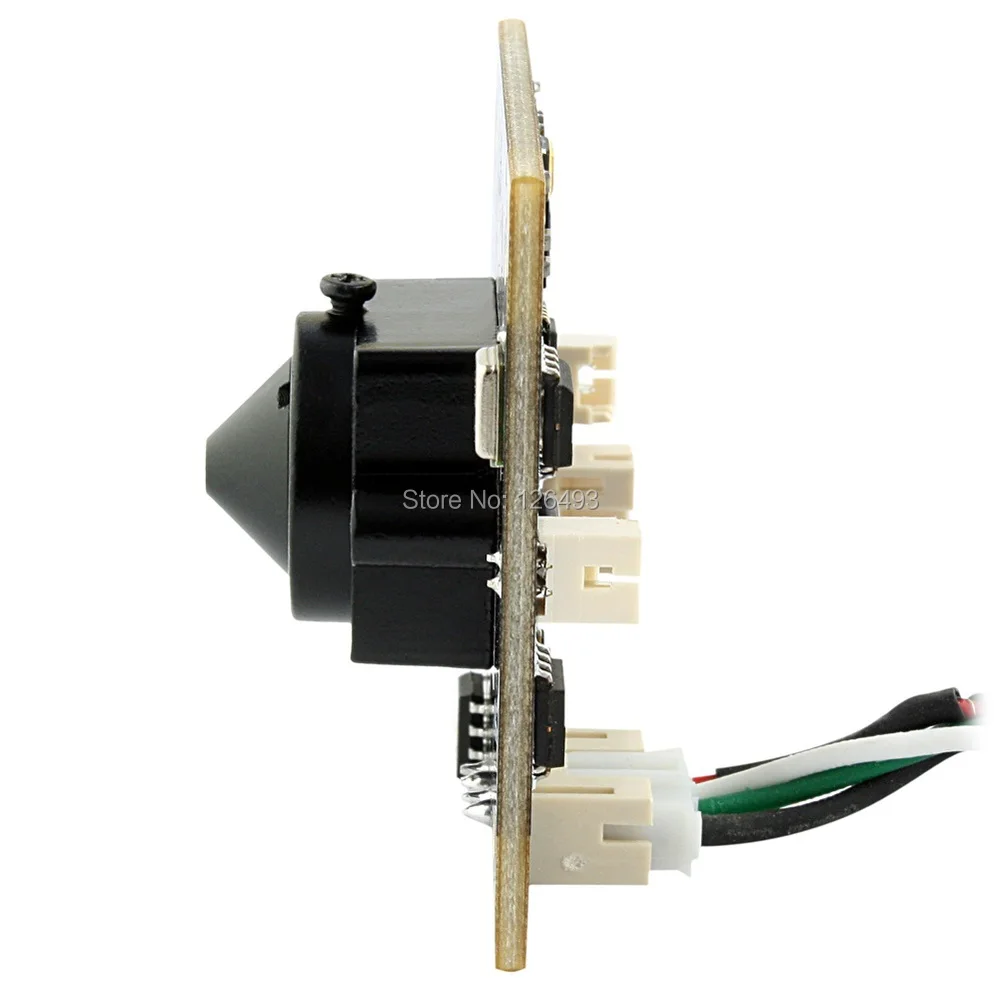

Products display:



IMG_3236IMG_3239IMG_3241IMG_3245IMG_3247IMG_3252IMG_3253IMG_32553.73.7-13.7-2











2MP usb camera paper picture:

2MP USB Camera equiped with 45 degree lens and 2048x1536 resolution OV5640 01



Outdoor true and undistorted color image:



2MP USB Camera outdoor resolution



Specially designed Packing for usb cameras:

usb packing
