good quality 3 axis digital readout and 3pcs 5u 50 1000mm linear scale measuring sensor/encoder

good quality 3 axis digital readout and 3pcs 5u 50 1000mm linear scale measuring sensor/encoder
  • Продавецwww.flimmer.com
  • Список ценUS $282.00piece
  • Продажная ценаUS $282.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (724)

Oписание продукта

Remark:This order does not include remote fees.Thanks!

Dear Customer

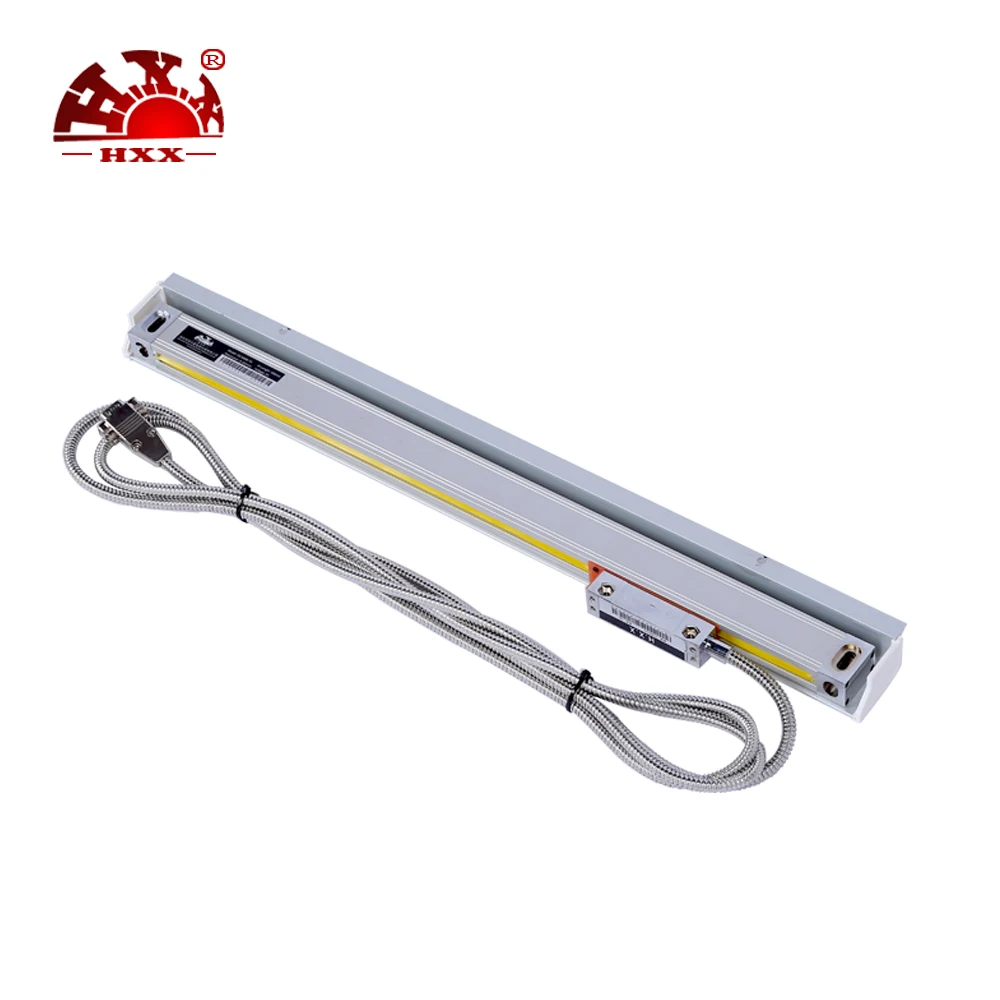

This order includes :  1 pcs linear scale,accuracy /resolution is 5u, travel length 650mm , (the travel length can be customized ,total length=travel length+138mm).

We are one of the biggest manufacturer in China , We have been working on linear scale , digital readout , magnetic scales ,other precision products over 19 years , Only us can provide the professional products with best price , If you have other requirement , Please just contact to us and let us know . Thanks .



001

002



details

Technical parameters of length scale of 5v (standard) , 24v linear scale :

1,PITCH: 0.02mm (50 lines of/mm), 0.04mm (25 lines of/mm)

2, resolution: 0.0005mm, 0.001mm, 0.005mm, 0.01mm,

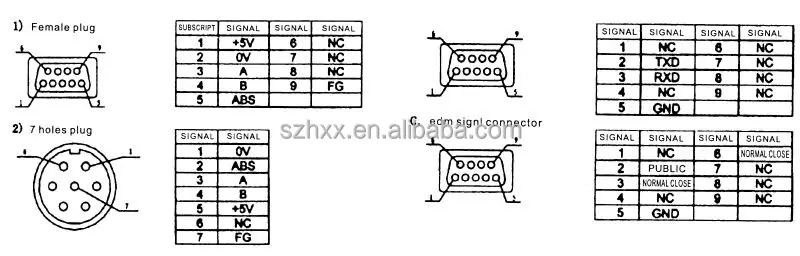

3, output signals:

(1) TTL square-wave

(2) HTL square wave (12V, 15v, 24V)

(3) EIA-422-A signal

(4) sine-wave voltage signal 1Vpp

(5) sinusoidal current 11uApp 4, range: within 3 metres of any select 5, accuracy: -0.003mm, and -0.005mm, and -0.008mm, and -0.01mm (20 ° 1000mm)

6, reference tags: 50mm interval, interval, 200mm, full range anywhere an absolute position reference point (ABS)

7, operating temperature: 0 °--45 °

8, response rate: 30m/min, and 60M/min, and 120m/min,

9 Storage temperature:-40 °--55 °



1



2

MIDDLE LENGTH SCALES1

GCS digital display table uses the latest 16-bit microprocessor technology, aluminium casing, fully compatible with SDS2 series basic functions and a variety of machine processing functions and achieve a table fully functional, this meter sampling faster, and by comparison with dual-frequency laser measuring instrument values. 40 points per axis can be input processing with nonlinear compensation data, minimizes the measurement error is now widely used in precision jig boring machine, boring and boring machines, precision, precision grinding machines, lathes and EDM EDM, milling machine, etc. With unique constant speed turning capabilities, this feature can be used in machining workpiece inner/outer circle, a digital meter according to the workpiece diameter range spindle inverter corresponding analog voltage output control, continuous change spindle speed, line linear speed of the workpiece surface, achieve constant speed turning results, ensure the workpiece surface roughness.

Product features:

1, the most advanced optical measurement systems, sliding section has been verified as the most durable and reliable design of high-precision five bearing system, guarantees the stability of optical and mechanical system, excellent repeated positioning and high level accuracy.

2, the sensor uses the sealed structure of ultra thin (thick), reliable performance, simple installation, maintenance, maintenance.

3, signal line of multi-layer isolating wire mesh covering four enclosures and protective waterproof metal housing, rust-proof function.

4, light use of imported infrared LEDs, small size and long service life.

5, Xin grating blade aluminum extrusions, handling, ulnar head part made of zinc alloy die-cast, corrosion and erosion.

6, the use of special oil resistance, corrosion resistance, high elasticity and plastic waterproof anti-aging, excellent dust-proof, long service life.

7, has a high level of anti-jamming ability, high stability, high speed, high vibrations.

8, the sensor glass precision measuring grating is used as a measuring device, can produce various specifications of high precision grating glass feet.

9, and blackout memory used E2PROM, from for battery, from maintenance, memory ten years; using 10 million times, is you best guarantees;

10, and vibration filter function: for requirements high precision of machine, so displayed resolution 1um (0.001mm), such as grinder, in processing Shi by produced of vibration often are over 1um, caused displayed numerical produced back and forth beat, makes operation who see have dazzled know mess. Vibration filter functionality, by using precise mathematical operations, following real time location sampling in optical ruler, filtered beats produced will vary from machine, and showed the best average position value, make operators more comfortable processing while reducing machining error in human judgment.

11, the nonlinear error correction function: due to precision machining or measurement of machine tools or instruments are usually, is confined to the bed structure of machines or apparatus itself and bed sets production levels as well as the effect of environment temperature and humidity often fall short of requirements for processing or measurement, thus making it necessary for optical grinding machines to increase the precision of the highest possible limits.

Payment

1.If you have any problem with the payment please contact with us.

2.If you decide to buy lot of  items,you can chat with us and the we will give you a discount.

Shipping

1.The item will be shipped within 1-5 business days.

2.If you have not received your shipment within 60 days, please contact with us. we will track the shipment and get it back to you as soon as possible.

Feedback

Your feedback is really important to us,if you are satisfied with our items please give a good praise. on the contrary, if you donnot like our item please contact with us,and we will try our best to solve the problem and leave you a happy shopping mood here. Thank you very much.

Warranty

Our DRO is produced by one of  the largest DRO manufacturer in China.  We are confident in the quality of our products.We provide two year international warranty. Please write if you have any questions. We would be more than happy to provide detailed information about our products.



 Wish you enjoy shopping and thanks for your time!
