Power Supply Module DC10V~75V to 0~60V 12A 720W Buck Converter/Voltage regulator CNC Control Module DC 12V 24V 36V 48V Adapter

Power Supply Module DC10V~75V to 0~60V 12A 720W Buck Converter/Voltage regulator CNC Control Module DC 12V 24V 36V 48V Adapter
  • Продавецwww.flimmer.com
  • Список ценUS $29.50piece
  • Продажная ценаUS $29.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (979)

Oписание продукта

24V 32W Nema 17 Printing equipment brushless AC servo motor and driver

Product Description

Part 1: Servo Driver:

Technical indicators:

  • DC input voltage range 20 ~ 70V (36V typical)
  • 200W continuous output power
  • Continuous output current 6A 32KHz PWM
  • Overload output current 18A (3 seconds)

Protection:
  • Action value over current peak 30A ± 10%
  • Overload I2t current action value 300% 5S
  • Overheating action value 80 Celsius Degree
  • 65V overvoltage voltage action value
  • Action value 18V voltage undervoltage
  • Maximum pulse input frequency 300K
  • Default communication speed 9.6Kbps (requires additional interface converter)

Use of the environment:
  • Occasions: Avoid dust, oil mist and corrosive gases
  • Working temperature: 0 ~ +50  Celsius Degree
  • Storage temperature: -20 ~ +80  Celsius Degree
  • Humidity: 40 ~ 90% RH
  • Cooling: Natural cooling or forced air cooling

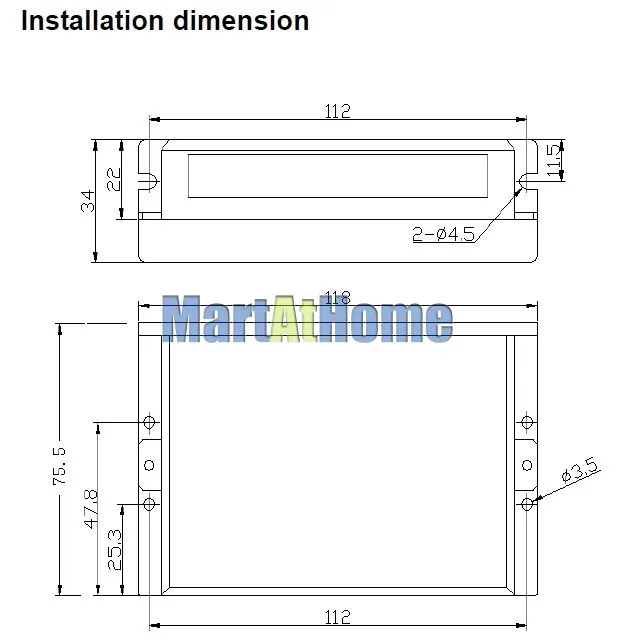

  • Overall dimensions 118 × 76 × 35
  • Weight about 200 grams

sm743-figure2


Part 2: Brushless servo motor:

Features:
JMC AC servo motor is a kind of low cost AC servo motor, when it works with driver (MCAC506, MCAC706, MCAC808), you could get the performance of the AC/DC servo at the lowest price.



Specifications :

sm743-figure1
sm743-figure3sm743-figure4sm743-figure5


Typical applications:

Applicable to packaging equipment and automatic grab equipment.
