Oписание продукта

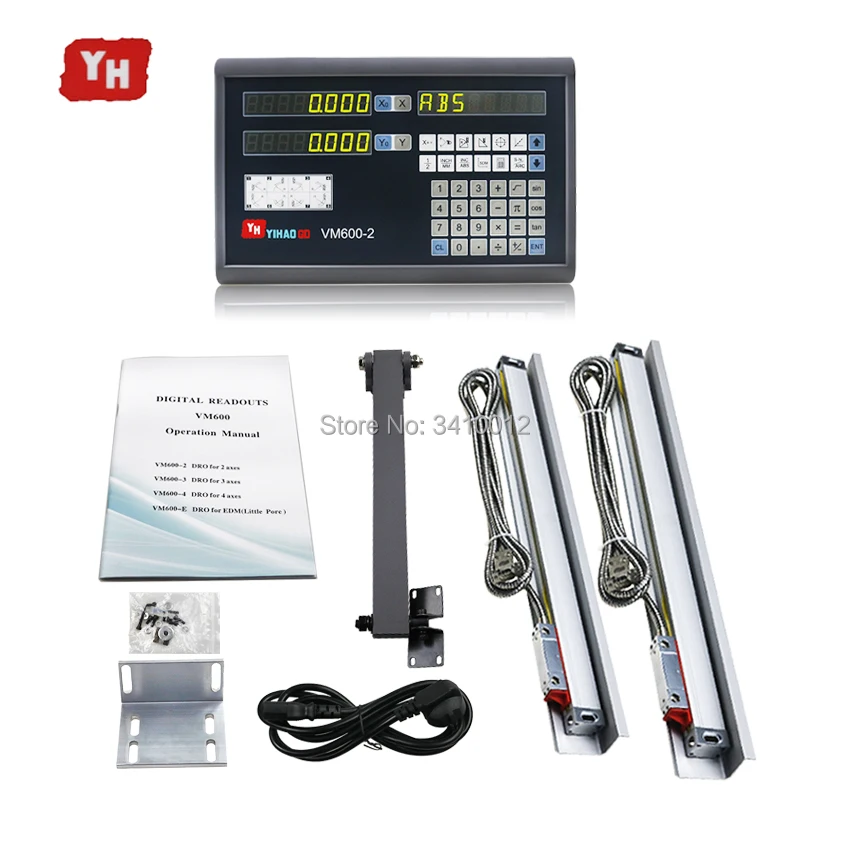

Complete Machine tool 2 Axis Digital Readout Dro Set/Kit and 2 PCS 5u Linear Glass Scales Linear Optical Ruler for Milling/Lathe

Dear buyer, please note

1. This order are included one new dro VM600-2(2019), it is 8 words display. 2 pcs 5u linear scales/encoder/sensor 50-1000mm. For example, 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

2. Like you choose 300mm, 400mm, the total length are 440mm, 540mm, hoping you can know it. When you make order, leave the message for me, thanks.

3. If you need other styles, contact with us first, thanks.

4. The price is not included the duty(tax) fee, hoping you can know it. If you order only one 2 axis dro, please confirm your linear scales can work with our 2 axis dro, thanks.

Dro digital readout functions

1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of 1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:vibration filtering
21:Radius /Diameter fucntion
22: Lathe function

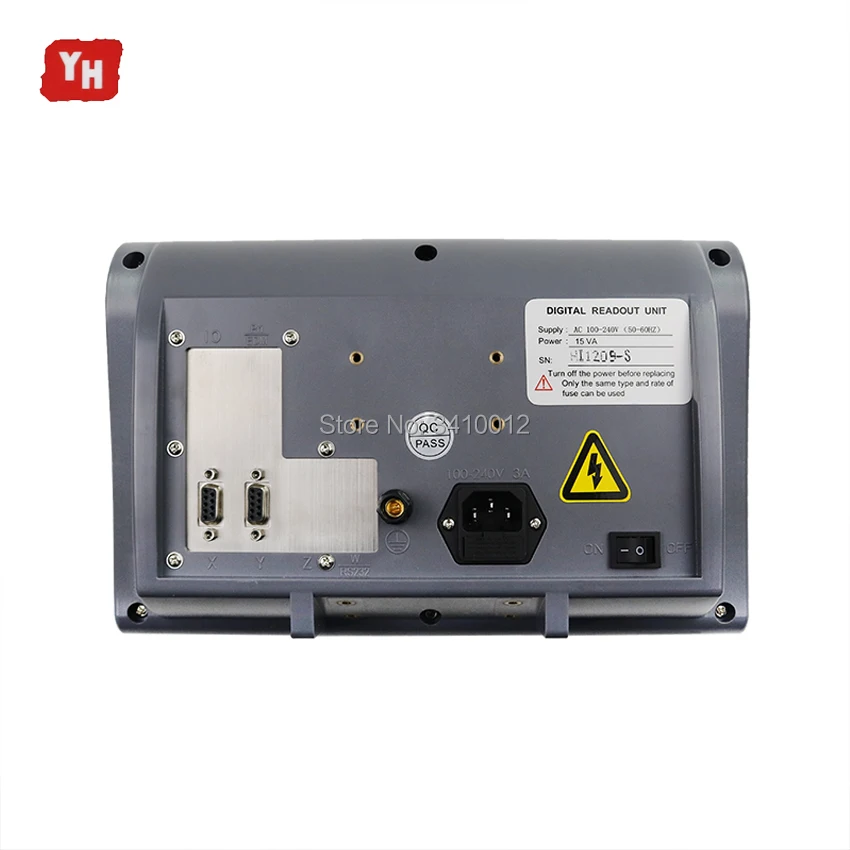

Dro digital readout parameter
1.Voltage Range: AC 80V~250V/50HZ~60HZ
2.Acceptable Signal: TTL
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.
5. If yo order only one piece dro, please confirm your old linear scales can work with our dro.


Advantage
1. It is new 2 axis dro VM600-2(2019), smaller, better performance. Take less space on your machines.
2. We are factory, price and quality are good, can quick solve your problem, saving much tims.
3. can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
4. We offer different type plug suite for different countries if need.


11299





Linear scals/encoder/sensor parameters

1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 140mm (0-1140mm)
3. Plug: DB9
4. Resolution: 0.005mm(5u), {we can offer you 1u(0.001mm), 0.5u(0.0005mm), need extra fee.}
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)

7. Cable length: 3 Meter

8. Normal size: About 22*34

9. Slime size: About 20*29(Need extra fee)

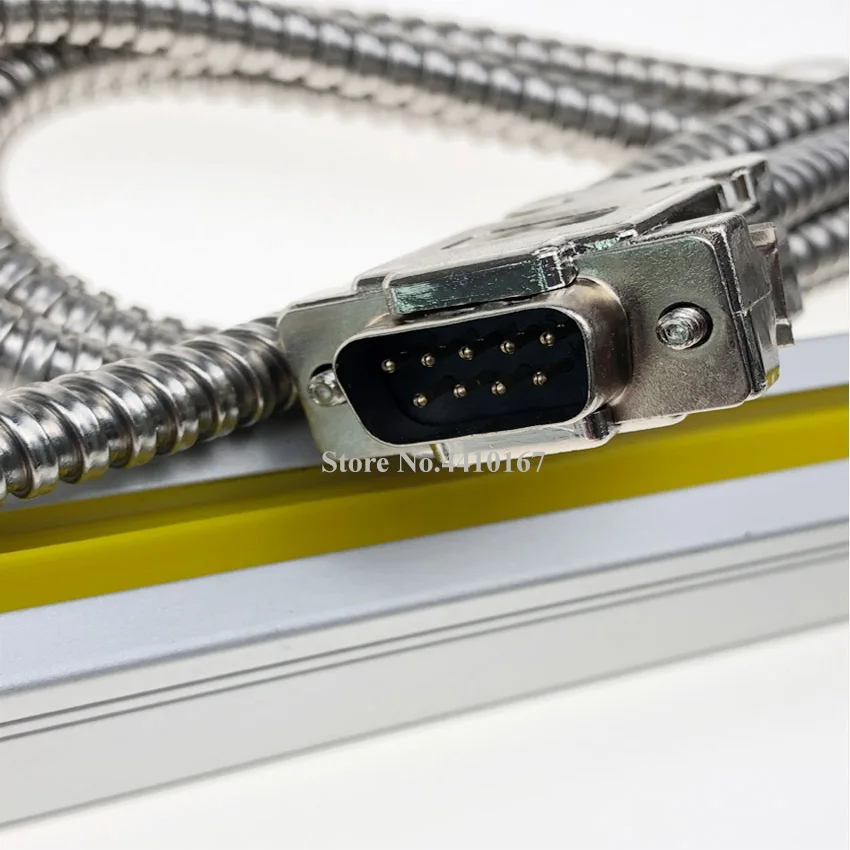

The Signal of Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor

Pin 2 Black 0V

Pin 6 Green A

Pin 7 Red 5V

Pin 8 White B

Pin 9 Orange Z

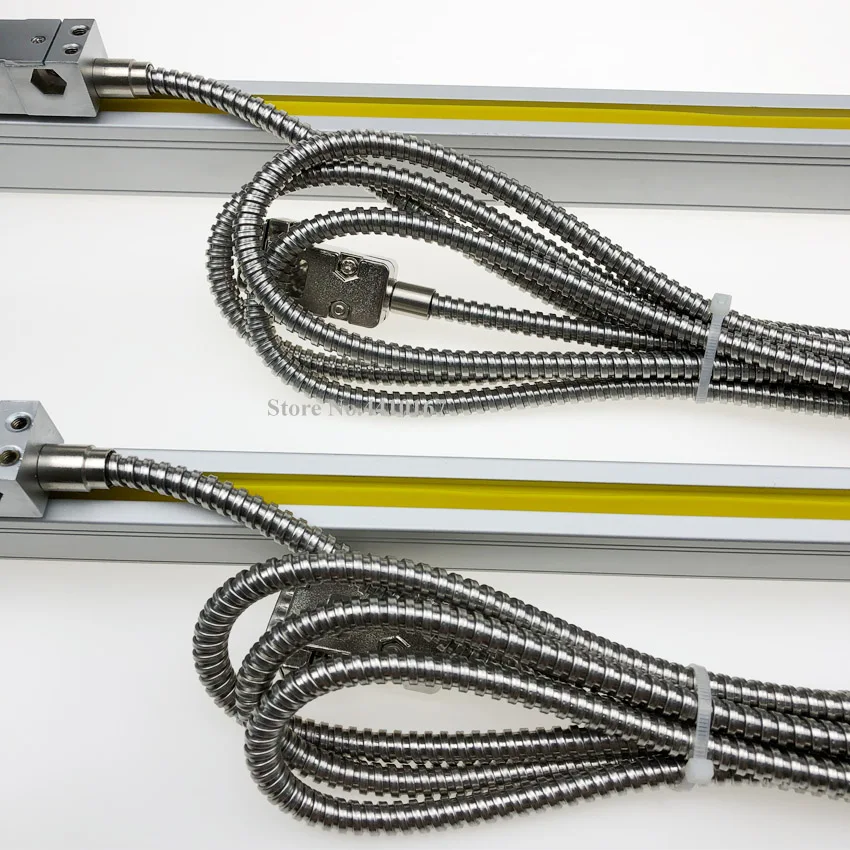

Picture of linear scales

1171141161212018812201881812018813



119

123321

FAQ
Question: How to make payment?
Answer: You can make payment by Credit card as Visa, Mastercard, Paypal etc. In Aliexpress, there are many ways to pay, do not worry about it.

Question: If I need 589mm, 780mm, Can I?
Answer: Yes, you can, we can offer you, we are manufacturer, we can customize.

Question: I need 1u(0.001mm) and 1200mm, Can I?
Answer: Yes, you can, we can offer 1u(0.001mm) and 50-3000mm linear scales, please contact us first. Needextra fee.

Question: If the goods damaged in delivery, how should I do ?
Answer: When we send you, we checked carefully. If damaged, do not make dispute or negative feedback. Please contact us first, send pictures or video. We wil help you fix this problem, help you repar or send replacement. We will help you when the order finished.

Question: How to install DRO or Linear scales?
Answer: We will send you English user manual in package.

Anyway, if you have any questions, contact us first. Please. You are satisfied with our products, please leave the 5 stars, thanks, if not, we will do our best.
