CNC Router mach3 3 Axis Kit, 3pcs TB6560 driver + 5 axis stepper motor controller + 3pcs nema17 1.8A motor + 24V power supply

CNC Router mach3 3 Axis Kit, 3pcs TB6560 driver + 5 axis stepper motor controller + 3pcs nema17 1.8A motor + 24V power supply
  • Продавецwww.flimmer.com
  • Список ценUS $68.96piece
  • Продажная ценаUS $68.96piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (588)

Oписание продукта

The highest 500K stepper motor control pulse output, suitable for most of the machine tool system needs, completely offline control without a computer, U disk running G code, 3 axis . Support standard hand pulse.

Farewell to the era of engraving machine running the computer!!!

The controller = microcomputer + engraving machine (CNC) interface board
Reliability and anti - interference > computer installed MACH3 system + MACH3 interface board



1.1 product description



Feisite NC attention NC industry for 10 years, specializing in a variety of high quality, high reliability of CNC system research, development and production. Can produce commonly used direct current brushless drive, stepper motor drive, single axis to 6 axis linkage CNC system.



DDCSV2 is the 3 axismotion controller which is developed through 4 years of research and development; each position control cycle 4 ms, high control precision. The highest single output pulse is 500KHz, and the pulse width is adjustable. Support common stepper motor and servo motor.



DDCSV2 numerical control system uses ARM+FPGA design framework, ARM to complete the man-machine interface and code analysis, FPGA complete the underlying algorithm and control pulse generation part. Reasonable design, reliable control, convenient operation.



DDCSV2 panel layout is reasonable, the 17 key to complete common offline operation, support for the general purpose of FANUC G compatible.



This manual introduces the operation method of the DDCSV1, the machine tool and the operation procedure of the machine tool. Through a large number of illustrations and examples of the use of the DDCSV1 can learn to use the faster the CNC system.



1.2 product performance parameters



    • Ordinary digital input interface of 16-circuitoptocoupler coupling isolation;
  •

    • Ordinary digital input interface of 3-circuit optocoupler coupling isolation;



    • Output interface of 0-10V spindle control port with analog quantity(can be
      modified as PWM output)
      ;



    • Support the 4 axis stepper motor control, the highest control pulse output of
      single axis is 500KHz
      ;



    • ARM9 master control chip;



    • FPGA core algorithm chip;



    • 4.3 inch TFT screen, resolution 480*272;



    • 17 operation keys (one spare key, no definition);

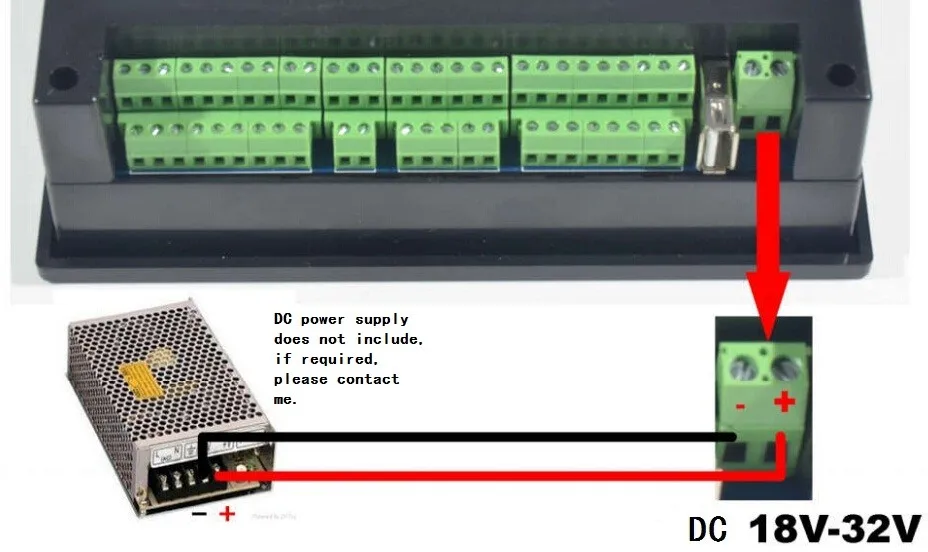

    •  The main control equipment for 18V-32V power input, the current capacity is not lower than 0.5A

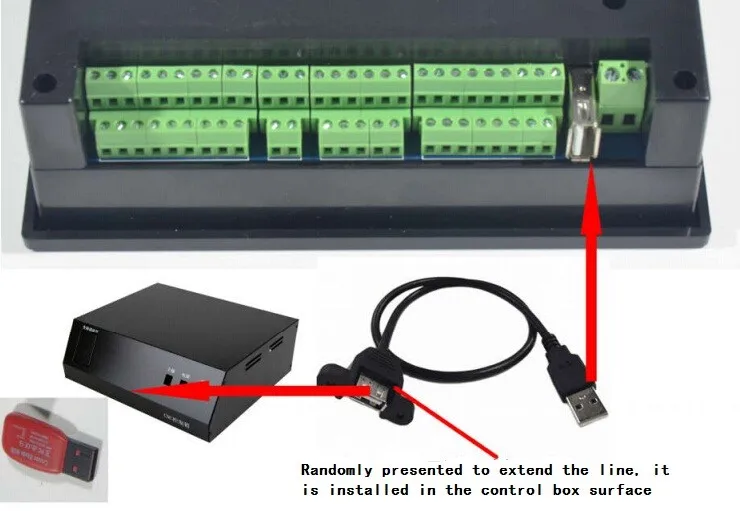

    • Support the USB flash disk to read the G code,and the size of G codefile has no
      requirement
      ;



    • Be equipped with MPG port and support digital display MPG as well as support
      the general MPG in the market;



    • Support the panel key with single-axis manual operation, manual step and
      CONToperation;



    • Support the operation of quickly specify the running position;



    • Support the multi coordinate systems (with automatically saving function in case
      of power cut);



    • Support the function of saving data automatically after power down (press the
      start to automatically save the data in the operation, automatically save the data
      after power down)
  • Please note:
  • 1, the offline system, run the U disc G code, without computer, without other control equipment
    2, control 4 stepper motor operation
    3, with 15 input interface, including the limit stop and other functions, to support the breakpoint continued carving
    4, with 4 programmable output interface, including water cooling, spray cooling and other controlled peripheral.
    5, the spindle speed adjustment VSO mode (0-10V) dual mode.
    6, independent design system software.
    7, USB interface, support common U disk system.
    8, DCDC electrical isolation
    10, the highest 500K stepper motor control pulse output, suitable for most of the machine tool system needs.
    11: support for standard hand pulse, control the feeling is like a hand twisting motor position
    12: support standard G code system, compatible with FANUC
    13: embedded case design, easy to install on any cabinet panel.
    14: integrated power supply stability system, can fight the general spindle motor electromagnetic interference.
    15: high speed output interface chip, provide enough current and pulse frequency signal output.
    16:LPC industrial grade master control chip, improve system stability.

1.3 product appearance and dimensions

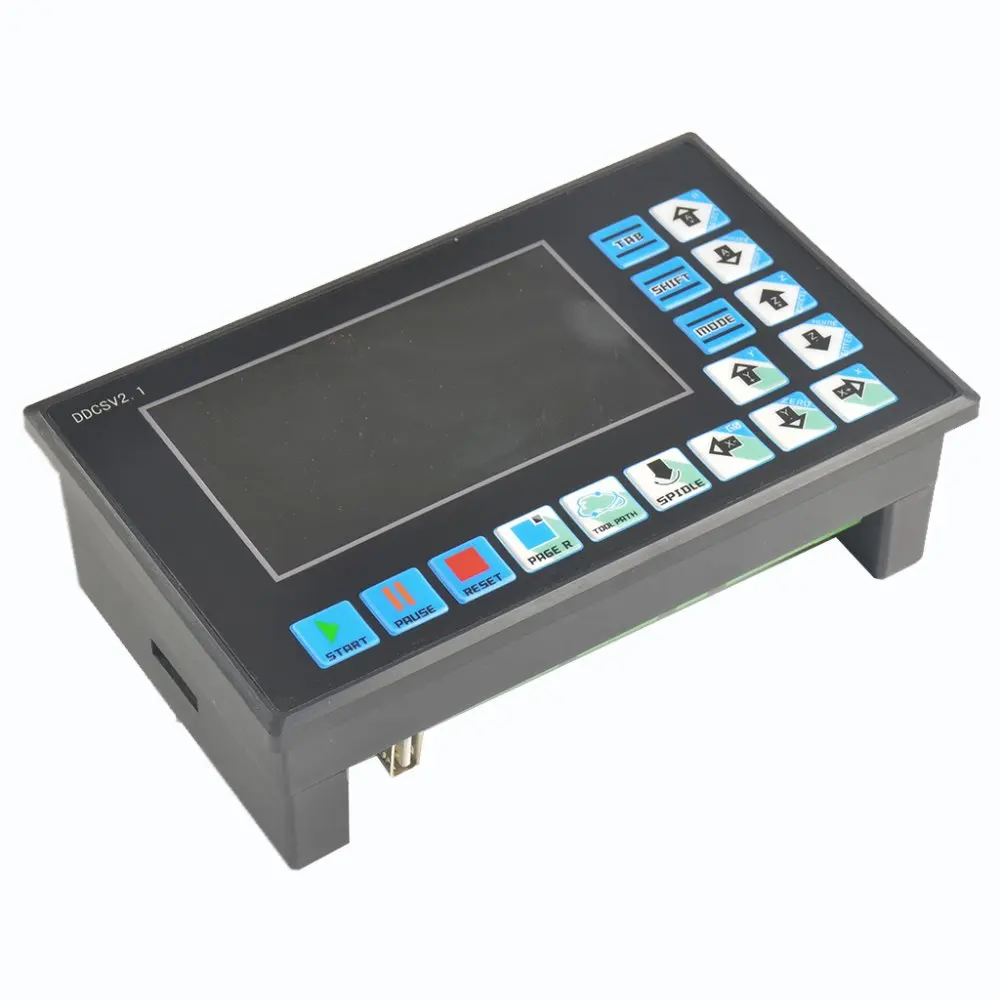

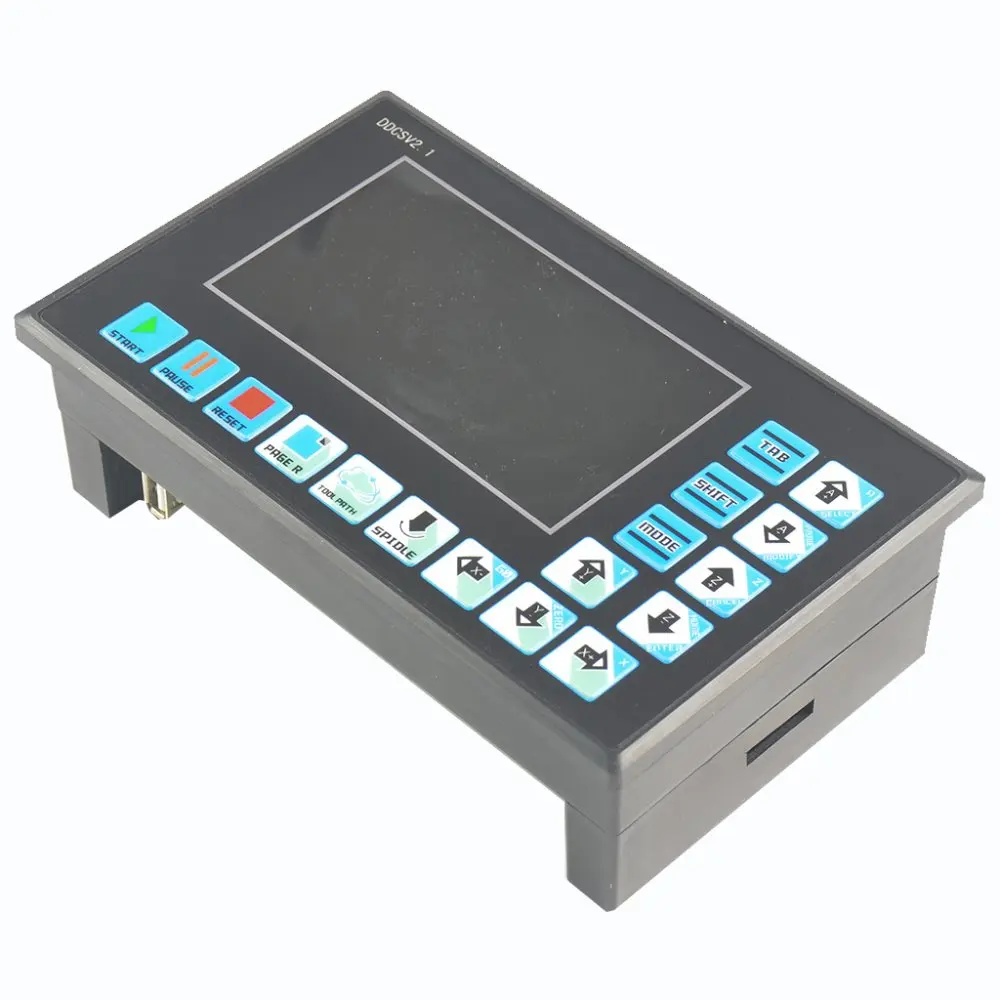

DDCSV2 using embedded shell structure, can make a square hole in the cabinet, and the device is embedded with a square hole, from the inside with 2 locking locking mechanism can be the device fixed on the cabinet, convenient installation. Product appearance size diagram, Figure 1-1 and figure 1-2.



Product panel size is 163mm*102mm*5mm;



The main body of the size of 156mm*93mm*45mm;



The size of the cabinet is 156mm*93mm.

Presentation: 8G, high performance U disk , adapter power supply .

Note: in order to facilitate customs clearance, please leave a message to declare the value, if not the instructions will be completed in accordance with the sale price. Thank you
