FATJAY RadioLink RC4GS 2.4G 4CH Gun Controller Transmitter + R6FG G Gyro Inside Receiver for 4 Channel RC Car

FATJAY RadioLink RC4GS 2.4G 4CH Gun Controller Transmitter + R6FG G Gyro Inside Receiver for 4 Channel RC Car
  • Продавецwww.flimmer.com
  • Список ценUS $41.88piece
  • Продажная ценаUS $41.88piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,9 (648)

Oписание продукта



DC12V 10A 1 Channel remote control Switch, Remote Switch 12V 1CH Radio Switch RF 4 Transmitters 4 Receivers 3411

We default send 315Mhz, if you need 433Mhz pls leave a message under your order, thanks!

39595998555

IMG_0900IMG_0901





Specification:

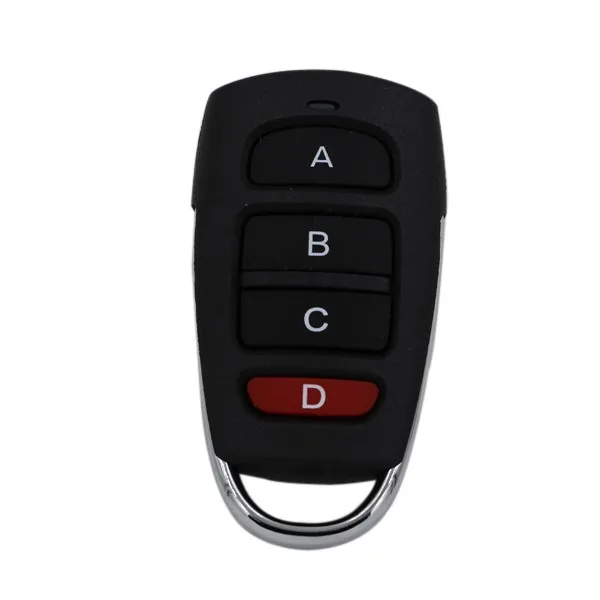

1. Transmitter

Channel: 4 CH
Remote Control Distance: 0-50m
(Please notice that is the ideal distance without any block and signal interfere, it would rise and fall about 10%-50% with the block and signal interference.)
Encode: Fixed code, soldering 2260 2262
Frequency: 315MHz or 433MHz (Default 315MHz)
Power supply: Bulit-in Battery

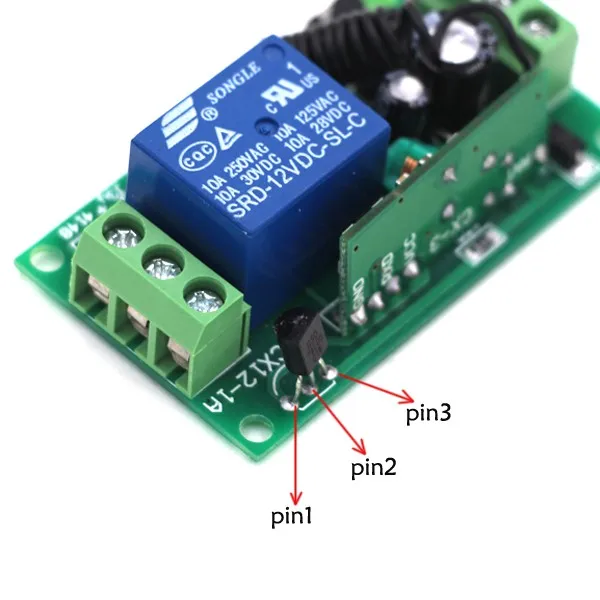

2. Receiver
Channel: 1CH
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Sensitivity:-105 dBm
Operating Temperature:-40‘C ~ +80’C
Size: 55 mm x 24 mm x 17 mm
Output way : Jog/ Self-lock is adjusted

Working/output way:
Toggle/Self-Lock: Press->On; Press again->Off
Press one button for one time is working/ON, press the same button again is stop/OFF.  (1 channel switch(receiver) need 1 button remote control (transmitter).

Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON, loosen your finger is stop/OFF.  1 channel switch(receiver) needs 1 button remote control (transmitter).

(Factory Original Setting is  Momentary, please Choose the function or Change it by yourself.)

Learning and removing method:

1. There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.

2. Press the learning button for one time, the indicator light turns on to off.  Press any key on the remote controller, the indicator flashes two times and off. It means you learn it successfully.

3. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.

4. Delete remote control method: Keep pressing the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

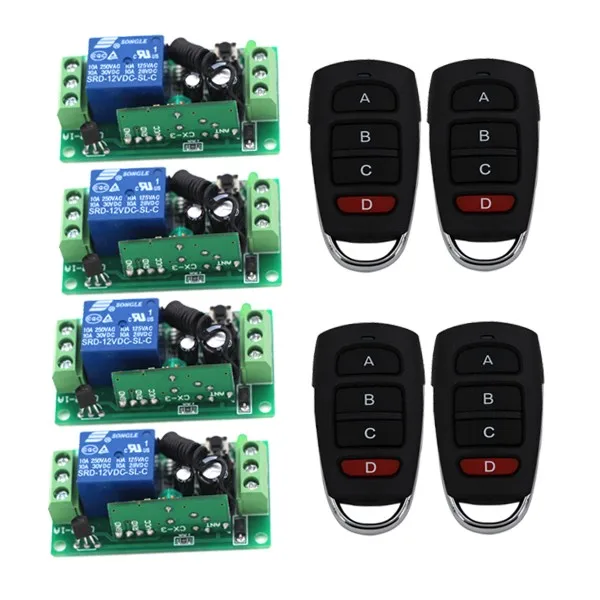

Package Included:
4 x Receiver
4 x Transmitter (Battery not include)
