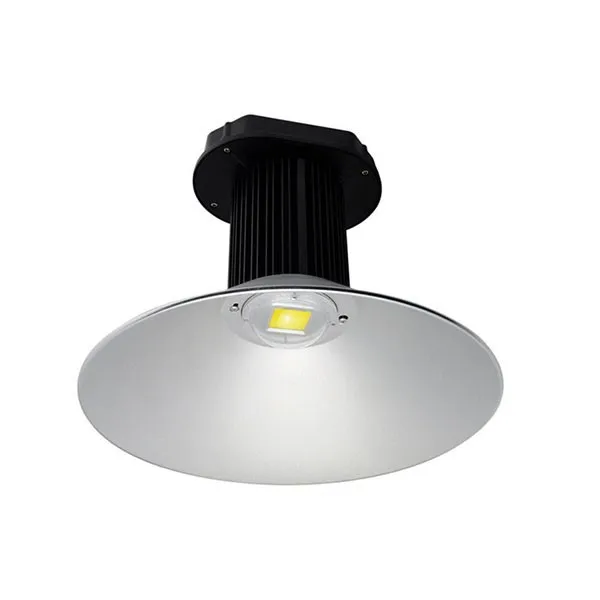

10 Pack 50W 100W 150W 200W led UFO high bay light in industrial lighting outdoor 100 277V LED Spotlight floodlights waterproof

10 Pack 50W 100W 150W 200W led UFO high bay light in industrial lighting outdoor 100 277V LED Spotlight floodlights waterproof
  • Продавецwww.flimmer.com
  • Список ценUS $760.00piece
  • Продажная ценаUS $760.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (371)

Oписание продукта

160-45--5453453--

5453454fff443--


Feature:

Compliance with North American Safety standards, UL,DLC listed.

100W high bay light with 8500lm-9500lm outpot.

Dust proof and IP65 outdoor use, impact resist, no flash, no RF interference, no ultraviolet radiation.

Unique patent heat sink design perfectly combine with power box,  effectively transmit the heat,  thereby lowering the body’s temperature, ensure the life of LED chip and power driver.

The heat sink surface have conducted anodic oxidation anticorrosive process, compact layout and beautiful, corrosion resistant, water proof and dust proof.

Adopt constant current constant voltage power driver(meanwell driver),  apply to wide voltage(AC85V-270V),  overcome the problems like unstable and shaky light,  sound pollution and generating power grid cause by ballast,  avoid eye stimulation and fatigue during the work.

The best way to be used in commercial purpose for Factory workshop,  warehouse,  toll station,  gas station,  book store.


Technical date :


Gross weight: 5.2KG

LED driver: Meanwell driver or high quality waterproof driver

Input voltage: AV85-265V

Frequency range: 50Hz-60Hz

Harmonic distortion: Equal or less than 15%

Power factor: More than 0.95

Power efficency: More than 87%

Working voltage: DC30-36V

LED quantity: 1PCS

LED power: 30w 50w 60w 80w 100w 150w

LED chip: Bridgelux COB or Epistar COB

LED luminous efficency: 90lm/w

Lamp\'s efficency: More than 80%

Illuminancy uniformity: More than 0.5

Color temperature: 2700-3200K; 3900-5000K; 5800-6200K

Light distribution: Symmetric/ Circular light spot

Light desgin: LED+reflector

Working temperature: -40 to +45 degree Celsius

Storage temperature: -40 to +65 degree Celsius

Protection: IP65 and rust-resistance

Power cable: 1mm^2 trifurcating cable

Connection wires: L: live line; N: null line; G: earth line

Certification: CE/RoHS

Lighting angle for option as below:




Installation and packing method:

Installation instructions for high bay light:

1.Tighten the hanging rings by tools.
2.Put the hanging rings into the hook steadily.
3.In order to avoid electric leakage, please seal the wire connection when install.
3.Please do some measures to prevent water leakage when connect to the external
power supply.
4.Abide by local fire protection regulations.
5.Please ask professional electricians to install.


Application:



Epistar or Bridgelux 100w Led High Bay Lights For Exhibition Hall , Stadium , Factory Lighting
