USB CNC Router 3040 Z USB 1500w water cooled spindle CNC Milling Machine USB port, rotary axis cnc engraver

USB CNC Router 3040 Z USB 1500w water cooled spindle CNC Milling Machine USB port, rotary axis cnc engraver
  • Продавецwww.flimmer.com
  • Список ценUS $1262.99piece
  • Продажная ценаUS $1262.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (854)

Oписание продукта



Square rails 3040F USB 4 Axis 1500W mini CNC router for Wood Metal mini milling machine free tax to RU





Introduction

The CNC 3040 Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts.

Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the CNC 3040 is a great fit.

We look forward, CNC 3040F will become your good helper

In addition, it can be upgraded to be installed a rotational axis.

CNC 3040F USB 4axis (4)

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts, stepping motor, spindle Free Warranty



CNC 3040F USB 4axis engraving machine part parameters:

Voltage

  220V / 110V

Spindle motor

  1500W / 80mm / Water cooling

Maximum operating frequency

  400HZ

Radial run out

  0.01 m

Collet type

ER11,1/8"(3.175mm) Collet

Track type

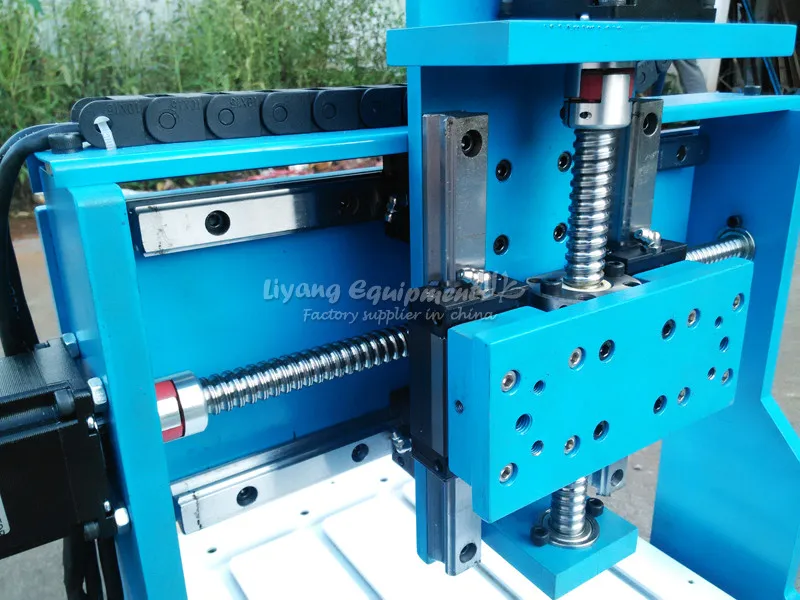

  Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration.

Table

  18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm.

Work table size

  330*540mm

Working stroke

  260*380*120mm

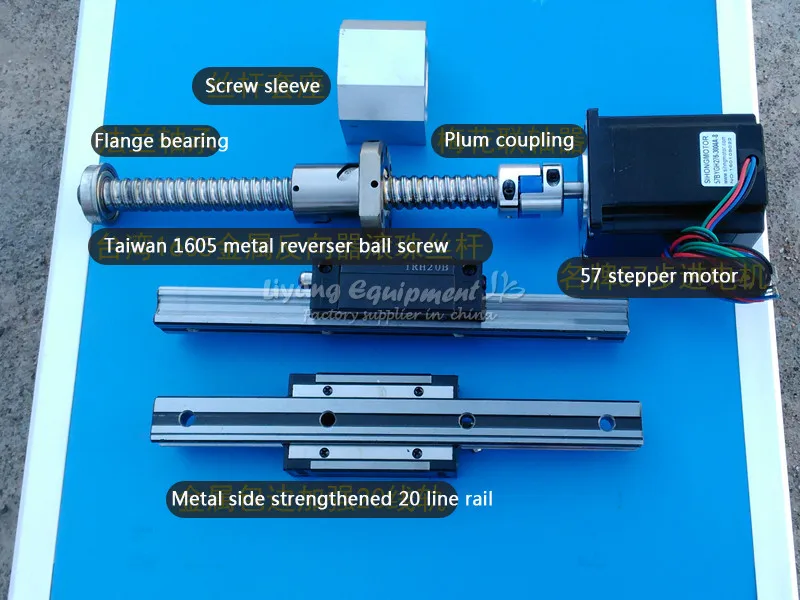

Type of screw

  Ball screw 1605

Weight

  95KG

Package size

  550*660*600mm

Stepper motor and drive

two-phase hybrid stepping motor ,1.8A/PHASE,40N.cm, 8 segments drive.

Maximum operating speed

4000mm/min (Engraving speed :300-3000mm/min)

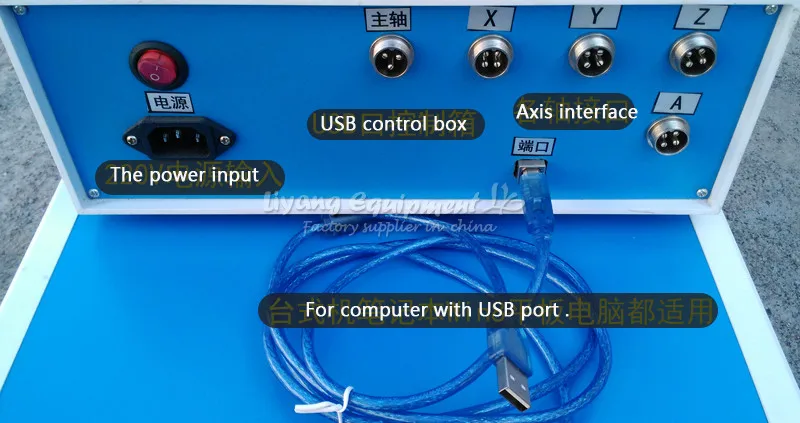

Communication interface

USB port

Software Compatibility

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code

G code/

n

/.ncc/.tab/.txt

Included the 4th axis



The information as below:



Rotation Axis (4th axis) specs:

For three-jaw Chuck, fourth axis and thimbles, precision worm gear reducer 20:1 rotation, adding to the three shafts used on machines, Chuck type model 80, the biggest blessing to 63 mm diameter, maximum turning diameter 140 mm, 57 stepper motor with worm gearbox, torque, suitable for machining hard products, is high-rotation axis. Round three-dimension carving a maximum diameter of 14 cm, model 3040, 28 cm in length, 4060 model 50 cm, 6090 model 80 cm

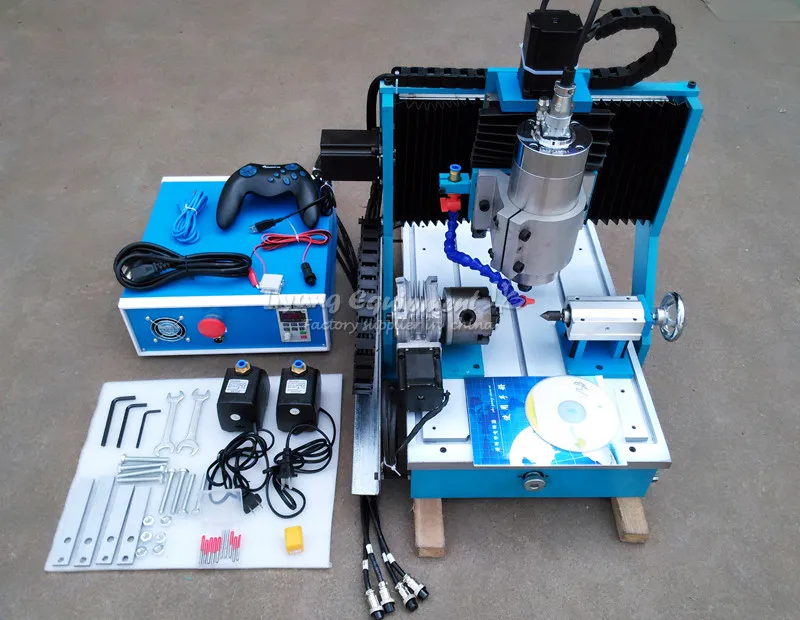

Packing list:

1× CNC 3040 engraving machine

1× Control box

1× Parallel port cable 25pin

1× Power cable

1× Tool box and tools

3× Axis motors

2× Water pump

1× Rotation axis



1× Mach3 wireless handwheel

1× CD of manual and software MACH3

CNC 3040F USB 4axis (5)CNC 3040F USB 4axis (6)CNC 3040F USB 4axis (7)CNC 3040F USB 4axis (9)CNC 3040F USB 4axis (8)CNC 3040F USB 4axis (10)CNC 3040F USB 4axis (11)CNC 3040F USB 4axis (12)CNC 3040F USB 4axis (13)CNC 3040F USB 4axis (14)

About shipping : 3~5 workdays will ship goods after received payment !

1. Ship to Russia , buyers needn\'t custom tax ,all custom tax and fees are paid by seller,goods will arrive buyers\' city within 25~55 days! it has detail tracking informations !

2. For other country,Seller method way means send machine to buyers\' nearest seaport by sea (CFR), about 25~60 days shipping time. it hasn\'t tracking informations .buyers need clearance customs then pick it up from nearest seaport.Pls make sure you can clear customs. if can not clear customs , your Customs will distroy the goods, you have to bear all cost caused by the Customs clearance dealy.

3.By DHL/TNT,about 5~7 day shipping time.after buyer finished clearance custom,they will send to your address. Please make sure the phone number in order information is real.(we also have free tax channel ,if interested ,pls contact me )
4.A request as seller, please write your email address in order information so that we are able to contact you if there is some urgent issues. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
