Oписание продукта

​​Dear Customers,

Please do not arbitrarily upgrade firmware.
Please contact us,if you have any questions.Thank you for your cooperation.



Standard Kit Contains With RFID Card Reader

MF Kit Contains With 13.56MHZ MF Card Reader



Features:
.Multiple hardware protection measure
There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
 .Integration with Other Security Systems
C3-200 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
.Supports different wiegand reader
 The controller support different wiegand format, and can connect to different reader, including ID card reader
.Input/Output Ports to Control Doors
Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
Communication Function
Using either serial or TCP/IP communication, it provides reliable network system
.B/S structure software
It is easy to manage the system by browser from client PC. There is no need to install software on each client.
 .Normal open after first punch card can be setup
 .Real-time Monitoring of Door status
 Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
 .Simple Access Control System Configuration
.Interlock function
 Link different doors with special logic that one door is Open, others should be closed.
.Multi-card operation
 This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
 .Anti-Passback
 .Duress Mode
.SDK available
 The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.




Specifications:

Model: C3-200
CPU: 32bit MIPS CPU
RAM: 32M bits
Flash Memory: 256M bits
User: 30,000
Event Buffer: 100,000
Power / Current: DC 9.6V-14.4V, Rated Max.1A
Reader Port: 4ea (26bit Wiegand, 8bit Burst for PIN)
Communication: RS485, TCP/IP
Baud Rate: 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port: 6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
Output Port:
2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator: Yes, LED indication for communication, power, status and punch card
Operating Temperature: 0°to +55°C
Operating Humidity: 10% to 80% relative humidity non-condensing
Dimension (L*W)mm:
160(W)*106(H)(single board )
345(W)*275(H)*70(D)(with power supply and metal box)
Certification: CE, FCC


Image:











800-1800-2



001



Card reader:
Card Type: Proximity
Card Frequency: 125 KHz
Data Mode: Wiegand 26
ProximityRange: >=5cm
Built-in buzzer
LED indicator: Red, Green
Working current: <= 30 mA
Working Voltage: DC 5-16V, standard 12V
SAmbient temperature: -10°C to 50 °C
Ambient humidity : 10%-90%
Speed: <= 0.2 sec
Punching Interval: < 0.5 sec
Communication Distance: 100 meters
Transmittal Mode:real-time
001003

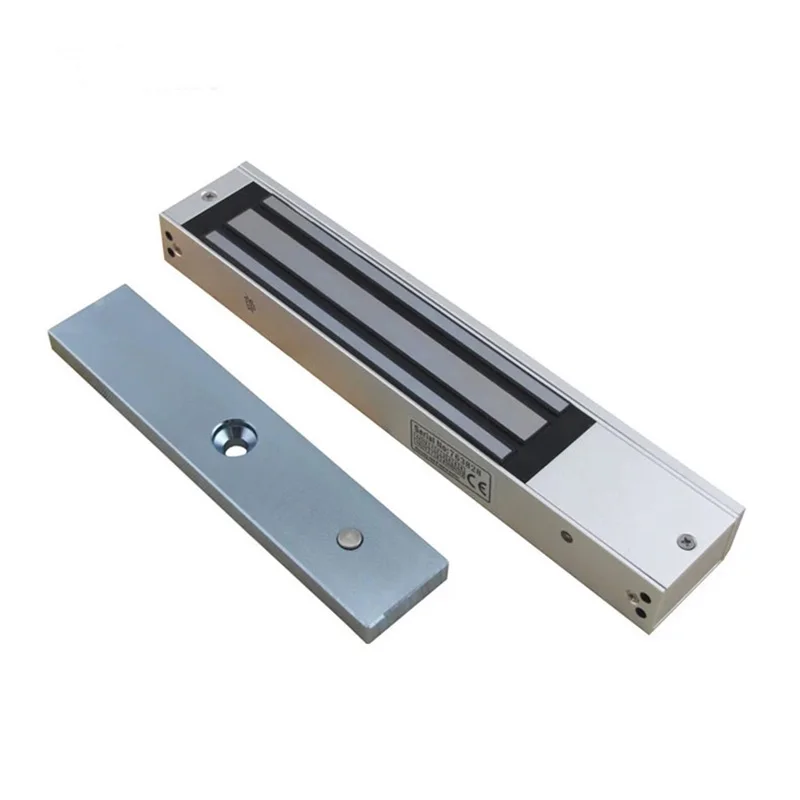

Magnetic Lock:
Specifications:
Holding force: 280kgs
Voltage: DC 12V
Current: 500mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Lock size:250*46*25mm
Plate size: 180*38*16mm

002

001
