Free shipping High precision High sensitivity Pointer Multimeter Ohm Test Meter Analog Multimeter KT7040

Free shipping High precision High sensitivity Pointer Multimeter Ohm Test Meter Analog Multimeter KT7040
  • Продавецwww.flimmer.com
  • Список ценUS $28.49piece
  • Продажная ценаUS $28.49piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (900)

Oписание продукта

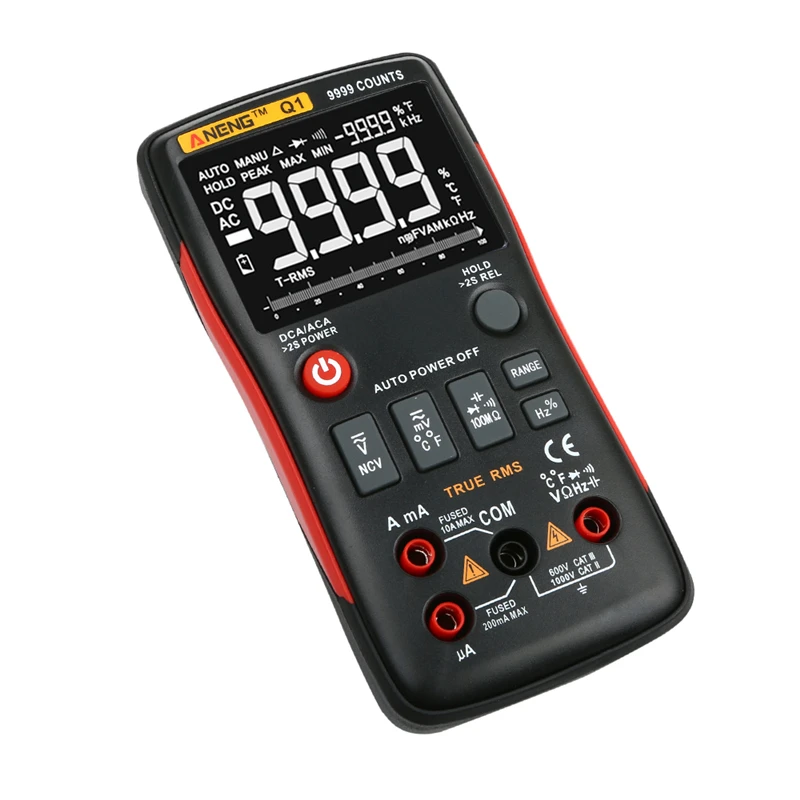

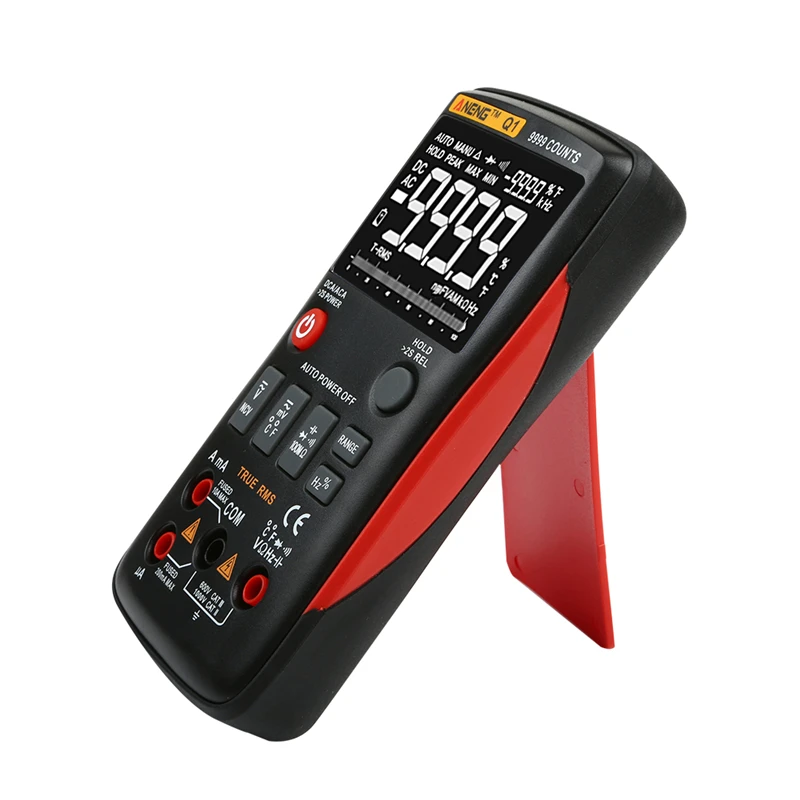

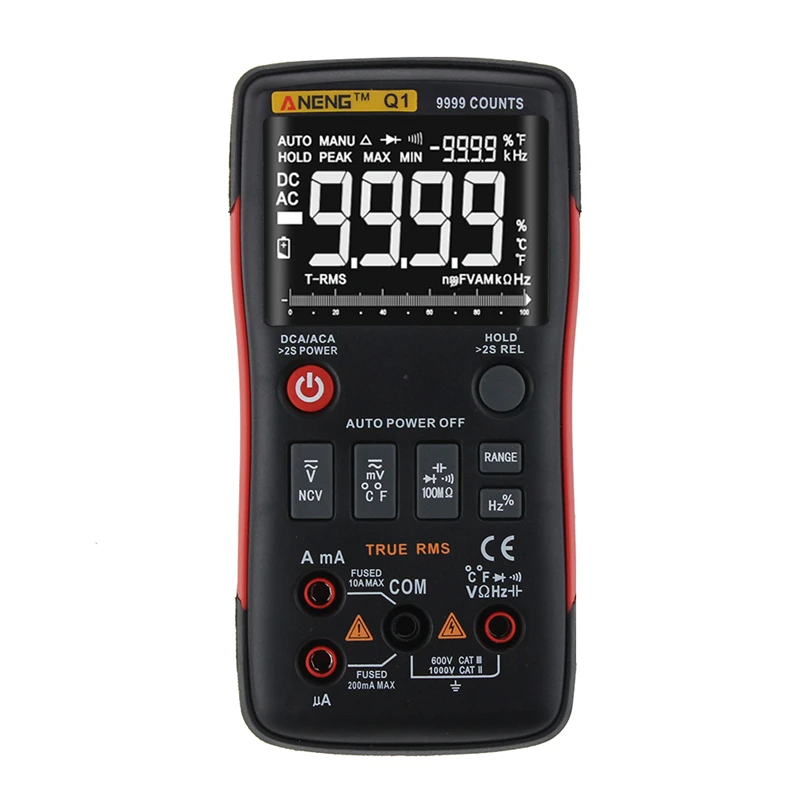

ANENG Q1 True-RMS Auto Button 9999 Counts Digital Multimeter With Analog Bar Graph AC/DC Voltage Transistor Tester Ammeter Ohm
Specifications:
Brand Name: ANENG
Model Number: Q1
Operating Temperature: 0 - 40 ℃
Operating Humidity: ≤75%RH
Storage Condition: -20~60℃
Storage Humidity: ≤80%RH
DIY Supplies: Electrical
Operating Mode: Auto/Manual Ranging
Measuring Inductance Range: no
Measuring Temperature Range:  -20~1000 C/-4F-1832F
Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V
Measuring Current Range:999.9uA/99.99uA/999.9mA/10A
Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/9.999M/99.99M Ohm
Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/5MHz
Display Type: Digital Display
Diode Test: Yes
Continuity: Yes
Duty Cycle: 1%-99%
Sample Rate: 3 times per second
Power: 2 * 1.5V AA batteries(Not Included)


Notes:

1. Do NOT exceed the “maximum value” indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode  Mode,
    the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed  properly;
4. Turn off the product and remove the test leads from the test points before  changing batteries or fuses.
5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.

Packaging content:

1 x Multimeter

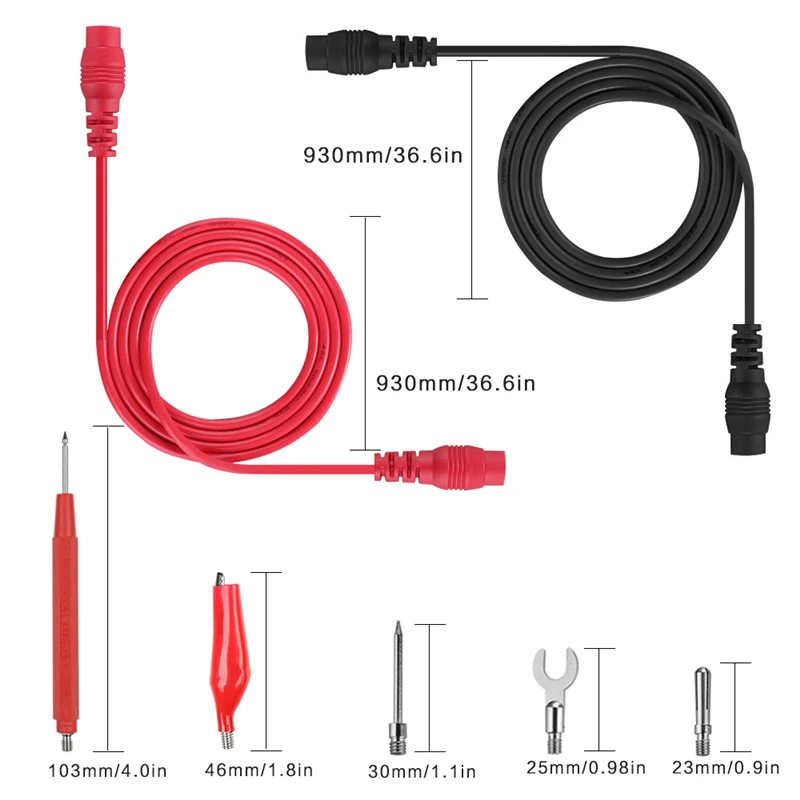

1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag

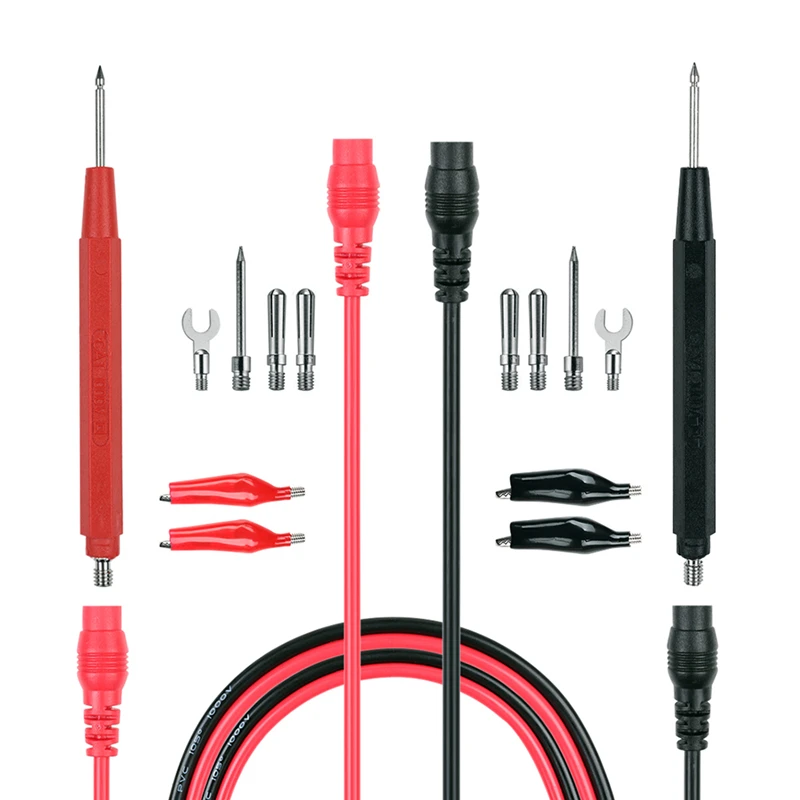

1 x  16pc Test probe
