RFID Keypad Access Control Waterproof IP68 Metal Case 125KHZ ID Single Door Standalone Access Control Wiegand 26 bit I/O F1215D

RFID Keypad Access Control Waterproof IP68 Metal Case 125KHZ ID Single Door Standalone Access Control Wiegand 26 bit I/O F1215D
  • Продавецwww.flimmer.com
  • Список ценUS $23.53piece
  • Продажная ценаUS $23.53piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (215)

Oписание продукта



20 floors lift access control system complete set , incldue:

20 Floors Elevator Controller+power case+ Free rfid reader+ Free 10pcs em card





 What\'s elevator access control?


• Only Authorised people use elevator.
• Secured and safe.
• Faster and easy floor selection with  a card.
• Flexibility to move from floor to floor.
• Controls access / use of elevator by time of day and day of week(e.g. No restriction during
daytime and controlled usage by night.)
• All / selected floors can be access controlled.
• Selected floor can be Deactivated during certain hours. (e.g. during public functions, parties,
etc.)
• Simple electrical interface to any elevator.
• Power saving as un-necessary landing calls are avoided.
• Landing A/C optional
• Suitable for Duplex Elevator Controller
• Recording of elevator usage by cardholder with date and timestamp
• Every Transaction stored with date & time stamp

• Access by Card/ Card + PIN/ finger



Elevator Controller System Introduction:



1 Intelligent Access Control Device in Elevator Interior

    The device is installed in the cab panel. Each elevator needs a reader. Then it has dual functions: single charge and access control. There are a variety of products which can satisfy various needs of different customers.

2 Card Device

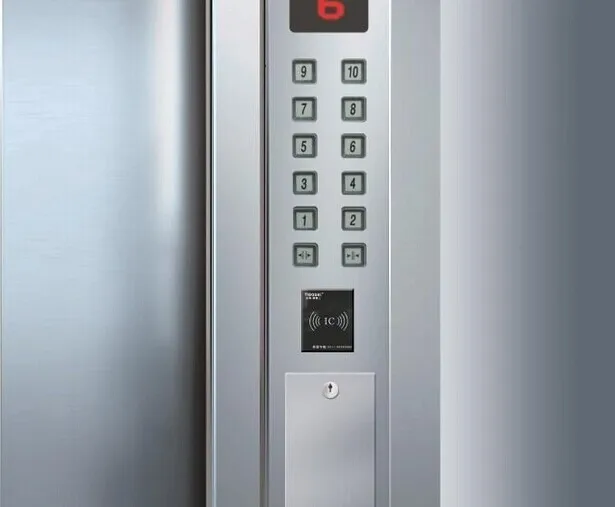

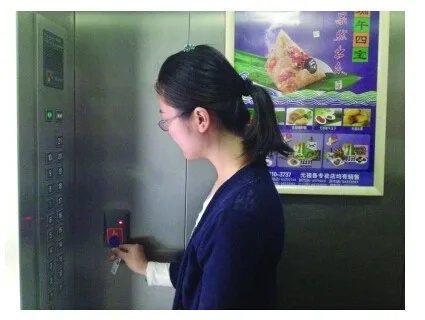

Card device: users insert the card in the card-reading zone which is in the elevator operation panel. Thus, you needn’t consider the distance while reading the card and can activate the elevator exactly the way you want. The card zone is small and takes up less room. You needn’t consider the used room of the elevator operation panel, and you can easily realize the advantages of the card system.

3 Password/ Fingerprint Device

    The Fingerprint elevator management system is specially used for the people who want high security requirements. The leaders use fingerprint, the workers use card, and passwords as a backup. Thus, the elevator intelligence has higher improvements.

4 Remote Device

    A remote device is another upgrade of elevator IC card system. You needn’t swipe card or get close to the elevator operation panel. Just press your remote control, you can use the elevator. Thus, you avoid some troubles when starting elevator by getting close to elevator operation panel.

5 Intelligent Access Control Device out of elevator

The device is installed in the calling board outside of the elevator. Passengers can call the elevator after swiping card by the device. The device stops non-authorized from using elevator, which makes the building safe and energy saying.

6 Intelligent Access Control Devices in and out of Elevator

a Swipe Card by the Device outside of Elevator

b Call Elevator

c Enter the Cab

You can select the floor you registered in the management center after swiping card by device in elevator.

You needn’t swipe card in elevator and select the floor you registered in the management center.

7 VIP Device

VIP device only refers to users with VIP card. When users with VIP card uses elevator, they can be sent to the desired floor directly without stopping. Other users can not make the elevator stop at a floor call when users with VIP card uses elevator. VIP device guarantees the safety and privacy of users with VIP cards and save more time for users with VIP cards.

8 Visitor Device

    Visitor device can work with intercom to solve the trouble of guests that are visiting.




2board

board-2

board-4

board-6



board-7

board-8board-9

5

6

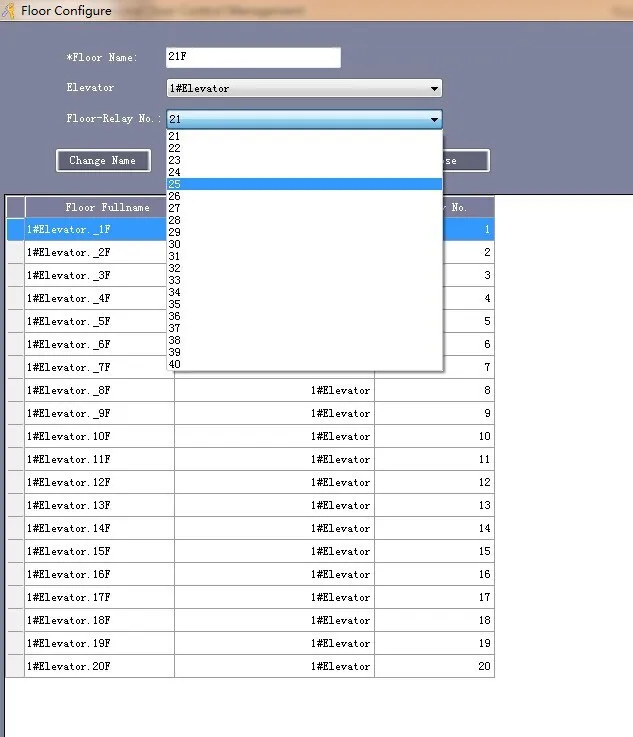

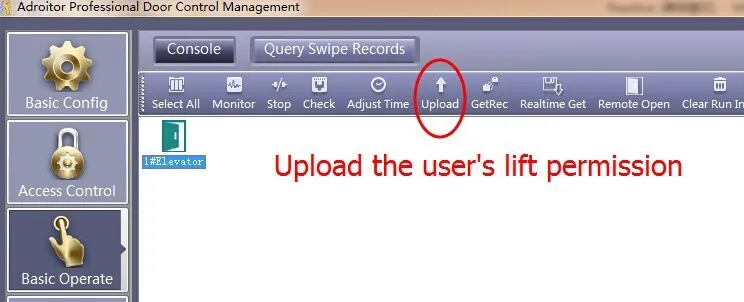

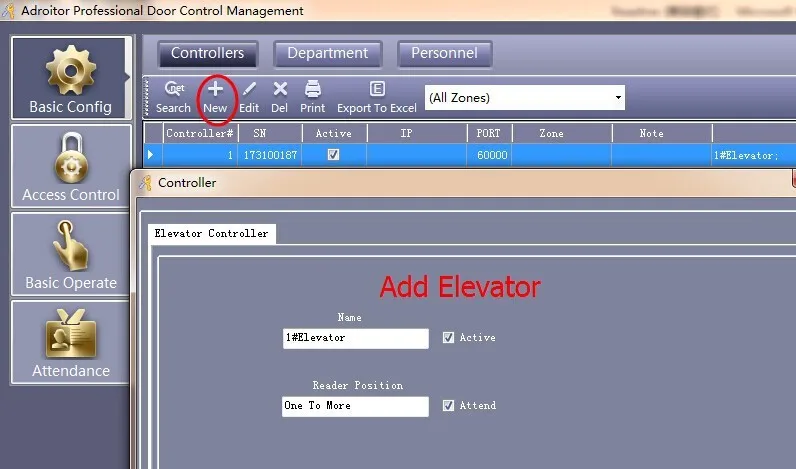

Lift-Access-Control-User-Manual

**********************************************************************************************************************************************************************

How to set

1234



2.12V 5A power case

3.em rfid reader

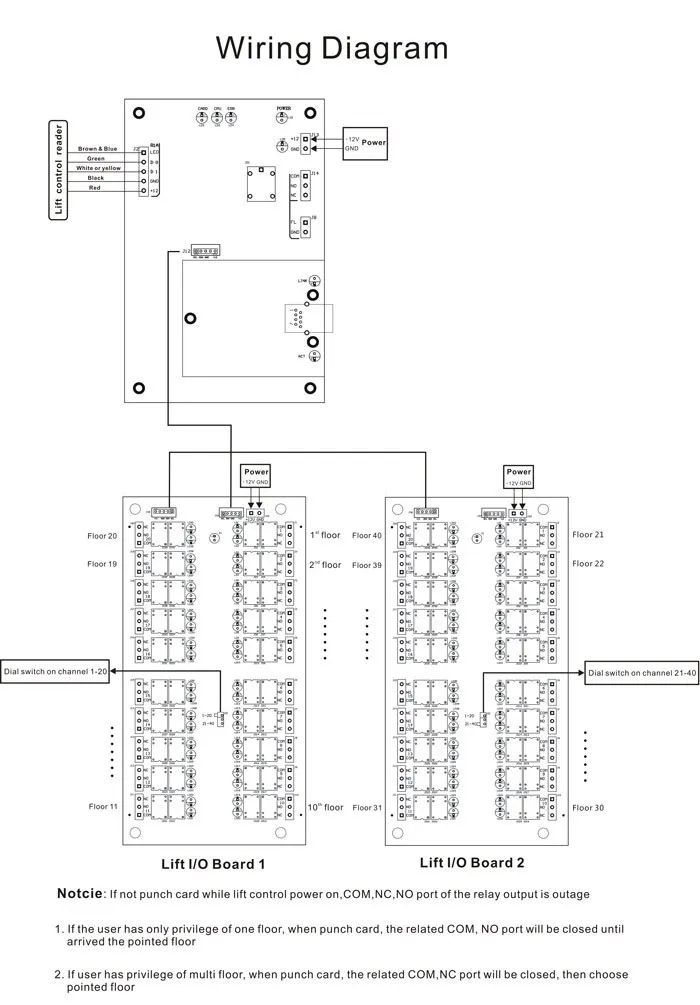

Wire Connection

WG26

Red:DC 9V-16V

Black:GND

Green:D0

White:D1

Blue: LED

Yellow:BEEP

gray :ring

purple:rin

30





4.em card

package:

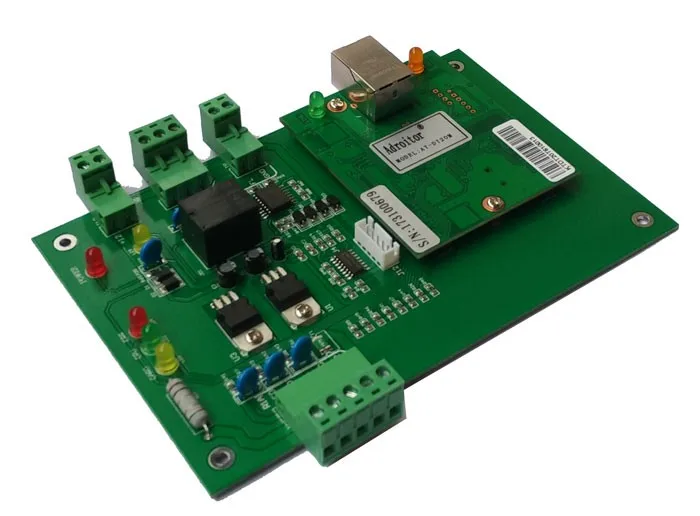

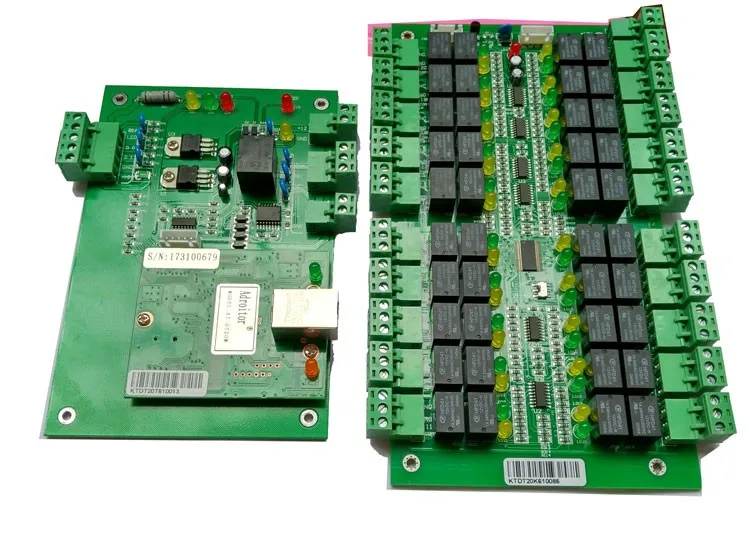

1.lift main board DT20 x 1

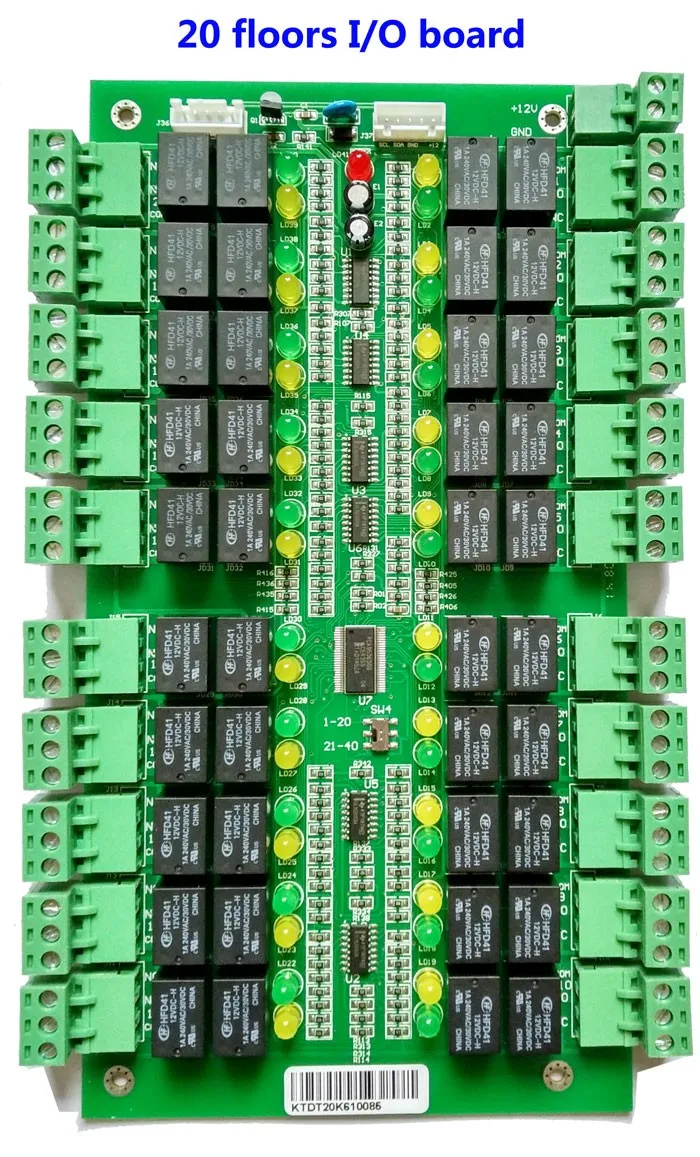

2.lift I/O expansion DT20K x 1

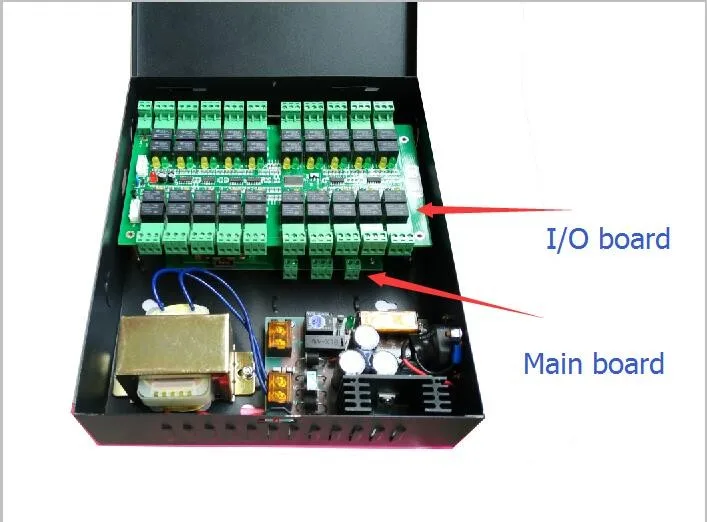

3.12V5A power case x 1

4.RFID reader x 1

5.EM card x 10pcs

6.CD software

7.Manule



Tip: the default  lift access control 20 floor, if you need  to control more than 20 floors, you need a 40 floors set.
