Combo 2 Serial + 1 Parallel IEEE 1284 PCIe Controller card PCI express to RS232 com port + printer LPT port adapter

Combo 2 Serial + 1 Parallel IEEE 1284 PCIe Controller card PCI express to RS232 com port + printer LPT port adapter
  • Продавецwww.flimmer.com
  • Список ценUS $21.38piece
  • Продажная ценаUS $21.38piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (121)

Oписание продукта

Welcome to our Store!


Plug and play,automatically assigns IRQ and I/O address, PCI E to 16 serial of expansion card
Supports PCI-E I/Q sharing

Available to change the port of new serial interface card


  •  PCIe 2.0 Gen 1 compliant
  •  x1 Link, dual simplex, 2.5Gbps in each direction
  •  Expansion bus interface
  •  Up to 25 Mbps serial data rate
  • 16 multi-purpose inputs/outputs (MPIOs)
  • 16-bit general purpose timer/counte
  •  Sleep mode with wake-up Indicator
  •  Operating temperature range:(–40 °C to +85 °C)
  • 16x Serial (16S) Model
  • Supports 16 independent 9-pin RS232 Serial ports
  • 256-byte TX and RX FIFOs
  • Programmable TX and RX Trigger Levels
  • TX/RX FIFO Level Counters
  • Fractional baud rate generator
  • Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
  • Automatic Xon/Xoff software flow control
  • Multi-drop with Auto Address Detection
  • Infrared (IrDA 1.1) data encoder/decoder

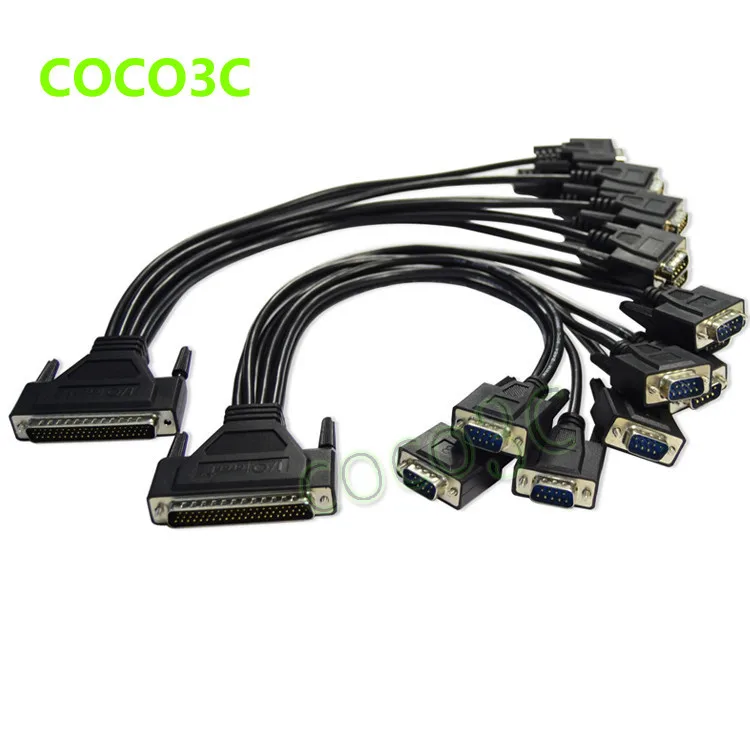

  • Bundle with two 8-port (DB9) fan-out cable

Applied Range

Industrial automation
Power control communication
POS system
Office automation

System supported

DOS, Windows 8.1, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5 operating system

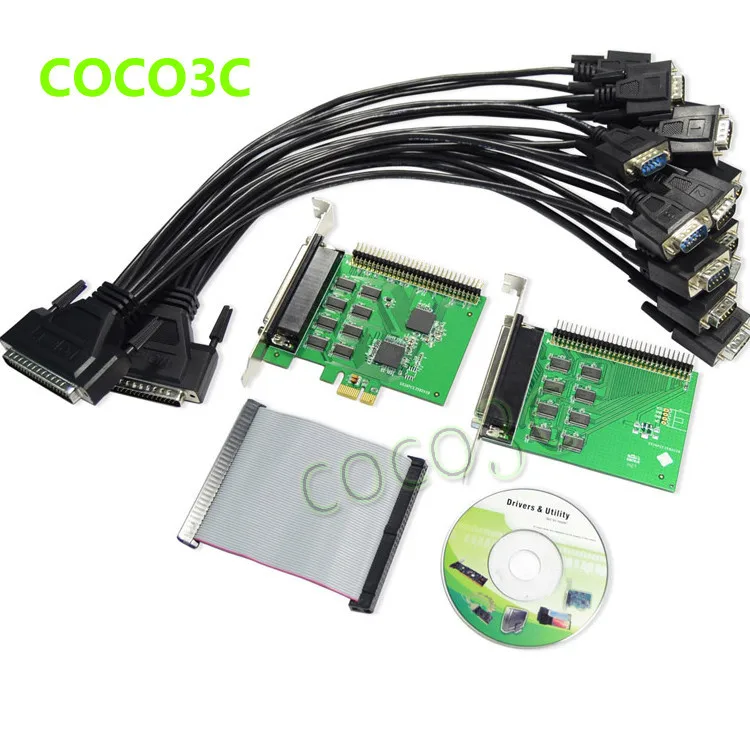

16-port PCIe Card X 1

DB62 to DB9 Fan-out Cable  X 2

30-pin IDE Cable   x1

Driver CD X 1


16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (4)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (5)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (6)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (7)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (9)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (10)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (12)16 Ports Serial PCI Express controller card PCI-e to multi RS-232 DB9 Ports converter for Industrial automation XR17V358 Chipset (8)
