Oписание продукта

11

4_014_024_034_04 4_05
4_064_074_084_094_10

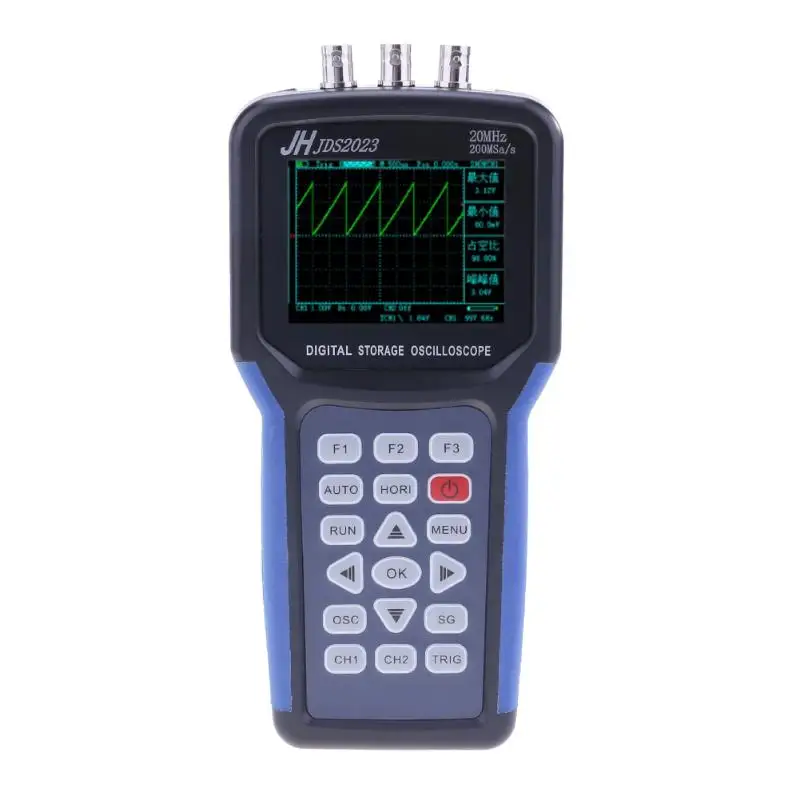

Features:
Ultra-thin design, small size, lightweight, easy to carry,
320*240px color TFTLCD, waveform display more clear and stable.
Low power consumption, single battery can work for 5 hours.
Support USB storage device, waveform can be saved by screenshot.
With edge trigger function, automatic detection support. (50Hz-40MHz)
Support time and voltage cursor.
Support Chinese and English menu display, you can choose English keys.
Display styles: color display, black and white display.
Support automatic shutdown function and power saving mode: time can be set.
Adjustable backlight brightness.
Long standby: single battery can work for about 5 hours.
With signal generator function.

Specification:
input
Input coupling: AC, DC (AC, DC)
Input impedance: 1m 25PF
Maximum input voltage: 40V (probe X1); 400V (probe X10) can measure 220V voltage; (probe X100)
Measuring 2000V voltage
Probe attenuation: 1X, 10X
The probe attenuation coefficient is set T 18.10X and 100X
Sampling method: real time sampling and random sampling
Storage depth: 4K (2K per channel)
Acquisition mode: sampling, peak detection
Vertical system
Vertical sensitivity: 10mV-5V (probe 1X) 100mV-50V (probe 10X) (1,2.5,5 step)
Vertical accuracy: +/-3%
Vertical resolution: 8bit
Bandwidth: 20MHZ
Horizontal system
Real time sampling rate: 200MSa/s
Horizontal scan range: 10nS/div-5S/div
Trigger system
Mode: automatic, normal and single
Type: rising edge and falling edge
Automatic detection: support (50Hz-40MHz)
Mathematical operations: CH1+CH2, CH1-CH2, CH2-CH1
measurement system
Cursor measurement: support time and voltage cursor
Measurement method: Manual
Measurement: peak, peak and frequency
equipment
Screen: 3.2 inches, 16 bit true color, TFT, 320*240
Battery: 3000mA lithium battery (single cell continuous work for about 5 hours)

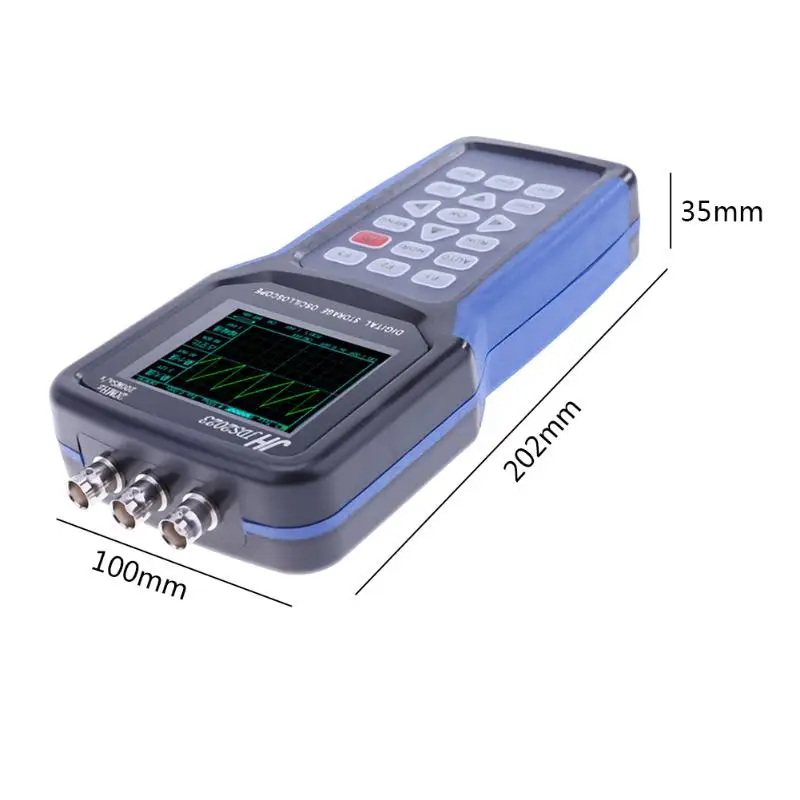

Size: 202*100*35 (mm)
Digital channel: 200M sampling
Signal generator
Frequency: sine wave (1Hz- 5MHz); other (1Hz-1MHz)
Duty cycle: 0%- 100%
Range: 100mV- 4V
Offset: ±(0V-2V)

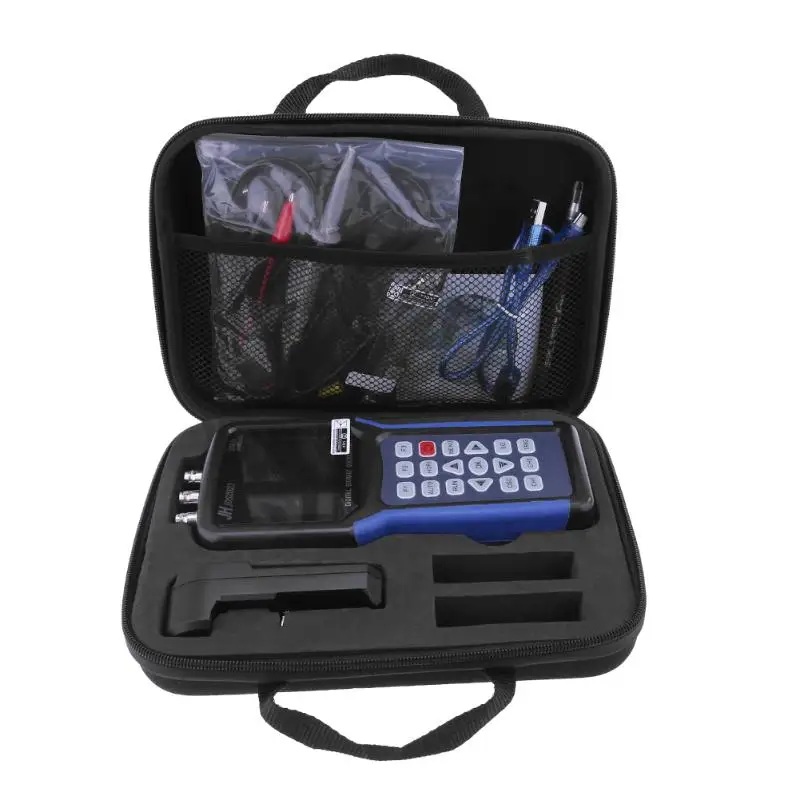

1 X Oscilloscope
1 X Cable
1 X Charger
1 X High Voltage Probe
1 X Pen
1 X Manual CD
1 X Bag
1 X Screen Film
