ELP Super Wide Angle Panoramic 180degree fisheye Lens Mini 720P IR CUT Infrared Day Night Vision Video Camera Module Board 1MP

ELP Super Wide Angle Panoramic 180degree fisheye Lens Mini 720P IR CUT Infrared Day Night Vision Video Camera Module Board 1MP
  • Продавецwww.flimmer.com
  • Список ценUS $36.13piece
  • Продажная ценаUS $36.13piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (196)

Oписание продукта

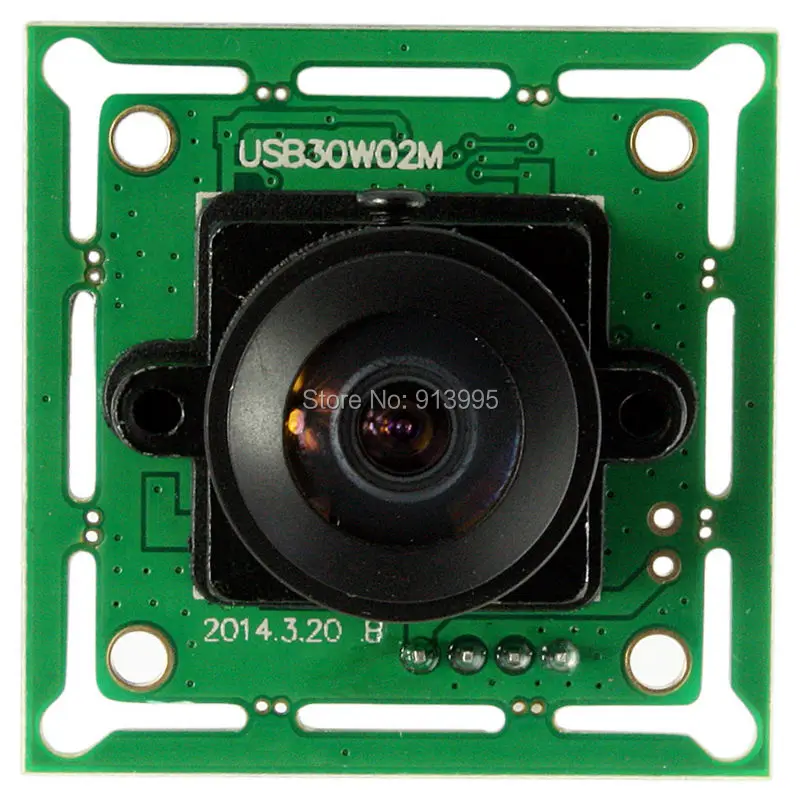

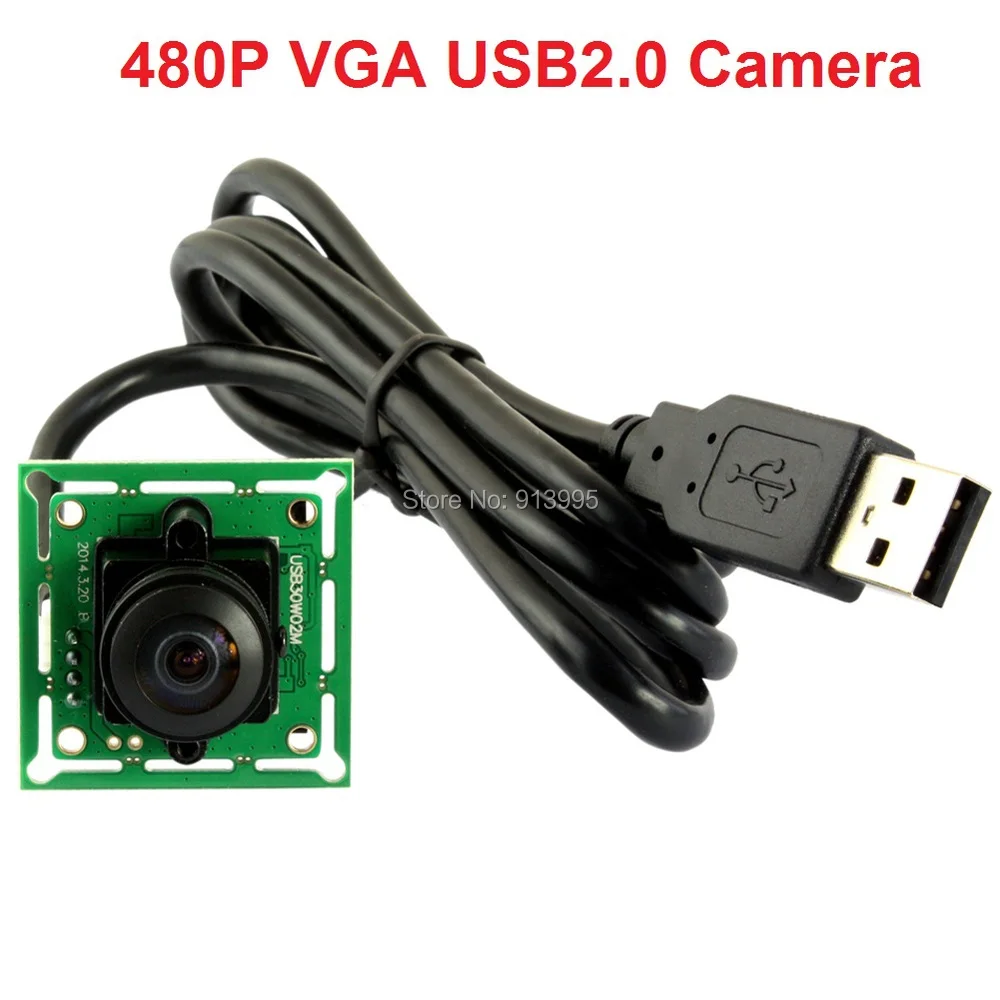

Free shipping 5 pieces 640*480P 0.3mp mini CMOS OV7725 170degree fisheye lens UVC usb camera module for Andrid/Linux/Windows



description


Sensor:OV7725

size: 1/4 inch

Resolution: 640X480 VGA

Picture format: YUY2 and MJPEG optional/USB Protocal:USB2.0 HS/FS

Support free driver: USB Video Class(UVC)1.1

Auto exposure AEC/Support:Auto white blance AEB Support

Effective Pixels:
640 (H) x 480 (V) pixels/480(H) x 480 (V) pixels/450 (H) x 450 (V) pixels/352 (H) x 288 (V) pixels/320 (H) x 240 (V) pixels/288(H) x 288 (V) pixels/240 (H) x 240 (V) pixels
(Other special size resolution is customized, such as 480(H) x 480 (V) pixels)

Performance:
640 (H) x 480 (V) pixels    MJPEG 60fps  YUY2 30fps
480(H) x 480 (V) pixels    MJPEG 30fps   YUY2 30fps
450 (H) x 450 (V) pixels    MJPEG 30fps  YUY2 30fps
352(H) x 288 (V) pixels    MJPEG 30fps   YUY2 30fps
320 (H) x 240 (V) pixels    MJPEG 30fps  YUY2 30fps
288(H) x 288 (V) pixels    MJPEG 30fps   YUY2 30fps
240 (H) x 240 (V) pixels    MJPEG 30fps  YUY2 30fps

Adjustable parameters:Brightness/Contrast/Color saturation/Definition/Gamma/WB

voltage: DC 5V/ current: 120mA/ work temperature:DEGREES(-20~70)/Size:32x32mm  26x26mm

Support OS:WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above


Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.



 display

IMG_9573IMG_9572IMG_9563IMG_9577IMG_9567IMG_9571
