PCIe Combo 2 Serial + 1 Parallel IEEE 1284 Controller card PCI express to printer LPT port + RS232 com port Adapter

PCIe Combo 2 Serial + 1 Parallel IEEE 1284 Controller card PCI express to printer LPT port + RS232 com port Adapter
  • Продавецwww.flimmer.com
  • Список ценUS $20.41piece
  • Продажная ценаUS $20.41piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (630)

Oписание продукта

Welcome to our store! In here,new item,good price,crazy sales promtion aperiodically,constantly wonderful !!!

The PCIe 2 Serial Ports + 1 Parallel card expands your system by two serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

Chipset: WCH382

Interface: PCI Express
                2 X DB9 Serial Port

                1 x DB25 Parallel Port

  • Fully Compliant with PCI-Express Base Specification, Revision 1.0a
  • PCIe Multi Function Peripheral Controller with x1 Lane Interface
  • Support for D1, D2, D3hot and D3cold
  • Supports PCIe Power Management
  • Serial Ports:
    • 16C450/550/Extended 550 Compatible UARTs
    • Supports RS232, RS485 & RS422 Modes
    • Bi-directional Speeds from 50 bps to 16Mbps/Port
    • Full Serial Modem Control
    • Supports Hardware, Software Flow Control
    • 5, 6, 7, 8 and 9-bit Serial Format Supported
    • Even, Odd, None, Space & Mark Parity Supported
    • Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
    • On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
    • Supports Remote Wake-up and Power Management Features
    • Serial Port Transceiver Shutdown Supported
    • Support Slow IrDA on All Serial Ports
  • IEEE 1284 Parallel Port:
    • Multi-mode IEEE 1284 Compliant Controller (SPP, PS2, EPP, ECP)
    • Faster Data Rates up to 1.5Mbps for Parallel Port

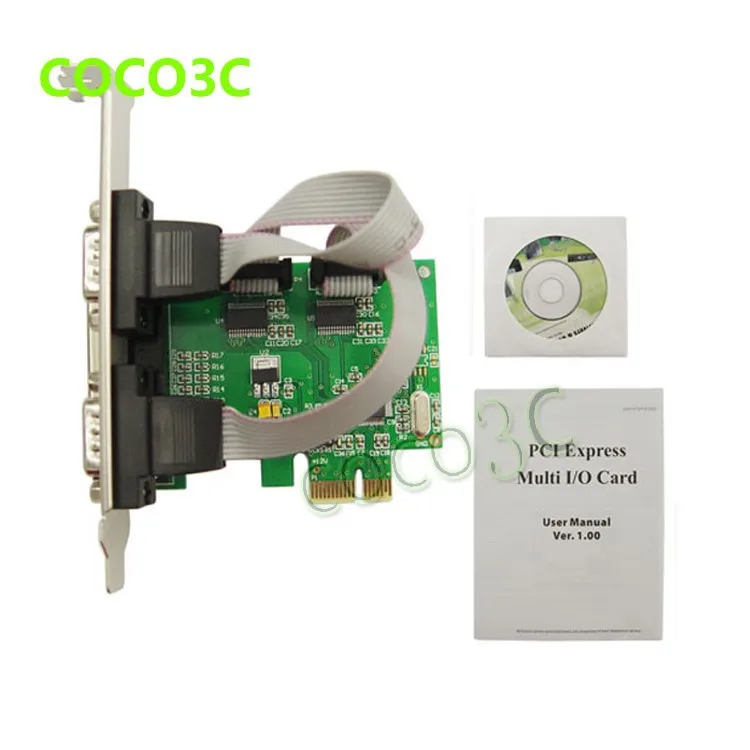

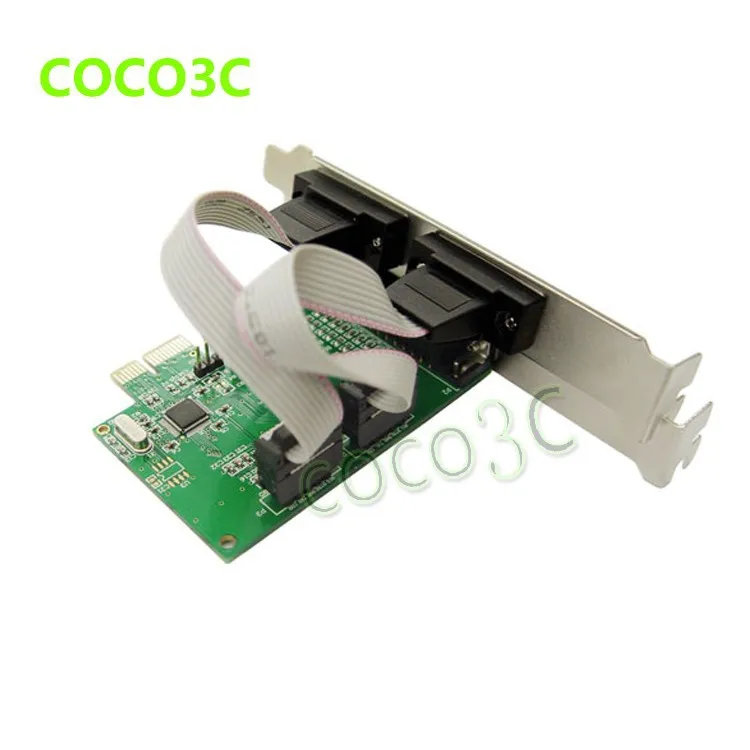

2S/1P PCI-Express Serial & Parallel Card

Parallel Port Bracket

Driver CD X 1

General manual X 1
