Oписание продукта

4G+WIFI+GPS, 4Ch Bus 1080P Video Recording Camera System DVR

Please note: Exclusive Agent Selling In North American.  Please don\'t order online if you will use this In Norh American.



Package includes:

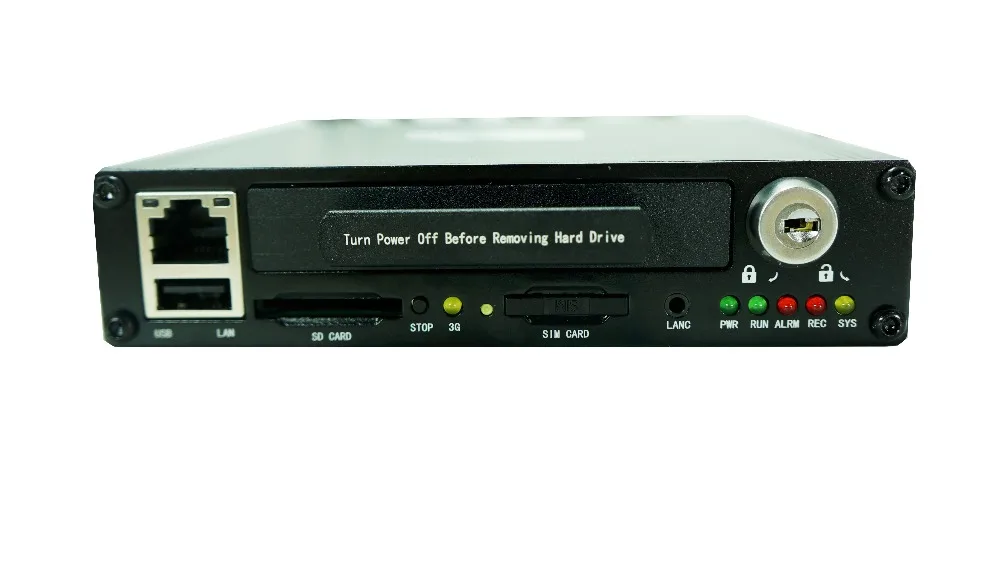

  • 1* 4CH HD Video Recorder ( Support GPS + WIFI +4G )
  • 1* Lock Case
  • 2* lock case key
  • 2* Wifi antenna
  • 1* signal cables
  • 1* power cable
  • 1* GPS receiver
  • 2*  9M HD Extend Cable
  • 2*  6M HD Extend Cable

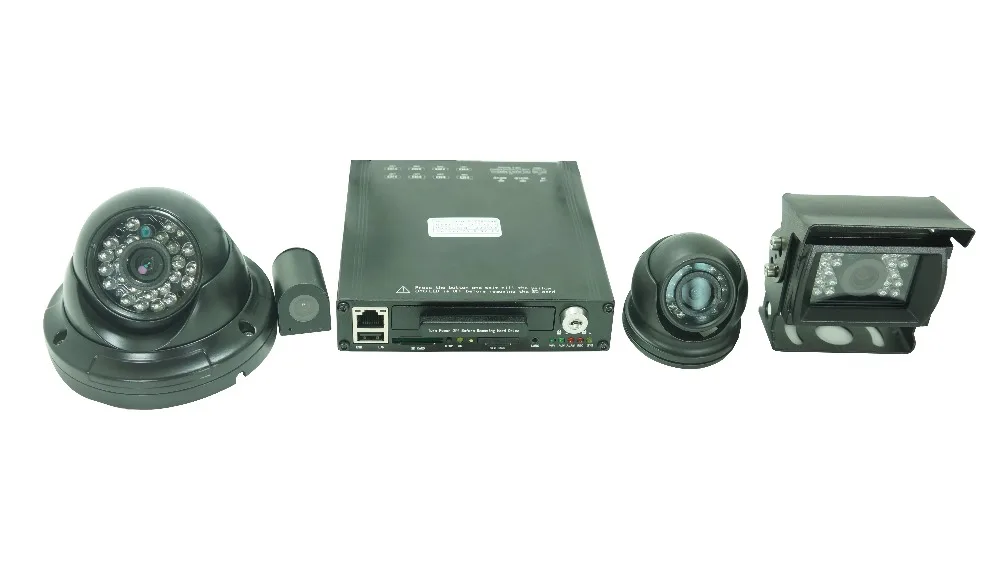

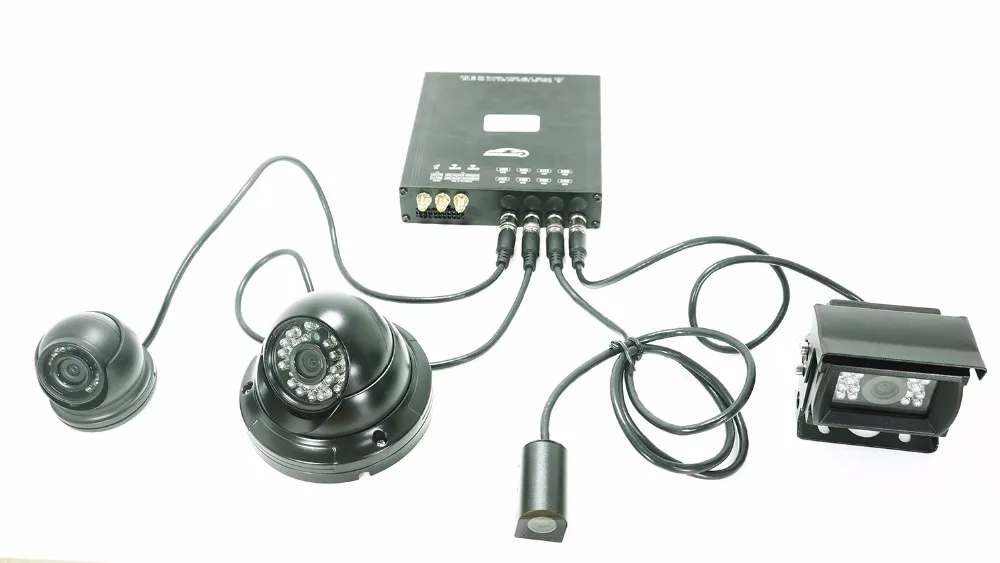

  • 4* 1080P FHD camer  ( Default : 1pcs Dome Camera,  1pcs Rear-view Camera , 1pcs Mini Dome Camera,  1pcs Mini Camera

Specifications

The HDVR series mobile digital video recorder is a compact, full-featured H.264 1080p/720p recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.

1

The HDVR system, used in conjunction with the cameras, records up to four channels of full-motion video and audio data to a Class 10 (minimum) SD card. The firmware-driven menu system provides a simple method for configuring the unit’s operation as well as searching for and viewing previously recorded AV records.

*Embedded operating system, assuring reliability and system integrity.
*Records up to four channels of full-motion color video with corresponding audio tracks.
*H.264 High Profile video compression.
*Total Record resource up to 120 1080P frame/second.
*Lockable security enclosure.
*Front panel USB2 port for recording to a flash card as an optional storage device.
*Ignition sense that provides DVR power-on in recording mode when the bus is started.
*Power-off delay record when the bus is shut-down with operator-selected delay times.


GPS Time Synchronization & Time Zone
*Synchronize the DVR system time with GPS automatically
*Support All Time Zones Worldwide
*Support DST (Daylight Saving Time)



Recording mode
*Continuous record.
*Support schedule recording.
*Support alarm recording.
Speed and Vehicle status recording
*Record vehicle speed and car id with audio and video.
*Support 5 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc.
*Over-speed alarm and trigger recording with separated files
G-Sensor
*X, Y, Z axis accelerometer
*Recorded G-Sensor Values can provide reference of data analyzing when accidence happened
*Combined Recording can be triggered when G-Sensor values go beyond threshold




*H.264 High Profile video compression, real time recording 1080p30, 720p30 and 540p30 for each channel. Frame rate adjustable for each channel.
*Audio compression:16bit 48KHz AAC codec. This codec offers high compression with high quality audio.
*1080P resolution for each channel, which means each channel support 1920x1080 @30fps.
*Support 4 channel real time 1080P video and 4 channel audio recording.
*Real time live HD video and audio through WiFi, support Windows, Android and iOS
*Recorded HD video and audio real time playback over WiFi

Model: AUTOPVISION HDVR004

System:
Operating System: Linux 2.6
Start up Time:  <20 seconds (From power on to recording)
Operator Interface:  English / Simplified Chinese/Russian
Storage:SD Card (up to 128GB, The package does not include a memory card)
Video System:  H.264 Main/High Profile, HD 1080p30/720p30/540p30 Recording for
each channel
Voltage Input / Output: Input: 8 V ~ 32 V DC, Output: 12V/1.5A (4 channels)

Video;

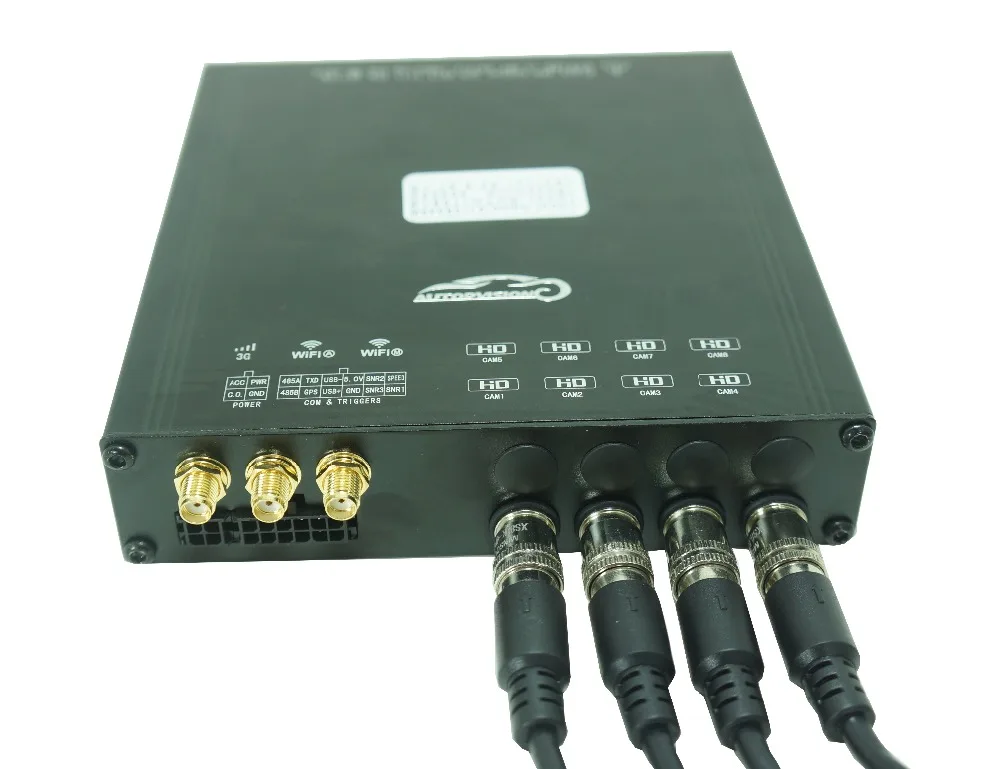

Video Input: Maximum 4 x 1080p/720p camera inputs
Video output: Note book/iPhone/iPad/Android Pad/Android Phone
Preview: 1 image / 4 images
Standard Stream: ISO 14496-10
Recording Resolution: Selectable (1920x1080, 1280x720, 960x540)
Recording: Supports normal, schedule, alarm recording and continuous
Video Compression: H.264 (High profile up to level 4.1)
Max fps (total): 120fps@1080p

Audio
Audio Input: Build in Camera
Audio compression: AAC (16bit, 48KHz)

Interface I/O
LAN: 1(RJ-45) 10M / 100M Ethernet port
USB: Supports USB 2.0 for U-Disk recording
Serial: RS-232×1

Network
WiFi: Build in 802.11b/g/n AP, speed up to 300Mbps
Protocolo: TCP / IP
Communication: 3G/EDGE/GPRS/CDMA (Only for HDVR004GW)


Alarm & Sensor
Inputs: 3 Alarm input, 1 speed, 1 ignition, 1 Panic button, G-Sensor
Outputs: 1 Beeper, Alarm LED, Email
Multi-mode:Activation by video loss, maximum permissible speed, Collision, SD space, Video Motion, etc..


Power Supply
Ignition key: Recording starts when ignition is on, stops with delay time when
ignition is off.
Power Consumption: Average 2.0W (with SD and without providing power for the
cameras)
Physical Characters
Dimension: 12cm x 9cm x 2cm (4,75 "x 3,5" x 0,8 ")
Weight: 0.57kgs


Others
Backup: By WiFi (300Mbps, Actual download speed up to 150Mbps)
Clock: Internal, permanent calendar, Time sync from GPS (if available)
GPS: GPS/GLONASS module external
Function Dual Streaming: Allows you to configure the frame rate of different transmission
frame rate recording and bandwidth control
Self-protection: Protection against overload, short circuit and reverse polarity
Reset: Option to return to factory default setting
SD memory: Support SD card x 1 (support SDXC, up to 2TB)
LED’s: Indicates Power, RUN, Alarm, Media Access, Recording status,network and 3G
Method of writing and reading of data: Overwrite ON/OFF selectable
Synchronization time: GPS Time Synch / NTP (Network Time Protocol) Time Synch via networking



Environment
Operating Temperature: -30 ~ 60°C
Relative humidity:5% - 95%
Vibration resistance: < 3 Grms
Resistance to mechanical shock: < 1200 Grms


Embedded Software
Config. FPS per channel: allows (1~30fps)
ID records vehicle license
plate: allows
USB: Record
Rename channels: allows
Watermark:fixed
Schedule: Settings hour, minute, 3 time plans per day
Image Playback: Includes date and time, latitude and longitude, vehicle speed, and
vehicle ID plate and name or channel number
Playback Speed: Speed forward 1x ~ 16x


Product Description





1

2

3

4

ABC_0001

ABC_3593



ABC_3602ABC_5010Img15158Img15160Img15166Img15182Img15185

1



2

1. Each camera supports up to 1080p30, bitrate varies from 100Kbps to 8000Kbps. Default setting is 1080p30 with bitrate of 3000Kbps. 1200Kbps is recommended for 720p25. DVR uses inteligent bitrate control to save media space when doing H.264 image compression. If no obvious moving in scope, the bitrate will be reduced to 50%(75% for 1080p) of the set value automatically. For example, if one camera is set to 720p25 at 1200Kbps, the actual running bitrate could be 600Kbps when no obvious movement.

2. Three levels of resolution supported for record: 1080p(1920x1080), 720p(1280x720) and 540p(960x540). If you want record more time with same SD card, you can select 720p or 540p for recording, use lower frame rate and lower bitrate with acceptable video quality.

3. SD card with speed of Class 10 is recommended for high bitrate setting.

4. Estimated recording time with the storage media being used will be shown up under the configuration box. The DVR allows for the customized settings for resolution, bitrate and frame rate on each individual camera. Note: The estimated recording time depends on the complexity and strength of movement.

5. The file length can be optional from 1 min to 4 hours. The size for a single file should not be over 2GB with limitation of FAT32. That means the file size will be limited as 2GB or less to avoid file system error, even it does not reach the set record time (when high bitrate and/or long file length is set).

6. Support 3 record modes: Manual/Auto/Off. Default is Auto.

Manual: Send commands from the page, ie. Mouse click on Start button. Auto: DVR will start recording automatically after it is turned on.



Off: Any camera set with "Off", it will not start to record anyway.

7. Support 3 record modes: Manual/Auto/Off. Default is Auto.

8. Click Start/Stop to start or stop record on each individual camera. Click "Apply" to have the setting change(s) take effect.hoose ”RECORD” to enter it sub-menu;



3



1. Click CAMx to adjust each camera\'s brightness, contrast, audio volume, and other settings.

2. Max 12 characters are limited for each camera title.

3. Camera image can be flipped in direction of horizontal or vertical.

4

1. Alarm setting includes 3 external triggers and 1 event button.

2. External triggers can be set with high level active or low level active.

3. Event button can be used to start/stop recording, or trigger an alarm recording.

4. Combined Recording can be triggered when any alarm happens.

5. The image burn in characters can be edited in Alarm OSD menu.

6. Pre-record and Post-record time can be set for alarm triggered record file.

7. Alarm record files will not be deleted even disk gets full and Overwrite option is ON.
