High Precision Easson 3 axis digital readout for lathe and milling machine with 3 pieces DRO scale linear measurement

High Precision Easson 3 axis digital readout for lathe and milling machine with 3 pieces DRO scale linear measurement
  • Продавецwww.flimmer.com
  • Список ценUS $421.80piece
  • Продажная ценаUS $421.80piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (695)

Oписание продукта

Milling Lathe Machines Tool Complete Dro Kit Digital Readout Display SNS-3V with 3 PCS 5u Linear Scales/Encoder/Sensor 2" to 40"
Welcome to  the Manufacturer(Shenzhen) Store of Digital Readout Linear Scales Store
Dear buyer, please note:
  1. The order are one new dro/digital readout SNS-3V(2019), smaller, better performance. And 3 pcs 5u linear scales/encoder/sensor 50-1000mm dimensions. For example: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm. Choose 3 pcs among them, thanks, when you choose, leave the message, thanks.
 2. We can offer you other styles, contact with us, please. If you order travel length 200mm, 300mm, 500mm, the total length are 340mm, 440mm, 640mm, hoping you can know it, thanks.
 3. The price is not included the duty/tax/Customs clearance fees, hoping you can know it, thanks. We are factory, we can offer good price, good quality. If you order only one 3 axis dro, please confirm your linear scales can work with our 3 axis dro, thanks.

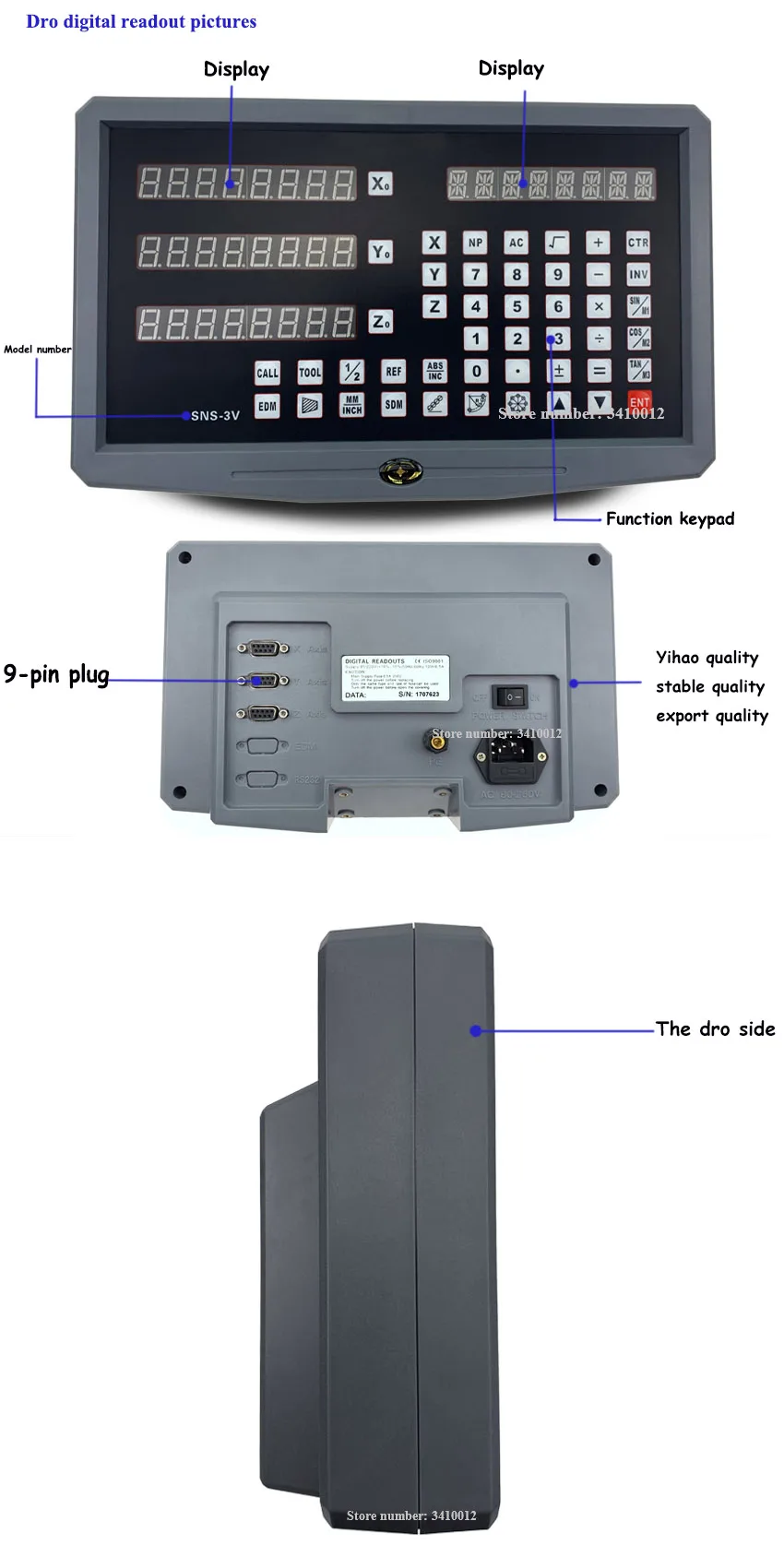

Dro digital readout functions

1:zero clearing
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:vibration filtering
21:Radius /Diameter fucntion
22: Lathe function
Dro digital readout parameter
1.Voltage Range: AC 80V~250V/50HZ~60HZ
2.Acceptable Signal: TTL( we can offer you EIA-442, when make order, leave the message, thanks)
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.
1. It is new 3 axis dro SNS-3V(2019)smaller, better performance. Take less space on your machines.
2. We are factory, price and quality are good, can quick solve your problem, saving much tims.
3. can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
4. We offer different type plug suite for different countries if need.
5. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

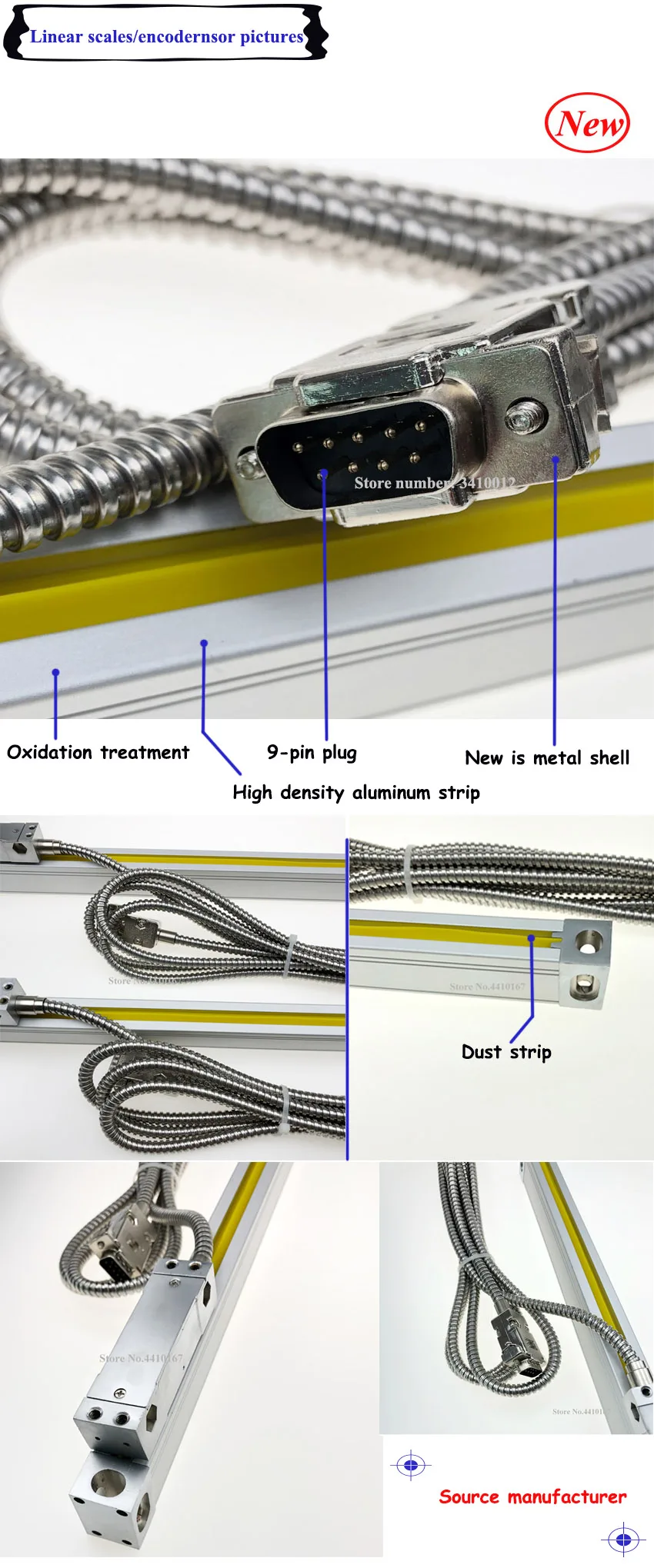

Linear scals/encoder/sensor parameters
1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 140mm (0-1140mm)
3. Plug: DB9
4. Resolution: 0.005mm(5u), {we can offer you 1u(0.001mm), 0.5u(0.0005mm), need extra fee.}
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)

7. Cable length: 3 Meter

8. Normal size: 22*34

9. Slim size: 20*29(Need extra fee)

The Signal of  Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor

Pin 2  Black   0V
Pin 6  Green   A
Pin 7  Red      5V
Pin 8  White    B
Pin 9  Orange  Z










Question: How to make payment?
Answer: You can make payment by Credit card as Visa, Mastercard, Paypal etc. In Aliexpress, there are many ways to pay, do not worry about it.
Question: If I need 589mm, 780mm, Can I?
Answer: Yes, you can, we can offer you, we are manufacturer, we can customize.
Question: I need 1u(0.001mm) and 1200mm, Can I?
Answer: Yes, you can, we can offer 1u(0.001mm) and 50-3000mm linear scales, please contact us first. Need extra fee.

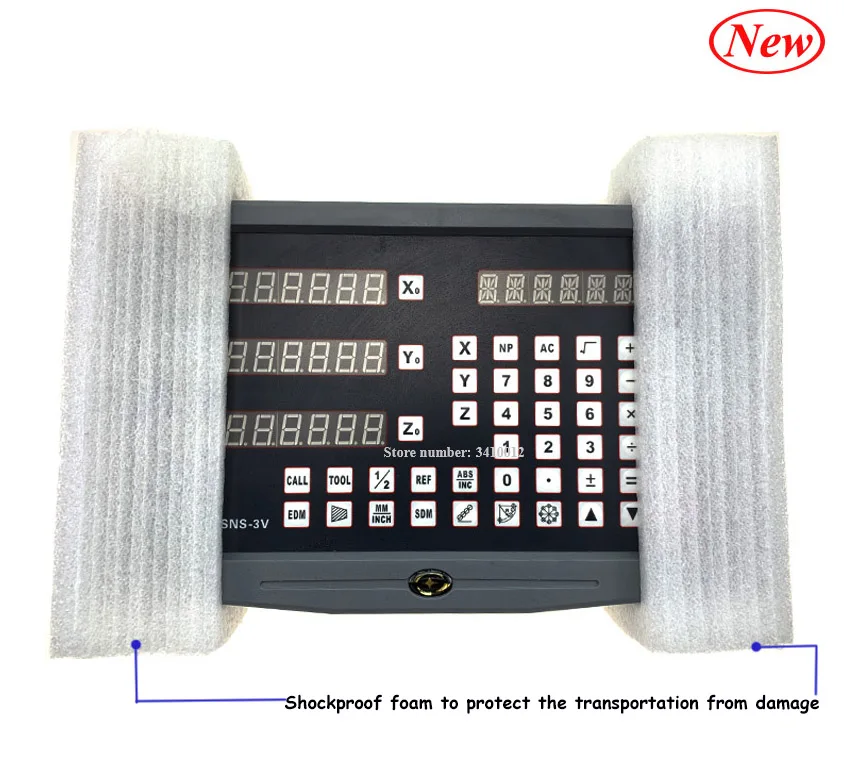

Question: If the goods damaged in delivery, how should I do ?
Answer: When we send you, we checked carefully. If damaged, do not make dispute or negative feedback. Please contact us first, send pictures or video. We will help you fix this problem, help
you repar or send replacement. We will help you when the order finished.
Question: How to install DRO or Linear scales?
Answer: We will send you English user manual in package.
Anyway, if you have any questions, contact us first. Please. You are satisfied with our products, please leave the 5 stars, thanks, if not, we will do our best.112827112828
