  100m high precision laser ranging sensor deviation 2mm range finder module serial port module distance measurement

Outdoor lightIn combination with special reflectors more than 20 meters.
Module TXD serial port RXD
Module RXD serial TXD
VCC 3.3V 5V must be burned, is the current increases, the phenomenon is chip fever)
VCC 3.3V 5V must be burned, is the current increase, chip fever)
Using the PC software can easily get the error status of the module, such as measuring distance too tight, measured movements too quickly, or there is no reflection, reflection, such as various error messages,
Objects blocking the laser or lens, you can simulate the fourth error
On the front of the module, one or two centimetres in the block, you can simulate the first error,

As long as the module can return data, response data, indicates the module is OK,
Range when operating current, 120mAIf the laser is not working laser failure
Avalanche driver 110V, if the receiver part of the bad, you are prompted to receive failure
Currently both a hard error, if no data is mostly lines connection problem or software problem, you can try to reset
About precision, you can use the continuous distance measurement mode static measurement, accuracy can look the screenshot below
aeProduct.getSubject()
Parameters:
Measuring range: 0.045-100 m
Resolution: 0.01 mm (0.00001 m)
Measurement accuracy (standard deviation): ± 2.mm (10 m) greater than 10 m formula ± 2+0.05* (D-10), and d is the distance
Distance unit: m
Laser type: 620-690nm
Laser class: class ii, <1mW (B-level security)
Single measurement time: 0.25 seconds
Spot diameter at the distance m: 6mm@10m,30mm@50
Operating temperature: -0~+40 c
Storage temperature: -20~+60 c
Weight: about 60g
Dimensions (length x width xThick):4.8cmX3.7cmX1.8cm
Power supply voltage: DC3v-3.3v
IOVoltage:TTLLevel compatible3v-5vVoltage
**In harsh environments such as:Sunlight is too strong,Ambient temperature fluctuations are too big,Relatively weak reflector,System voltage high/low,Measuring distance is near,The result could be greater errors,Recommended to use with the target in this case reflector**
**Modules use the prohibition beyond the marked electrical range,Does not meet the required supply voltage can damage module,
5vIODirectly set to drive,IfAVROrSTCSingle-chip microcomputer,List of series1KOhm resistor**
Communication interface:
Module communication speeds up to 115k(115200)And can connect to the high-speed system, functional instructions as follows
1.     Opens the laser only, but does not measure,Can be used to target(Laser opens automatically after a timeout to close)
2.      Single measurement
3. the continuous measurement of
4.      Stop measuring






aeProduct.getSubject()

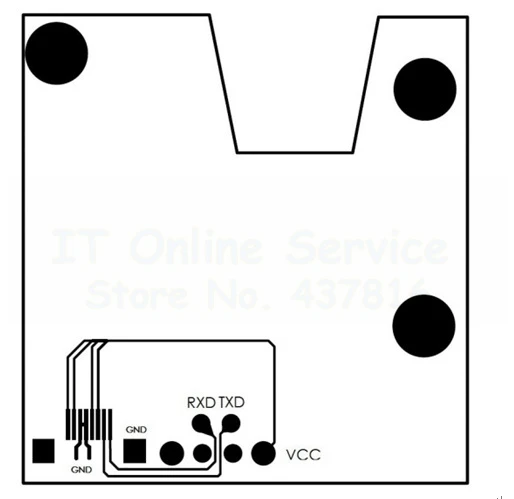

Apparent size and interface:

Port

Voltage

Function

Notes

VCC

3-3.3V

Module power supply

Is greater than3.3V burn

GND



Power supply module



TXD

3v-5v

Module sends the data pin

Can be directly5V single-chip computer connected, push-pull type of IO and current limiting resistors, into the uncertain with 3.3V connected to the microcontroller

RXD

3v-5v

Module receive data pin

Can be directly5V single-chip computer connected, push-pull type of IO and current limiting resistors, into the uncertain with 3.3V connected to the microcontroller

Fpc





0.5mm 8p clamshell

Matters needing attention:

User banning or welding to open the module this module on any device
